Descripción

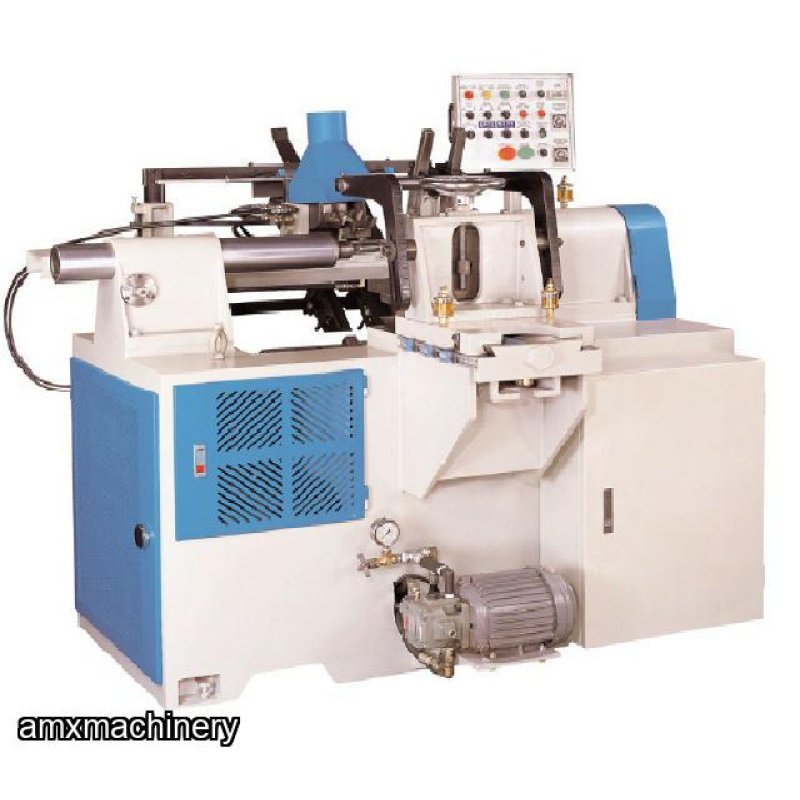

PARTE: 2TA-CL-113 – TORNO COPIADOR - AUTOMATICO – PARTES CORTAS – AMX MACHINERY
Nuevo con garantía
Features:
Use the template to make easy duplicate copy performance.
Specially designed for processing wood under the length of 16-1/2" and diameter of 5-1/8".
Runs automatically continual cycles from feeding to finish.
Variable cutting speed controls and uses hydraulic power to get best driving and cutting force.
Performs exact positioning setting for wood materials and operates very efficiently.

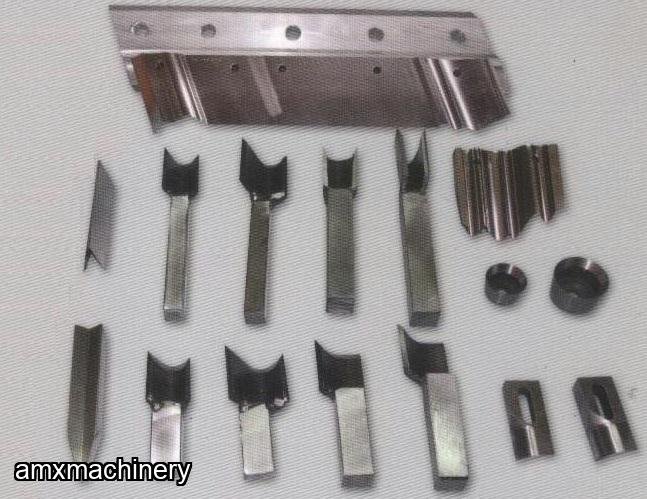

Besides the two rough cutters, the machine also coordinates with profile-type blades for the fine finish shape cutting.
The centralized control panel provides convenient operation of the machine.
Auto feed magazine for mass duplicate productions and saves labor cost.
Industrial full power motor for maximum cutting capacity.
Precision sealed long-life bearing.
Heavy cast iron frame and table for durability usage.
SPECIFICATIONS | CL-113 | CL-025TC |
Max. Working Length | 1-1/8" ~ 16½" | 2½" ~ 25" |
Max. Working Dia. | ½" ~ 5-1/8" | 4" ~ 12" |
Turning Motor | 5 HP x 1 | 7½ HP x 1 |
Hyd. Motor | 3 HP x 1 | 3 HP x 1 |
Cutting Circle | 2 ~ 12 Times/Min. | 1 ~ 6 Times/min. |
Main Spindle Speed | 2000 ~ 3480 RPM (var) | 720 ~ 2500 RPM |
Electrical Control Style | By AC 220V Relay control | By AC 220V Relay control |
Machine Dimensions | 61" x 61" x 53" | 63" x 51" x 55" |
N.W. | 2640 LBS | 2900 LBS |
G.W. | 3300 LBS | 3600 LBS |
