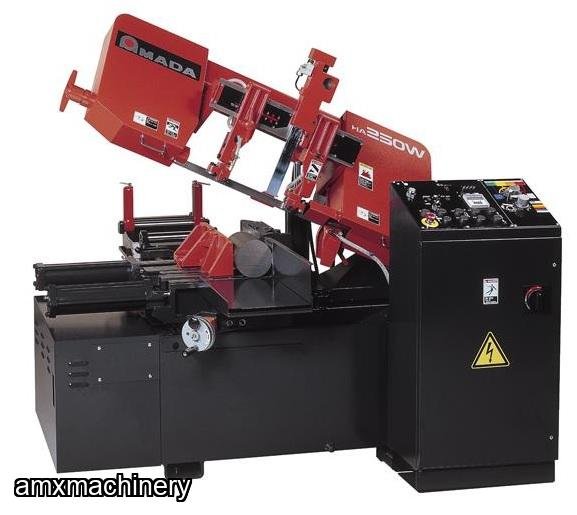

SIERRA CINTA – AUTOMATICA – CAPACIDAD 10”

PARTE: 2AA-HA250W – SIERRA CINTA – AUTOMATICA – CAPACIDAD 10” - AMADA

NUEVA CON GARANTIA

Machine Specifications

Cutting Capacity

Round (Diameter) 1.18"-10"

Rectangle (W x H) 11.8" x 10"

Work Load Capacity 3,307 lbs.

Material Index Stroke 15.75" (Maximum 9 Times Index)

Index Length 0.394" x 141.7"

Saw Blade Dimensions (L x T x W) 11'6" x 0.042" x 1-1/4"

Blade Speed 89-295 ft./min, 60 Hz, Stepless

Saw Blade Motor 5 HP

Hydraulic Pump Motor 1 HP

Cutting Fluid Pump Motor 0.25 HP

Voltage Required

AC220V±10%, 3 PH, 60 Hz

Or AC440V, 3PH, 60Hz

Machine Dimensions

Head Up Position 76.5" x 93.1" x 69.8" (W x L x H)

Head Down Position 76.5" x 93.1" x 50.6" (W x L x H)

Table Height 27.6"

Machine Weight 3,307 lbs.

HA250W    - Model - HA250W with Machine Standard Features

Blade         - SVGLB 1 1/4" x 0.042" x 4/6 TPI x 11´6" (start-up blade)

OPTIONAL ITEMS

6' Dead Roller Table Free Standing

10´ Dead Roller Table free standing

Vertical clamps

Vise Pressure Control

Extended warranty - additional year in parts
