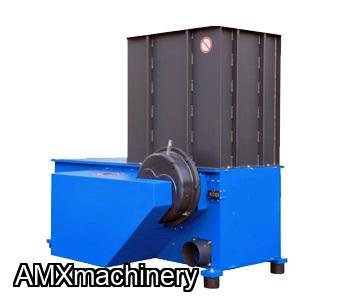

ASTILLADORA PARA MADERA - 15, 20, 25 HP

PARTE: 4GR-GAZ62 - ASTILLADORA PARA MADERA - 15, 20, 25 HP

NUEVA CON GARANTIA

Valuable substance shredders shred materials such as wood, cardboard, plastic and many others economically and effectively.

Can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

Compact and designed for high performance.

Details:

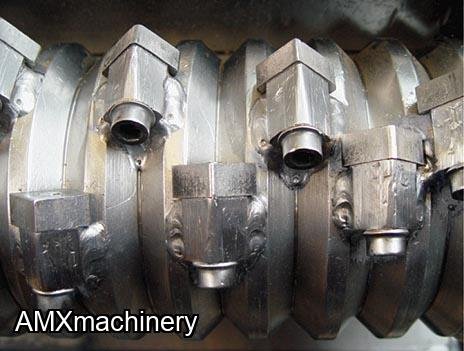

Profile rotor with welded knife carriers

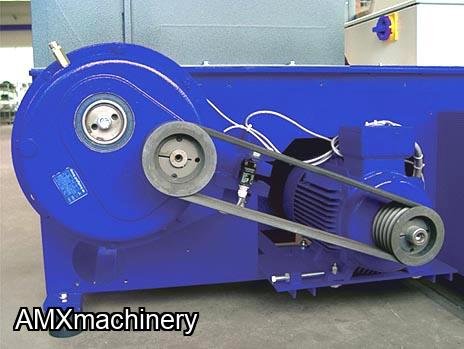

Transmission and motor

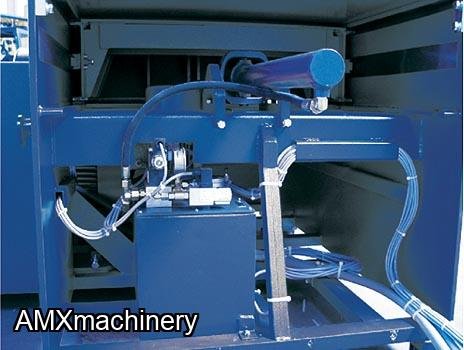

Hydraulics

Screen basket

Switching cabinet / SPS control

Protected rotor bearing

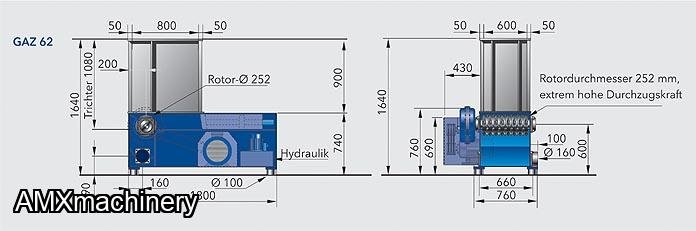

Technical data:

GAZ 62

Feed opening (mm): 600 x 800

Hopper capacity (cbm): 0,6 m³

Throughput: Material and screen dependent

Rotor-Ø (mm): 252

Rotorlength (mm): 600

Rotor speed (rpm): 60 - 100

Power required (kW): 11/15/18,5

Tools: 14 knives

Screen perforation (mm): 10 - 40

Suction piece-Ø (mm): 160 mm

Air speed (m/sec.): 28

Weight (approx. kg): 1.300

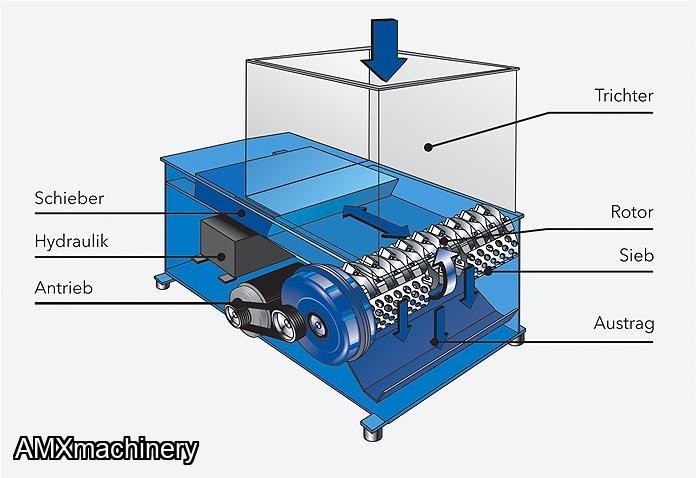

Function

Material is fed through the hopper in front of a hydraulically operated drawer, which pushes the material load-controlled onto the turning rotor. The material is shredded between the rotor knives and a fixed counterknife.

The drawer has stripping bars that prevent material from entering between the drawer and machine housing. The screen hole with different perforation diameters determines the size of clippings or shavings. Produced shavings can be removed from the machine with the suction device or spiral conveyor. Once the material is shredded, the machine will automatically shut off.

PLC option for fully automated operation (upon request)

Special designs upon request.
