Identificador: 1935
Abierta
Descripción

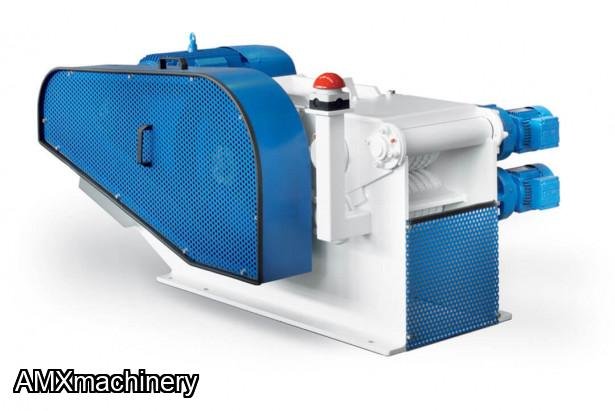

PARTE: 2VE-VTH-35/8/2VU - ASTILLADORA PARA MADERA - HORIZONTAL - 40 HP
TRANSPORTADOR VTBRATORIO 16” LARGO
NUEVA CON GARANTIA
Application Description:
Type of material to be ground: Wood – Pine, kiln dried
Form of material to be ground: Rips from gang-rip, waste wood from cut-offs
Typical size of material to be ground: < 5” x 18” x 16’
Required volume of material to be ground: 1,000 lbs/hr
Desired screen or particle size: 3/4”
Use of ground product: Not Specified

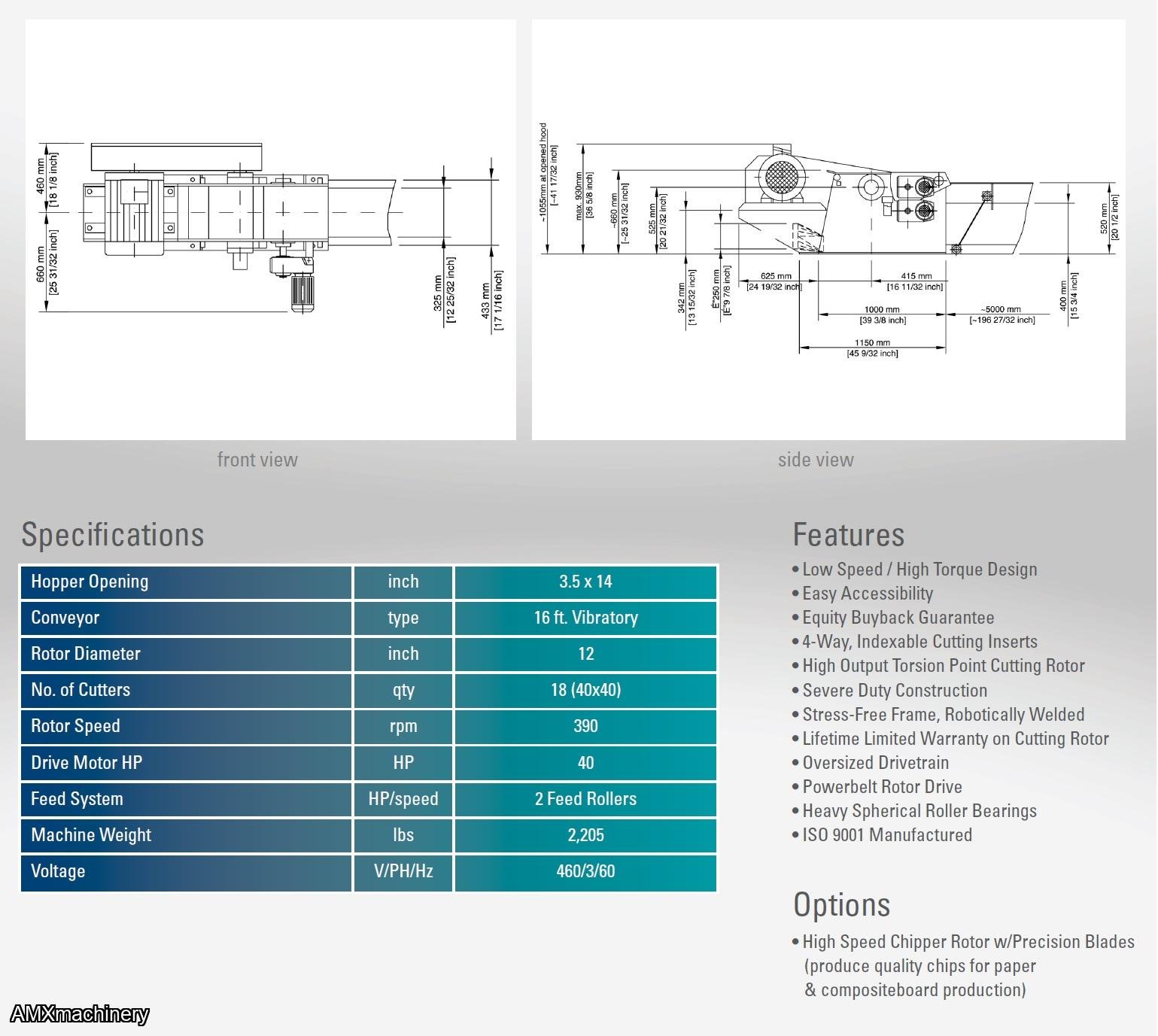

SPECIFICATIONS
Machine Infeed Opening: 3.5” H x 14” W
Rotor Length: 14”
Rotor Diameter: 12”

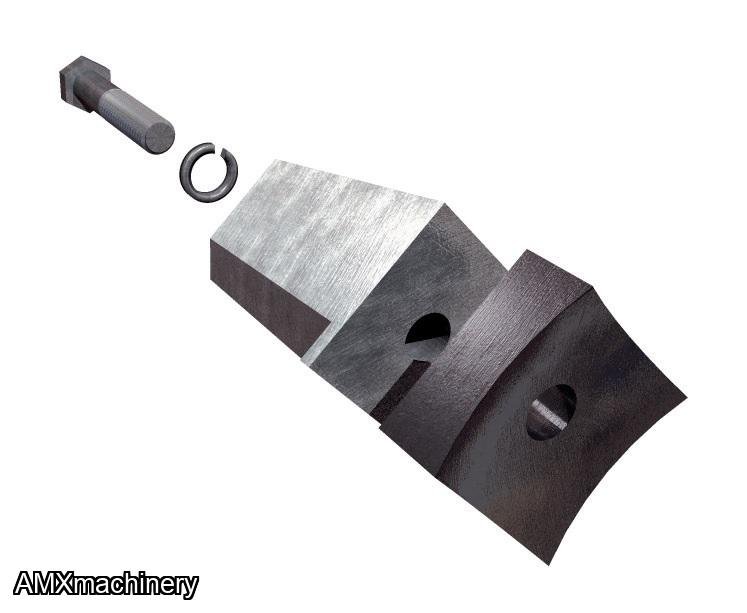

Number Of Cutters: 18 (40 mm x 40 mm)
Rotor Speed: 390 rpm
Infeed Conveyor: 16’ Vibratory Conveyor
Drive Motor HP: 40
Voltage: 460V/3ph/60Hz
NOTE: A throughput rate in excess of 1,000 lbs/hr through a 3/4” screen is achievable dependent on the type of material, form of material, screen size and method of feeding.
Throughput estimates are based on maximum obtainable rates and may vary according to material types and screen sizes.
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
CEPILLO 4 CARAS - CAPACIDAD 17.5” ANCHO
PARTE:
12332 - CEPILLO 4 CARAS - CAPACIDAD 17.5” ANCHO
USADO - MUY BUENAS CONDICIONES
Capacidad 450 mm x 200 mm
4 portaherramientas
Altura superior 200 mm
Cepilladora alta y baja 10 - 10 HP
Cepilladora verticales 7.5 - 7.5 HP
Medidas de la Maquina : Largo 2730 mm x ancho 1470 mm x
alto 1500 mm
Peso incluido el embalaje
2500 Kg
AMXmachinery
PARTE: 2SP-S-2415 - TRITURADORA - ASTILLADORA - MOTOR 15 HP - ENTRADA 24” LARGO X 36” ANCHO
PARTE: 2SP-S-2415 - TRITURADORA - ASTILLADORA - MOTOR 15 HP - ENTRADA 24” LARGO X 36” ANCHO PARA MADERA, MDF, PLYWOOD, COMPOSITES, PAPEL, CARTON, ETC.NUEVO CON GARANTIA24" wide cutterhead block, 24" wide x 36" deep inlet hopper.15 HP motor/gearbox drive, prepared to operate on 208-230 volts 3 phase power with master control panel & emergency stop included.Generates solid material into approximately 3/8" x 1" sizes.A robust fabrication design built for many years of daily, commercial use s...
AMXmachinery
PARTE: 12620 - SIERRA ESCUADRADORA VERTICAL – HOLZHER 1255
PARTE: 12620 - SIERRA ESCUADRADORA VERTICAL – HOLZHER 1255USADA – BUENAS CONDICIONESCORTA HORIZONTAL Y VERTICALLONGITUD MAXIMA DE CORTE: 4400 MMALTURA MAXIMA DE CORTE: 2000 MMESPESOR MAXIMO DEL TABLERO: 63 MMDIAMETRO HOJA SIERRA: 250 MMFLECHA HOJA SIERRA: 30 MMMOTOR: 4 KWDIMENSIONES DE TRANSPORTE: 5200 MM LARGO X 1200 MM ANCHO X 2800 MM ALTO
AMXmachinery
ADITAMENTO TORNO
PARTE # SIL-DC-CD - ADITAMENTO COPIADOR PARA TORNO SIL-DC-MC1100NUEVO CON GARANTIAMAXIMA LONGITUD ADMITIDA: 1000 MMRECORRIDO DEL CORTADOR: 35 MMALTURA DEL CENTRO: 150 - 210 MMPESO: 18 KGSEMPAQUE: 1 CAJA
