Description

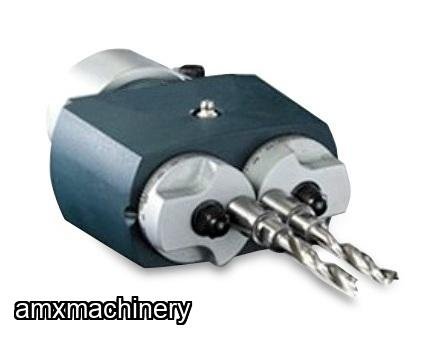

PARTE: 2TA-A-2CWSERIES - CABEZAL PARA TALADROS - DISTANCIA AJUSTABLE
- Micro Adjustable.
- Maximum flexibility of drills distance application.
- Accurate center distance positioning.
- Heavy-duty construction requires minimum maintenance.
- Fast setup that helps reduce boring downtime.
| Specifications | Dimensions | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| A-2CW13 | 0.39" (10 mm) | 0.39" (10 mm) | 1." (28 mm) | 2" (55 mm) | 4" (106.5 mm) | 2" (57 mm) |
| A-2CW18 | 5" (127.5 mm) | 3" (67 mm) | ||||
| A-2CW19 | 5" (127.5 mm) | 3" (67 mm) | ||||
| A-2CW22 | 6" (143 mm) | 3" (82 mm) | ||||
| A-2CW25 | 8" (191 mm) | 4" (109 mm) | ||||
| A-2CW26 | 7" (166 mm) | 4" (92 mm) | ||||
| A-2CW36 | 8" (211 mm) | 4" (114 mm) | ||||
| A-2CW254 | 8" (191 mm) | 4" (109 mm) | ||||
| Specifications | Dimensions | |||||
|---|---|---|---|---|---|---|
| G | H | L1 | L | X | Y | |
| A-2CW13 | 0.12" (3 mm) | 1" (15 mm) | 5" (115 mm) | 6" (140.5 mm) | 2" (40 mm) | 3" (73.8 mm) |
| A-2CW18 | 4" (112 mm) | 5" (137 mm) | 2" (46 mm) | 4" (88.8 mm) | ||
| A-2CW19 | 4" (112 mm) | 5" (137 mm) | ||||
| A-2CW22 | 4" (114 mm) | 5" (139 mm) | ||||
| A-2CW25 | 1" (16 mm) | 5" (120 mm) | 6" (145 mm) | 3" (70.7 mm) | 3" (70.7 mm) | |
| A-2CW26 | 5" (120 mm) | 6" (145 mm) | 2" (46 mm) | 4" (88.8 mm) | ||
| A-2CW36 | 5" (138 mm) | 6" (163 mm) | 3" (70.7 mm) | 3" (70.7 mm) | ||
| A-2CW254 | 0.59" (15 mm) | 5" (120 mm) | 6" (145 mm) | 3" (70.7 mm) | 3" (70.7 mm) | |
| Specifications | Spacing | Weight | |||
|---|---|---|---|---|---|
| Min | Max | Max Capacity | Thread | ||
| A-2CW13 | 1" (13.5 mm) | 3" (73.5 mm) | Ø0.39" (Ø10 mm) | m8x1.25 | 6 LBS (2.7 kg) |
| A-2CW18 | 1" (18 mm) | 4" (90 mm) | Ø1" (Ø15 mm) | m8x1.25 m10x1.5 | 7.72 LBS (3.5 kg) |
| A-2CW19 | ¾" | 3½" | Ø 5/8" | 7/16"x14 | 7.94 (3.6 kg) |
| A-2CW22 | 1" (22 mm) | 4" (106 mm) | Ø1" (Ø20 mm) | m8x1.25 m10x1.5 | 9.26 LBS (4.2 kg) |
| A-2CW25 | 1" (25 mm) | 6" (151 mm) | Ø1" (Ø15 mm) | m8x1.25 m10x1.5 | 16.32 LBS (7.4 kg) |
| A-2CW26 | 1" (26 mm) | 5" (126 mm) | Ø1" (Ø30 mm) | m8x1.25 m10x1.5 | 12.79 LBS (5.8 kg) |
| A-2CW36 | 2" (36 mm) | 6" (164 mm) | Ø2" (Ø50 mm) | m8x1.25 m10x1.5 | 22.05 LBS (10 kg) |
| A-2CW254 | 1" (25.4 mm) | 5¾" | Ø 5/8" | 7/16"x14 | 16.32 LBS (7.4 kg) |
- Adjustable spacing between spindle: 0.53"~6.46" (13.5~164 mm).
- Great drilling capacity for wood Ø0.39"~Ø2" (Ø10~Ø50 mm).
