Identificador: 3059
Abierta
.PNG)
.PNG)
Descripción

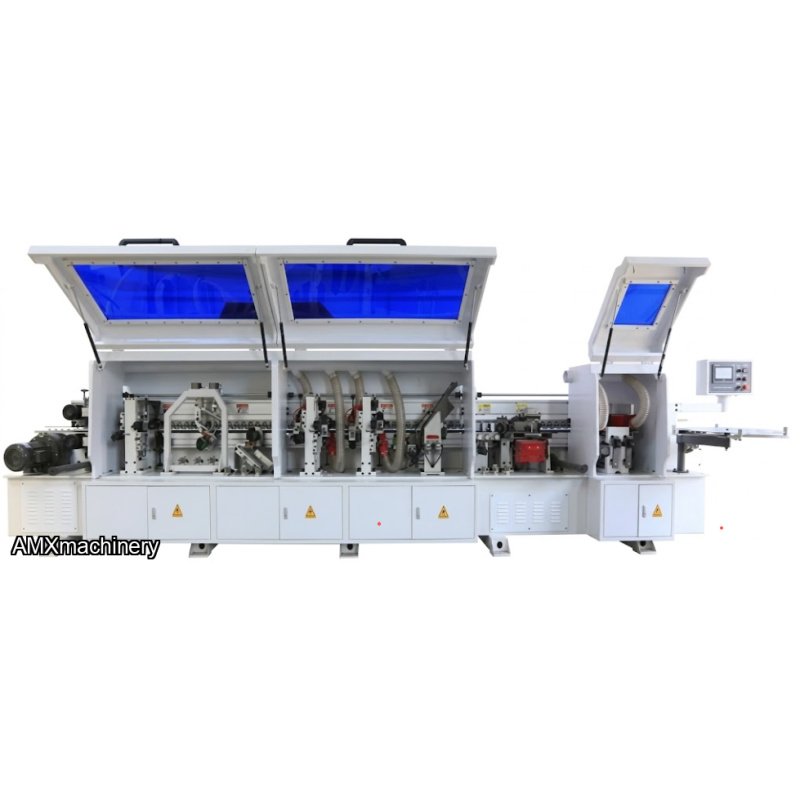

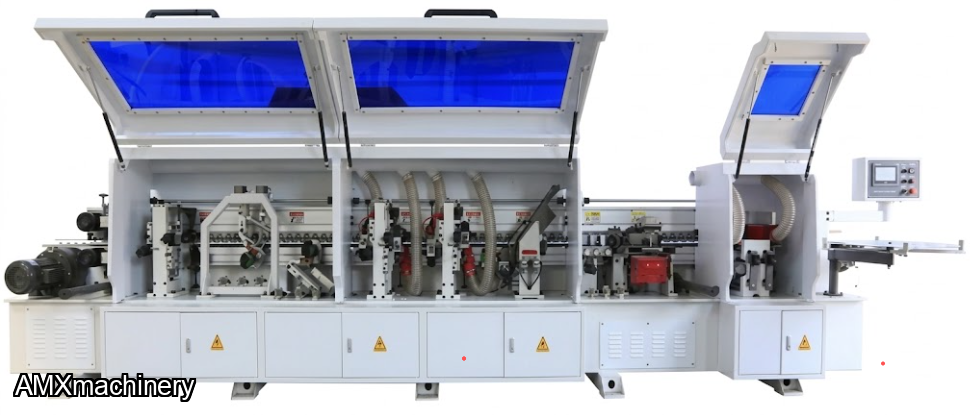

PARTE: 3HO-HT450YF - CANTEADORA AUTOMATICA
| Banding Tape Thickness | 0.3-3mm |
| Banding Tape Width | 12-65mm |
| Workpiece Thickness | 10-60mm |
| Workpiece Length | >=80mm |
| Workpiece Width | >=60mm |
| Feeding Speed | 18/20/22mmin |
| Heating Power | 1.8kw |
| Pre-milling Motor Power | 2.2kw x2 |
| Feeding Motor Power | 3.7kw |
| Glue Spreading Motor Power | 0.75kw |
| End Trimming Motor Power | 0.37kw x 2 |
| Rough Trimming Motor Power | 0.75kw x 2 |
| Fine Trimming Motor Power | 0.75kw x 2 |
| Corner Rounding Motor Power | 0.37kw x 2 |
| Polishing Motor Power | 0.18kw x 2 |
| Workpiece Pressing Beam Lifting Motor Power | 0.37kw |
| Air Pressure | 0.8-1Mpa |
| Overall Dimension | 6700×850×1450mm |
| N.W. | 2700kgs |
Pago y Devoluciones
- Forma de pago
- N/A
