CIERRA CINTA 24" 2 EN 1 PARTE: 2CK-HB600A
Is heavy duty and built to last. With its industrial cast iron wheel and table assembly it can handle any job. What makes it unique is the capacity to run from ¼” to 2” wide blade allowing you to do intricate curve work as well as resaw timbers to size. The saw wheels are driven by a powerful 5HP motor allowing you to make your cuts with ease. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.
- 2-in-1 bandsaw can run up to a 2” wide blade for resawing and down to a ¼” for curve cutting
- Cast iron saw wheels are precision machined and laminated with rubber for accurate blade tracking and slippage prevention

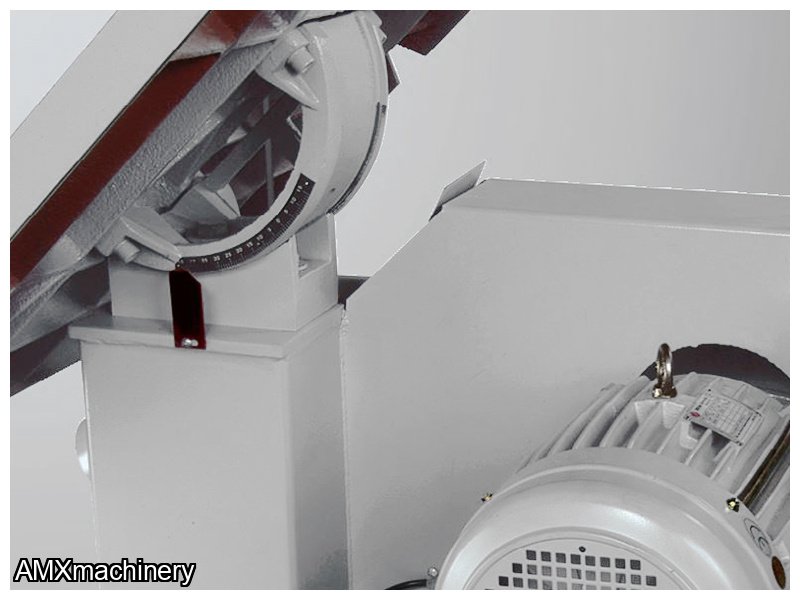

- Cast iron worktable is precision ground and can tilt to 45o
- Blade tension is conveniently adjusted by means of a handwheel and tension is shown by a scale for accurate tension setting.
- Heavy gauge steel frame ensures vibration free cutting

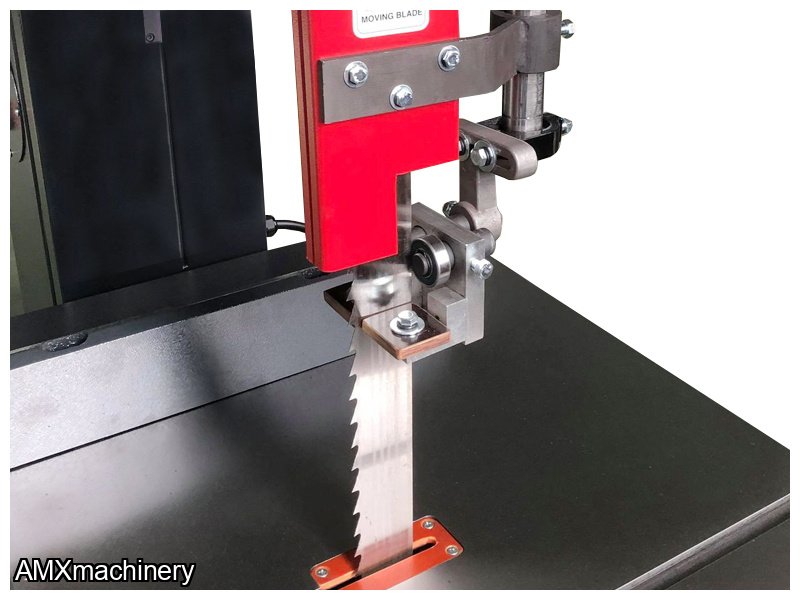

- Upper and lower guide assemblies with Bakelite side guides to ensure cool running of the saw blade and a back guide thrust bearing
- Micrometric adjustment to upper guide by rack and pinion
- Foot brake for quick stopping of the blade
Saw wheel diameter | 23 ½” |
Table size | 31 ½” x 23 ¾” |
Table tilting | 0° – 45° |
Throat capacity | 22-7/8″ |
Height capacity | 13 ¾” |
Width of wheel | 2″ |
Blade speed | 710 RPM (4458 FPM) |
Blade length | 173-5/8″ ~ 176 ½” |
Blade width | ¼” ~ 2″ |
Motor | 5 HP |
Dust hood diameter | 4” x 2 |
Net weight | 748 lbs. |
Gross weight | 990 lbs. |
Machine size (LxWxH) | 42″ x 31″ x 81″ |
Packaging size (LxWxH) | 85″ x 25″ x 43″ |
Electrical | 230/3/60 = 12.4 Full Load Amps575/3/60 = 4.5 Full Load Amps |
