Identificador: 3227
Abierta
Descripción

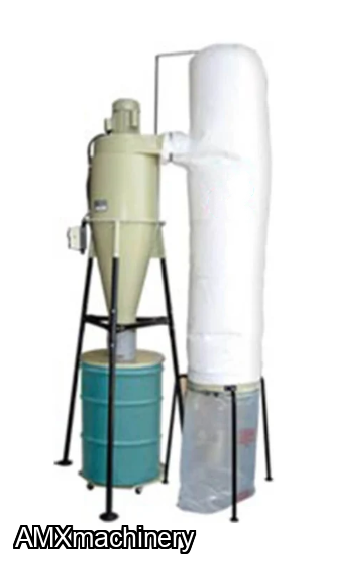

PARTE: 2EX- DC-275 - COLECTOR DE POLVOS - 3 - CICLON
Comes in single and three phase models with 2 1-micron filter bags. It features a 117 square foot filter area with 24 cubic feet of storage capacity measuring 140 inches tall by 120 inches wide by 50 inches deep. The single-phase dust collector is powered by a 3 horsepower Baldor motor has 38 amps at 220 volts while the three-phase dust collector is powered by a 3 horsepower TEFC motor has 20 amps at 220 volts. Drums not included. Magnetic starter included.
|
|
|
3HP 1PH Cyclone Dust Collector, 230V
|
5HP 3PH Cyclone Dust Collector
|
7.5HP 3PH Cyclone Dust Collector
|
|
Amps
|
27A @ 220V |
15A @ 220V |
1PH: 27A @ 220V 3PH: 17A @ 220V |
1PH: 38A @ 220V 3PH: 20A @ 220V |
|
Cfm
|
6400 |
1785 |
2975 |
4850 |
|
Dimensions
|
148″ x 128″ x 56″ |
123″ x 65″ x 42″ |
140″ x 110″ x 50″ |
140" x 120" x 50" |
|
Dual barrel design
|
true |
— |
— |
— |
|
Fan rpm
|
3450 |
3450 |
3450 |
3450 |
|
Fan size
|
16" |
13″ |
14.25″ |
14.75" |
|
Filter-bags
|
2 |
1 |
2 |
2 |
|
Filter area
|
117 |
37 |
59 |
117 |
|
Horsepower
|
10HP |
3HP |
5HP |
7.5HP |
|
Impeller size
|
16" |
13″ |
14-1/4″ |
14.75" |
|
Inlet-size
|
13" |
8″ |
10" |
12" |
|
Motor
|
TEFC 10 HP |
TEFC 3 HP |
1PH: BALDOR 5 HP 3PH: TEFC 5 HP |
1PH: BALDOR 7.5 HP 3PH: TEFC 7.5 HP |
|
Phase
|
3 |
1 |
1 or 3 |
1 or 3 |
|
Static pressure
|
16" |
10″ |
12″ |
13.5" |
|
Storage capacity
|
32 |
12.78 |
11 |
24 |
|
Weight
|
750 lbs |
260 lbs |
440 lbs |
540 lbs |
