Descripción

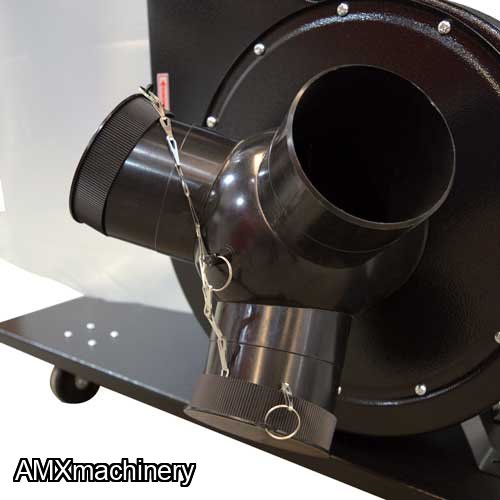

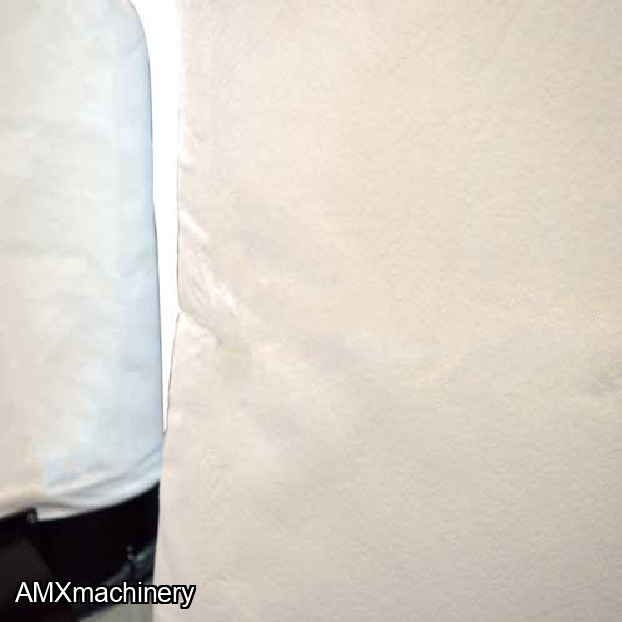

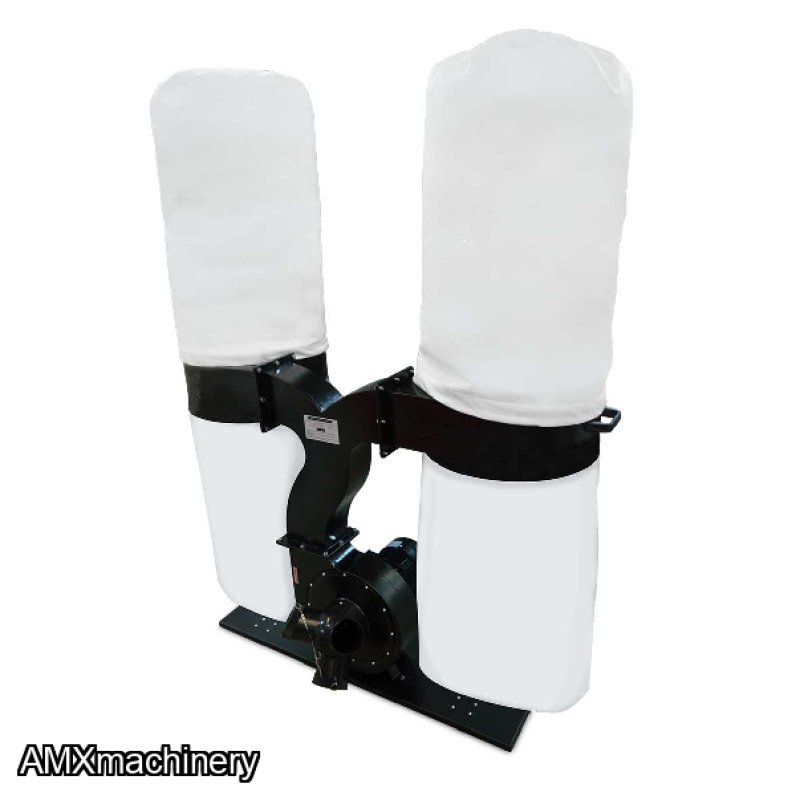

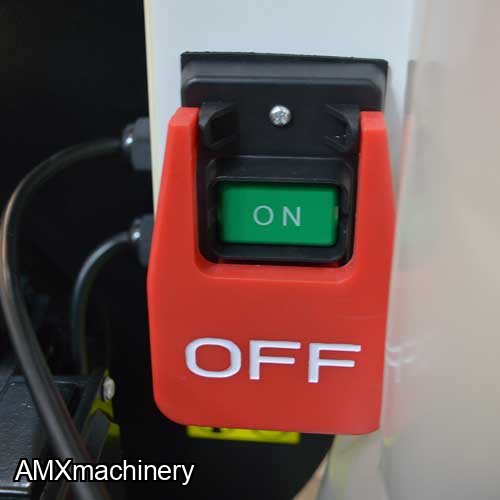

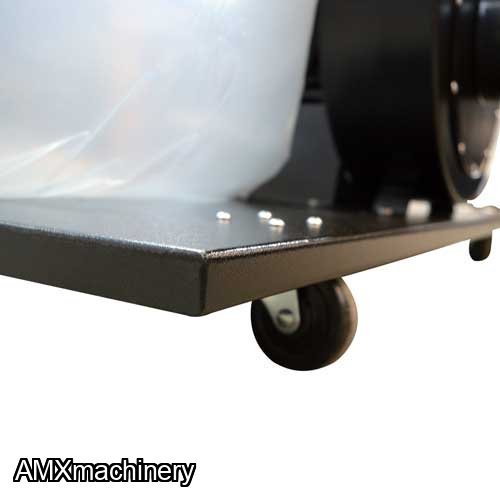

PARTE: 2MK-CPD/3.C - COLECTOR DE POLVOS - 3HP
Was developed for cabinet shops with high production. With air flow rate of 2,760 ft³/min, the CPD/3 collects dust of up to 3 machines simultaneously.
| Technical Information | |
|---|---|
| Motor Spec | 3 HP 1 phase 220 V 15 A |
| Air Flow Capacity | 2,760 CFM |
| Fan Diameter | 12" | 305mm |
| Bag Capacity | 15 ft3 | 0.43 m3 |
| Number of air Inlet | 3 |
| Inlet size | Main: 6" | 150mm - Spliter: 4"/100mm |
| Filtration | 1 micron |
| Sound Rating | 89 dB |
| Weight | 128 Lbs | 58 kg |
