Descripción

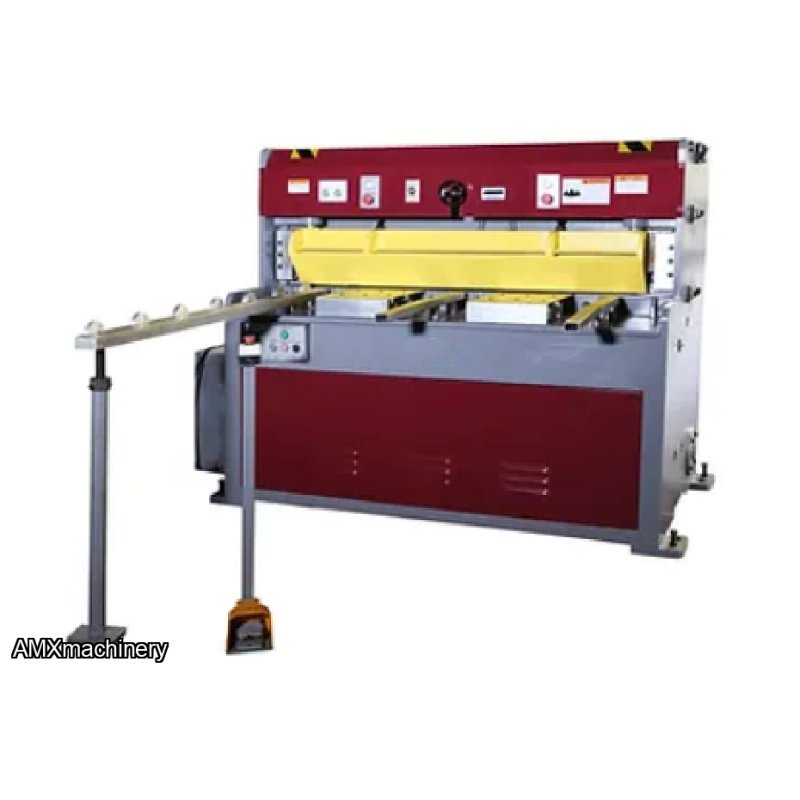

CORTADORA DE METAL HIDRAULICA PARTE: 2GM-HS-0410E
- ISO 9001 certified
- Taiwan machines
- 24” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- 24” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display.
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with gap dial
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
Cutting capacity: Mild Steel: Stainless Steel: soft aluminum: min. thickness
|
4'x 10 Ga. 4' x 14 Ga. 1/4" 20GA |
| Blade Length: | 4'4" |
| Strokes per Minute: | 12-20 |
| Worktable Height: | 34 1/2" |
| Front Support Arm: | 24" |
Back Gauge (German SIKO): | 24" Powered B.G. |
| Blade Rake Angle: | 2 degrees |
| Oil Tank Capacity: | 17 Gallons |
Main Motor:
Powered B.G. Motor | 7-1/2 HP | 3 Phase | 220V/30A (Optional: 440V/15A | 3 Phase) 3/4 HP | 220v/440v | 3 Phase |
| Machine Weight: | 5,150 LBS |
| Machine Dimensions: | 74" x 86" x 63" |
