Descripción

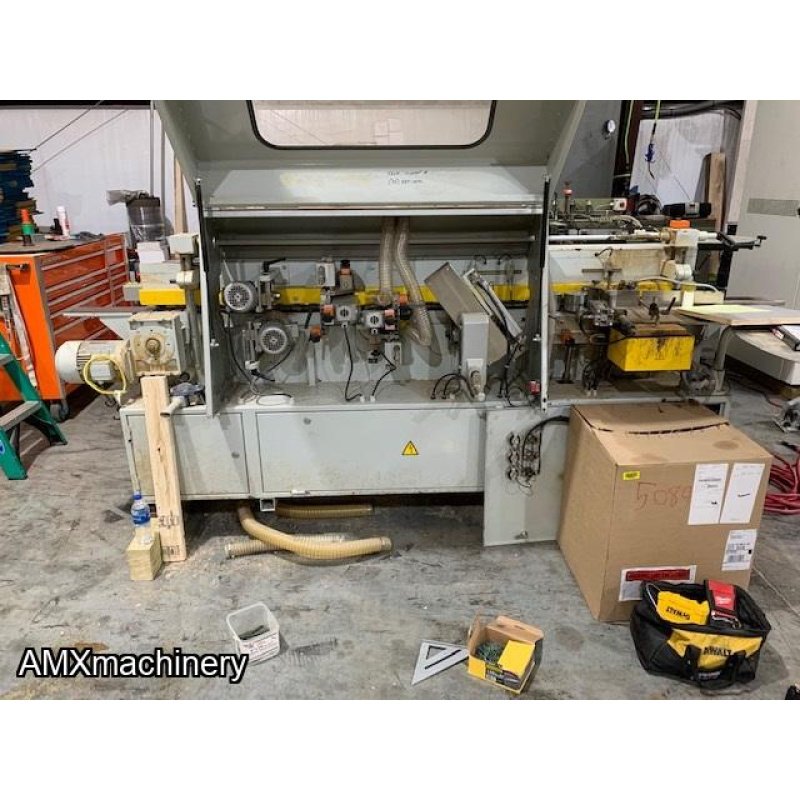

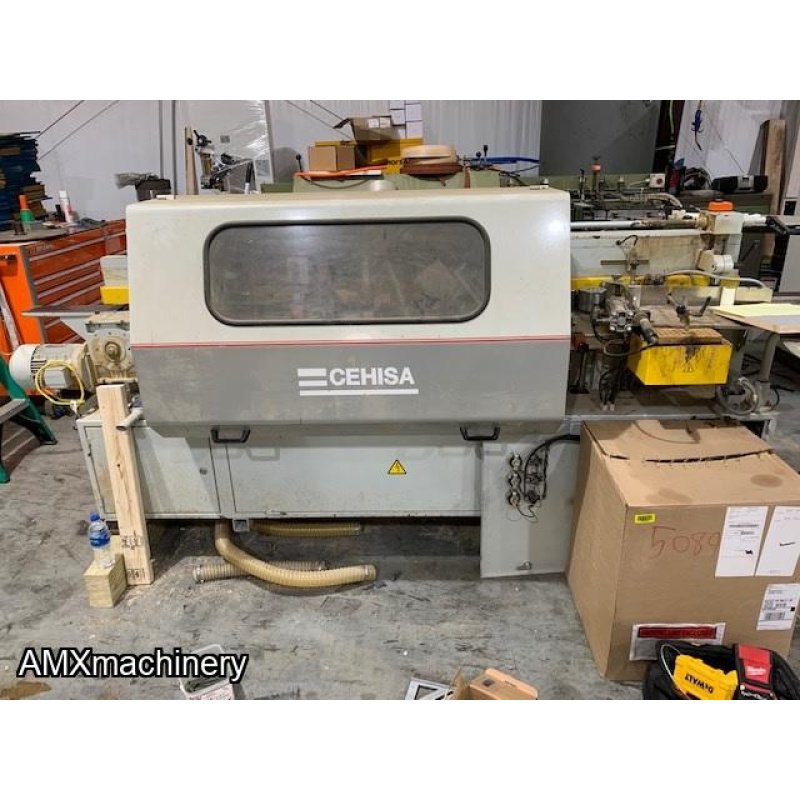

PARTE: 12030 – ENCHAPADORA CEHISA - EP-8
Usada – Buenas condiciones

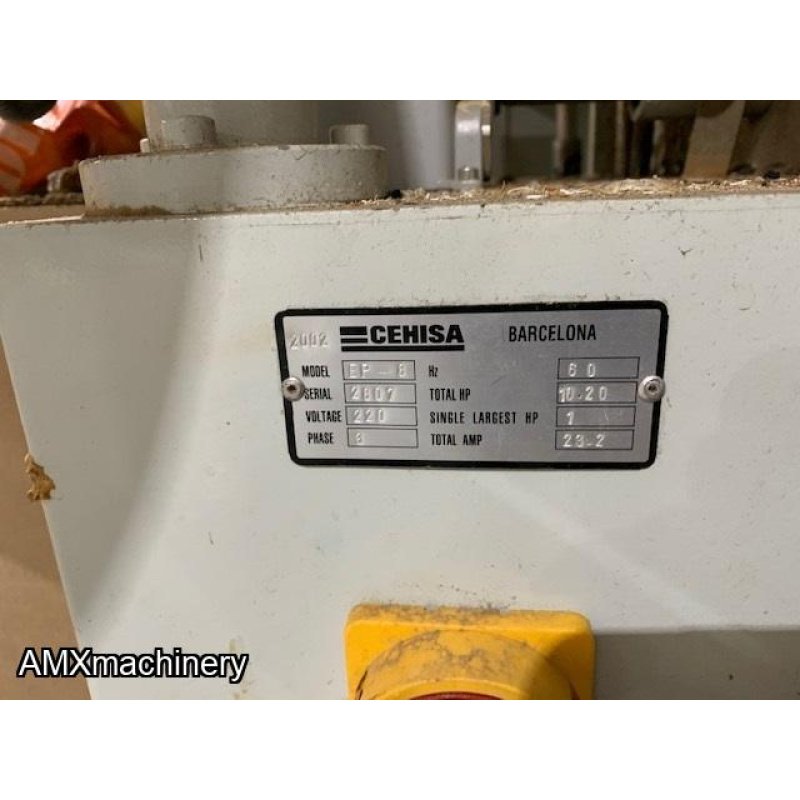

Model: EP-8
Serial #: 2807
Approx. Shipping Weight: 2,500 Lbs.
Approx. Shipping Dimensions: 132″ L x 60″ W x 72″ H
Specifications:
Edgeband Thickness Max.: 3/16″ Solid Wood
Coil Cutoff Max.: 2.5mm PVC
Panel Length Min.: 5″
Panel Width Min.: 3″
Panel Thickness Min.: 3/8″
Panel Thickness Max.: 2″
Feed Speed: 33 FPM
Feed Motor: 1HP
Pressure Section: 1 Motorized Roller
End Trim Unit: 1/3HP
Tooling Speed: 12000 RPM
Straight Cut Max.: 3/16″ x 2-1/4″
Top & Bottom Trim Station: 3/4HP
Tilting Range: 0 – 20å¡
Machine Length: 10.5′
Machine Width: 56″ to 80″ (Depending on outrigger position)
Working Height: 32-1/2″
Total Height: 57″
Electrical: 220V/3PH
Equipped With:

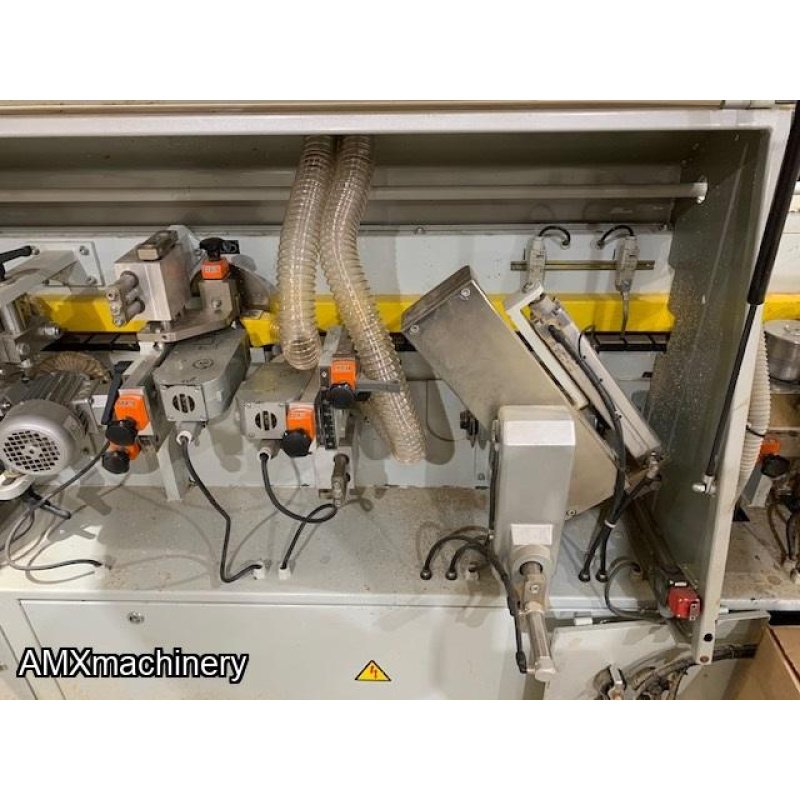

Pressure Roller, Automatic Roll Cutter & Strip Feed Magazine, Standard Guillotine, Quickmelt Glue Pot, End Trim Unit, Top & Bottom Trim Unit, Top & Bottom Buffing Station
