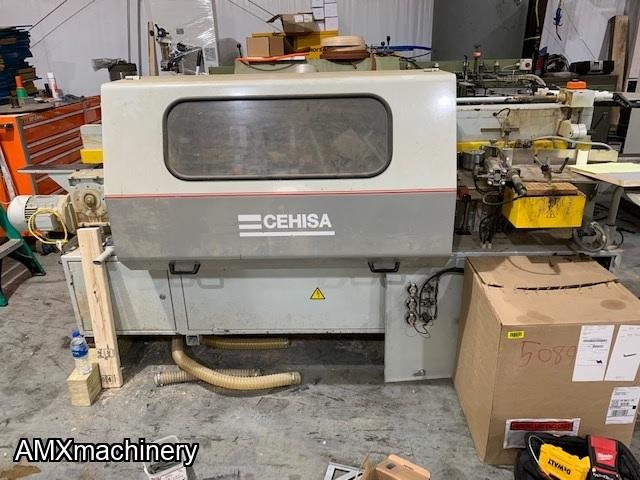

ENCHAPADORA CEHISA EP-8

PARTE: 12030 – ENCHAPADORA CEHISA - EP-8

Usada – Buenas condiciones

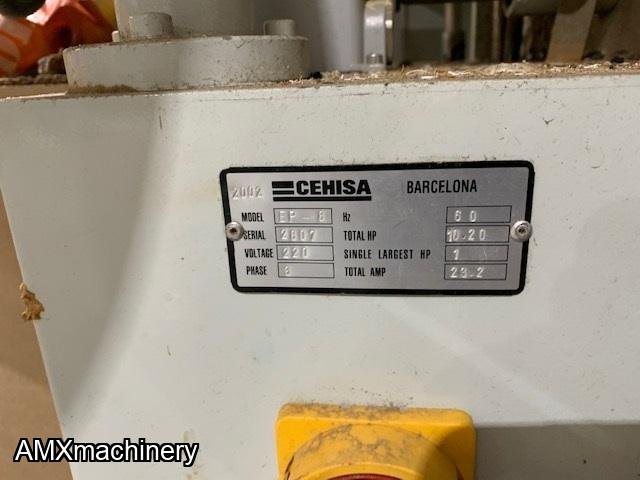

Model: EP-8

Serial #: 2807

Approx. Shipping Weight: 2,500 Lbs.

Approx. Shipping Dimensions: 132″ L x 60″ W x 72″ H

Specifications:

Edgeband Thickness Max.: 3/16″ Solid Wood

Coil Cutoff Max.: 2.5mm PVC

Panel Length Min.: 5″

Panel Width Min.: 3″

Panel Thickness Min.: 3/8″

Panel Thickness Max.: 2″

Feed Speed: 33 FPM

Feed Motor: 1HP

Pressure Section: 1 Motorized Roller

End Trim Unit: 1/3HP

Tooling Speed: 12000 RPM

Straight Cut Max.: 3/16″ x 2-1/4″

Top & Bottom Trim Station: 3/4HP

Tilting Range: 0 – 20å¡

Machine Length: 10.5′

Machine Width: 56″ to 80″ (Depending on outrigger position)

Working Height: 32-1/2″

Total Height: 57″

Electrical: 220V/3PH

Equipped With:

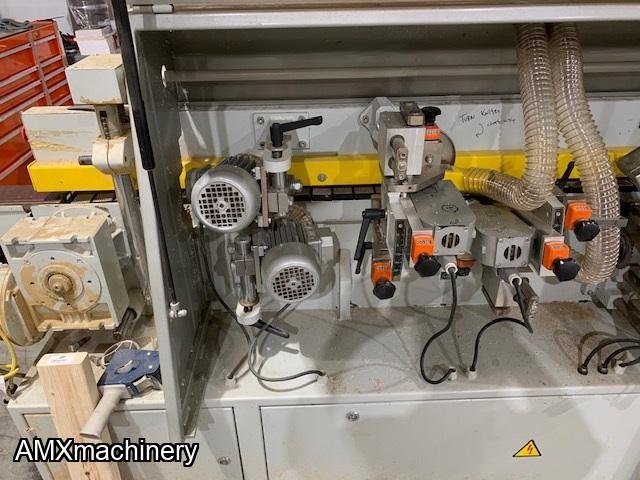

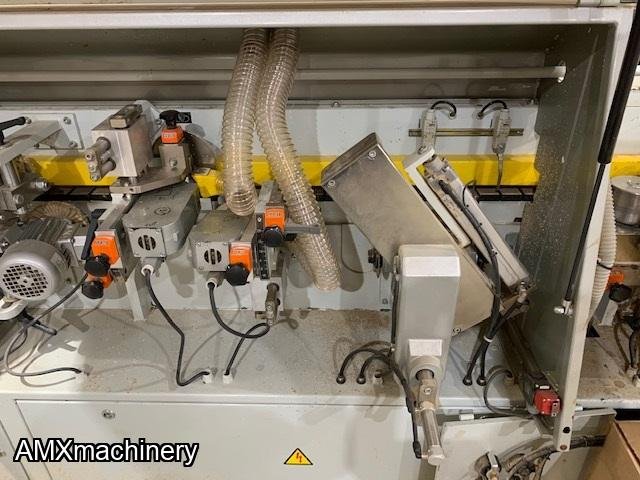

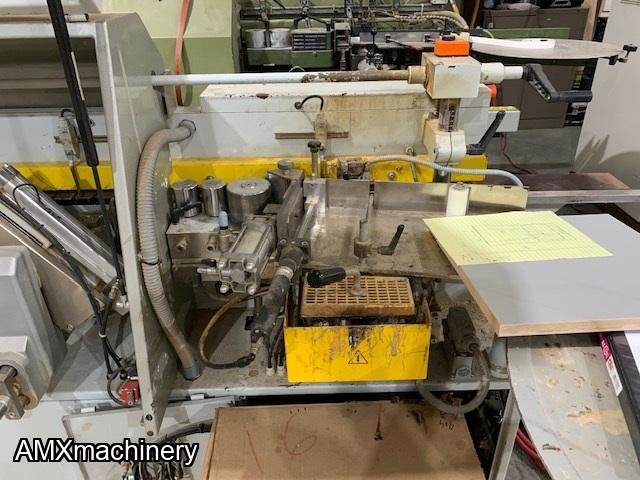

Pressure Roller, Automatic Roll Cutter & Strip Feed Magazine, Standard Guillotine, Quickmelt Glue Pot, End Trim Unit, Top & Bottom Trim Unit, Top & Bottom Buffing Station
