Descripción

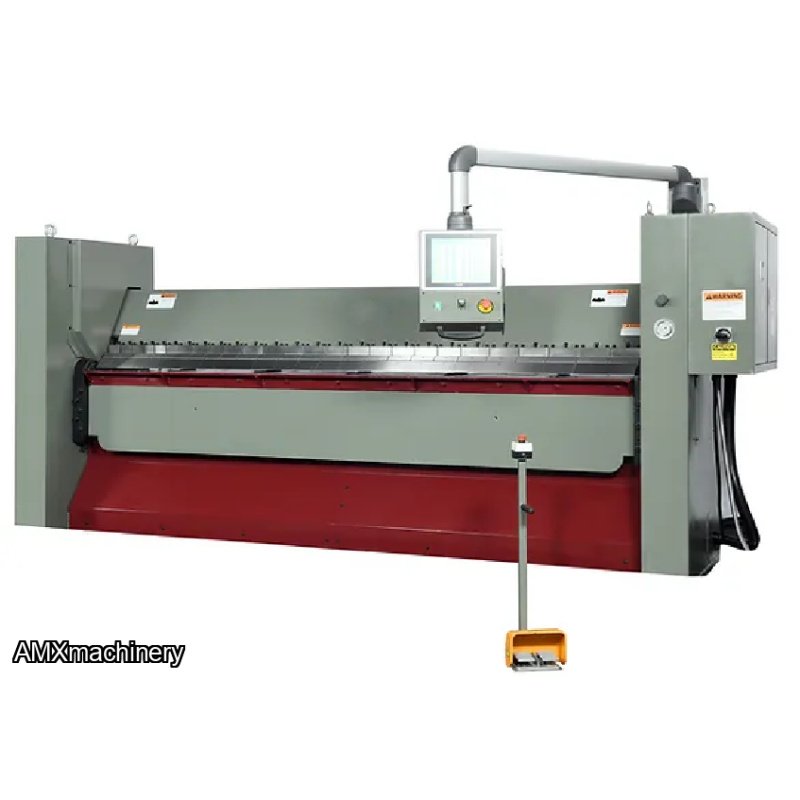

ENGANCHADORA CON CONTROLADOR NC PARTE: 2GM-HBB-1010NC
- Meet OSHA and CE safety standard
- 48” NC table back gauge with fingers
- Max. 16 bends per program
- Upto 100 Program Storage
- Programmable Angle/ Angle Correct
- NC ram height control for open hemming
- Hardened fingers and table
- Germany Rexroth hydraulic system
- Yaskawa Servo motors and Drives
- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
Capacity: Mild Steel(hot roll)60K PSI Stainless Steel 85 K PSI Soft aluminum 28K PSI Hemming max thickness: |
10 Ga. 14 Ga. 1/4" 22 Ga. |
| Bending length capacity | 10' |
| Bend Angel Degree, programmable | 135 degree |
| Max. Box Depth | 153mm=6.02” |
| Large Beam Opening/Clamping Opening | 3" |
| Beam front/back adjustment | 1" |
| Min. Reverse Bend | 1" |
Max. Table Back Gauge Distance Min. Table Back Gauge Distance | 48-3/8" 1/4" |
| Back Gauge Repeatability | 0.0039" |
| Back Gauge Table Height | 35-3/4" |
| Assorted fingers | 3" 4" 5" 6" |
Main Motor
Servo Motor for back gauge |
10HP,220V/208V, 3ph (35amps)
1HP |
Hydraulic Oil Tank Capacity: Recommended hydraulic oil: | 32 Gal. Shell #68 or equivalent |
Machine Weight: Shipping weight: Machine Dimensions: Shipping Dimensions: | 11,550 lbs. 11,850 lbs. 175" x 93" x 76" 163" x 85" x 78" |
