Descripción

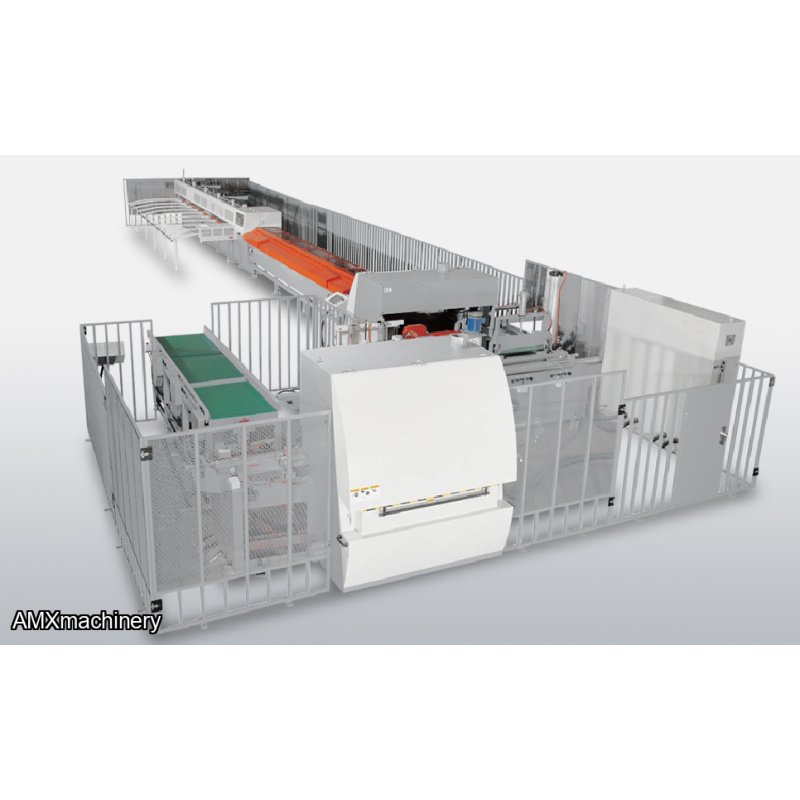

FINGER JOINT AUTOMATICA PARTE: 2CK-FL03
Is a cutting-edge fully automatic finger jointing production line, designed to efficiently convert wood waste into valuable materials while maintaining an excellent performance-to-cost ratio. With its innovative technology, this system offers remarkable value in terms of both performance and price, the entire machining procedures from workpiece in-feed, left and right shaping to jointing is fast, smooth and accurate. The whole production line is carefully designed and built for maximum dependability year after year, making it a continuous game-changer in the wood industry.
- Excellent performance-to-cost ratio
- Only two operators required for maximum production
- Injection type gluing system
- Standard: PVAc glue – Tooling for PU, MUF, EPI, etc. glues available upon request
- Length of cut is calculated by an encoder and set on a touch screen for increased accuracy
- Servo motor capable of provides a production rate of up to 5~6 cycles/min
- Three initial infeed tables lead to a fully automatic operation from feed to pre-press assembly stand
- F-C05 and F-C06 finger shapers perform automatic scoring, trimming, shaping, and gluing
- F-D01 enables automated workpiece feeding, aided by a steel brush roller that gently flips materials one by one into the pre-press assembly stand

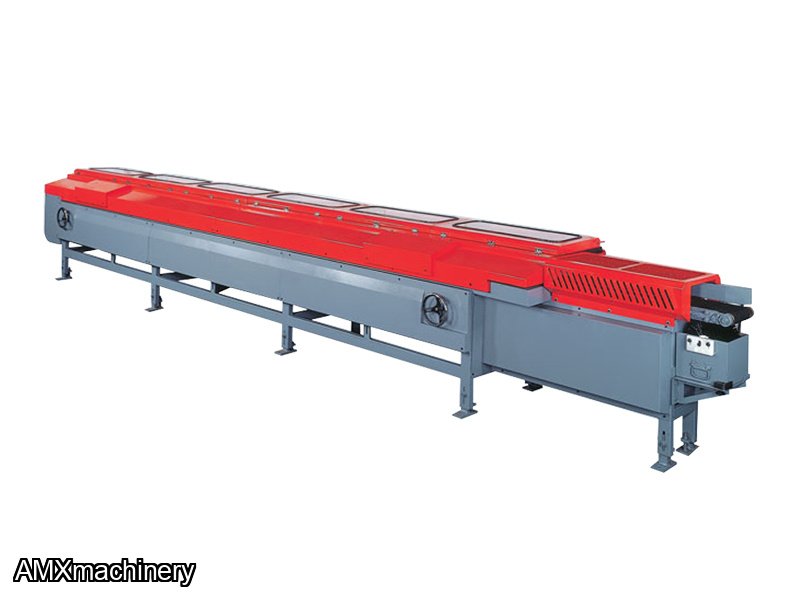

- With the choice of 10 feet or 20 feet in length the F-T03/F-T05 chain type pre-press ensures accurate vertical and horizontal alignment before workpiece is cut to length

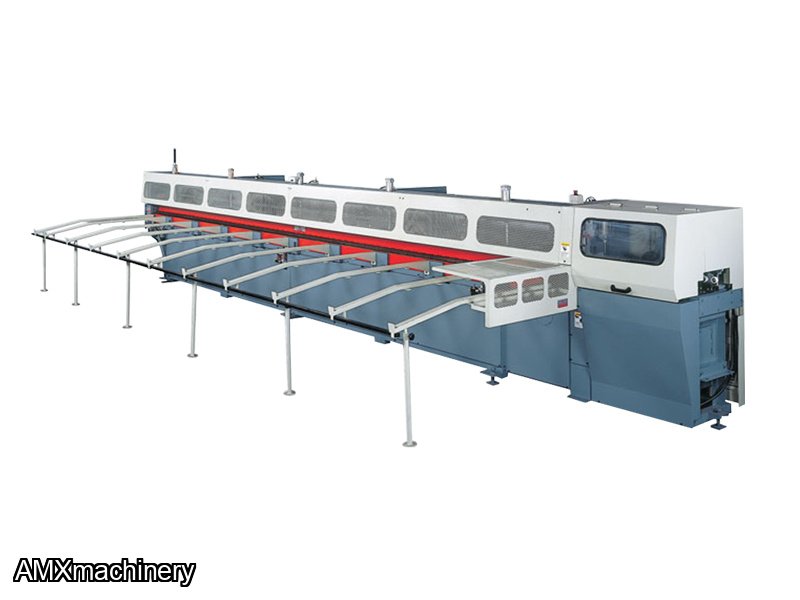

- Synchronized jointing and cutting is performed in a 2-step process within the F-A03 assembly press by employing two hydraulic cylinders at the front and rear to provide an extremely consistent joint
Includes the following:
F-I01 Multi-Stage (Three) Initial Conveyor Tables
Auto Feeding Table | 650 mm (25.6“) |
Brush Wheel Drive Motor | 1 HP x3 |
Machine Dimension (L x W x H) | 3190 x 870 x 970 mm (126 x 35 x 39”) |
Packing Dimension (L x W x H) | 3300 x 970 x 1070 mm (130 x 35 x 43”) |

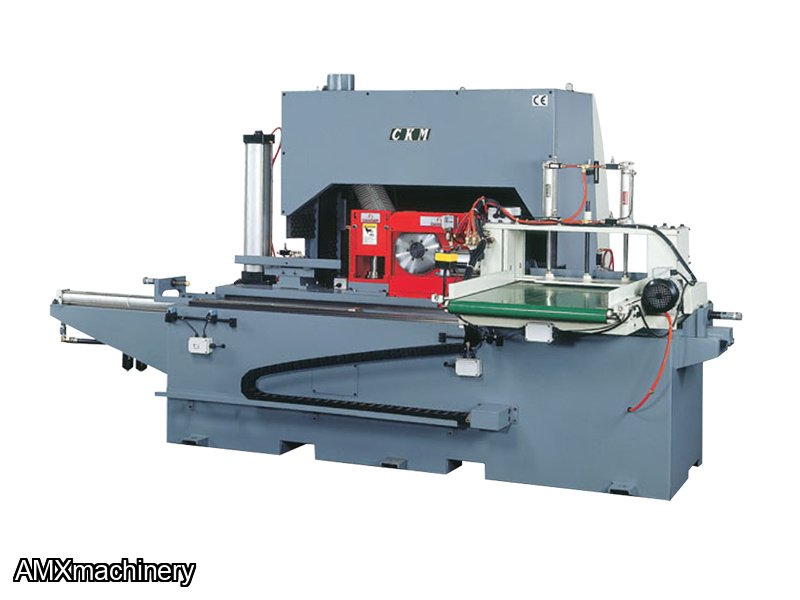

F-C05 Automatic Finger Shaper – Right End
Max. available width working table | 650 mm (25.6”) |
Range of workpiece length | 150~1000 mm (5.9~39.4”) |
Range of workpiece height | 30~160 mm (1.2~6.3”) |
Table moving speed | 66 FPM |
Trimming saw speed | 2800 RPM, 3400 RPM |
Finger cutter speed | 5000 RPM |
Scoring saw speed | 2800 RPM, 3400 RPM |
POWER REQUIRED | |
Table-drive motor | 1/2 HP |
For conveyor motor | 1/2 HP |
Scoring saw motor | 1 HP |
Trim saw motor | 10 HP |
Shaper cutter motor | 20 HP |
Dia of Cutter (in/out) | ø70 / ø160 mm (ø2.8 / ø6.3) |
