Identificador: 223
Abierta
Descripción

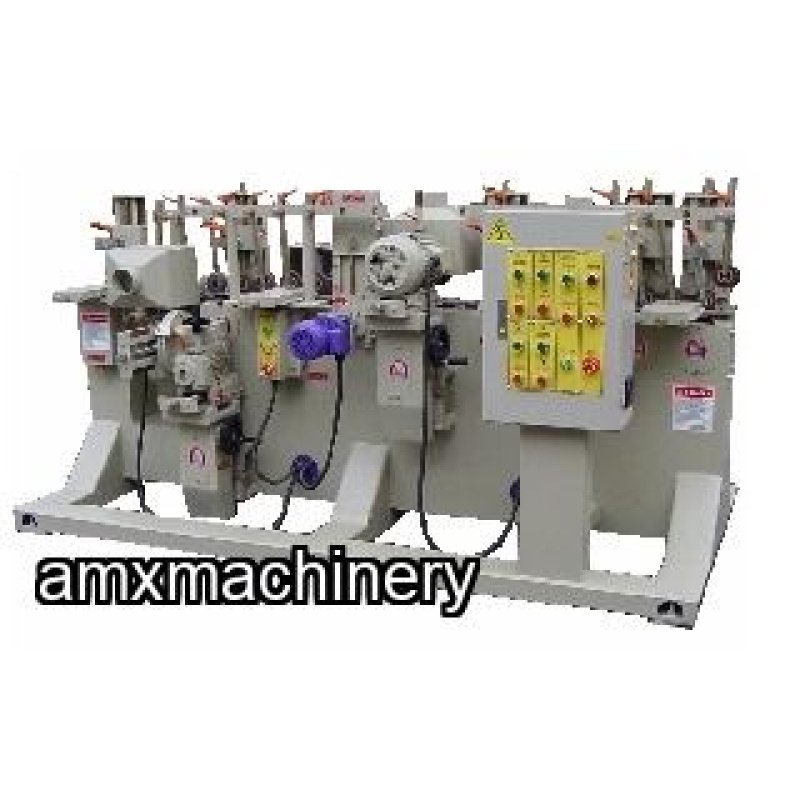

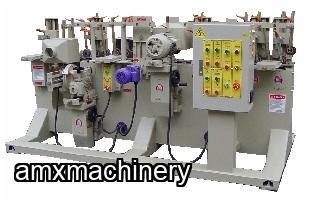

PARTE # 2TA-SD-904MU – LIJADORA DE MOLDURAS – 4 CABEZALES
Nueva con garantía
Variable feeding 20" to 80" to get different setup easily.
Every sanding head can use profile disc, brush wheel or sand belt with sponge drum for fine, detail finish.
Max. sanding thickness 4".
Min. sanding length 13".
Sanding spindle 1-1/4" dia. 2 HP.
Max sanding wheel 12" dia.
SPECIFICATIONS |
|
Wheel, Belt Head |
|
Brush Wheel Drive Motor | 2 HP |
Brush Tilts | 90° ~ 180° |
Sanding Belt | 3" x 20" |
Sanding Wheel Dia. Max | 8" |
Sanding Spindle Dia. | 1" |
Spindle Speed | 0 ~ 3600 RPM |
Profile Platen Belt Head |
|
Range of Workpiece Width | 2" ~ 70" |
Minimum Length of Workpiece | 4" |
Range of Workpiece Thickness | 1/6" ~ 4" |
Designed for high production moulding sanding of straight stick of solid wood, veneered panel and finish between coats with profile, angular, or straight edge.

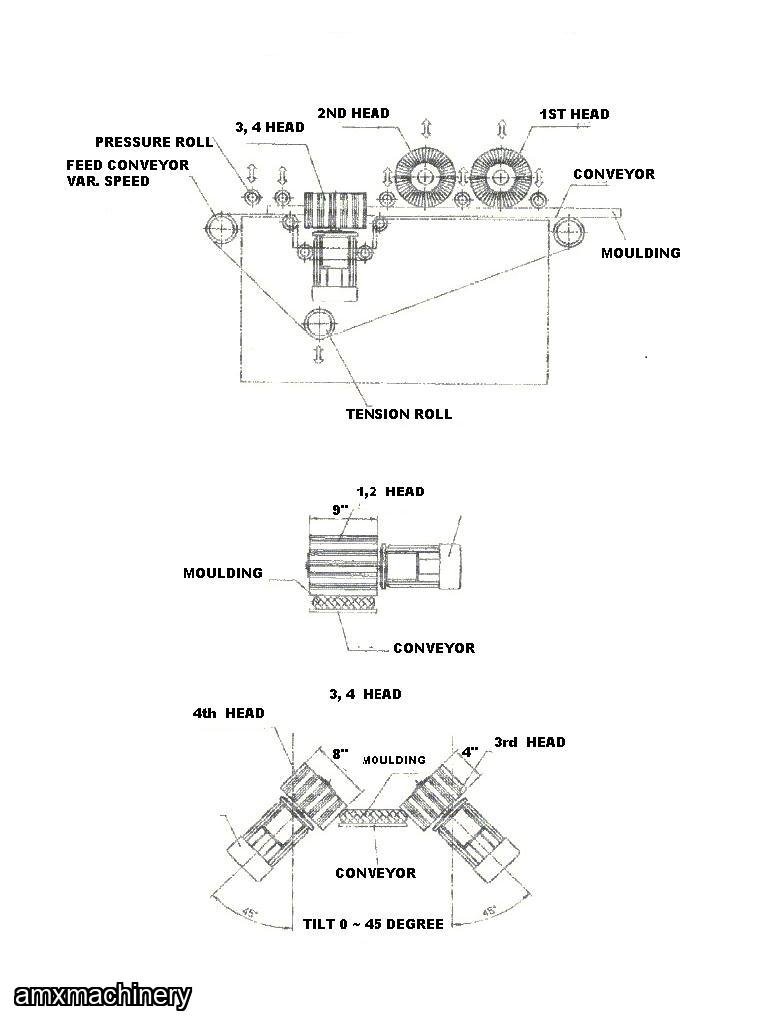

Workpiece is through feed with power spring load pressure rolls at top, without sliding for irregular surface.

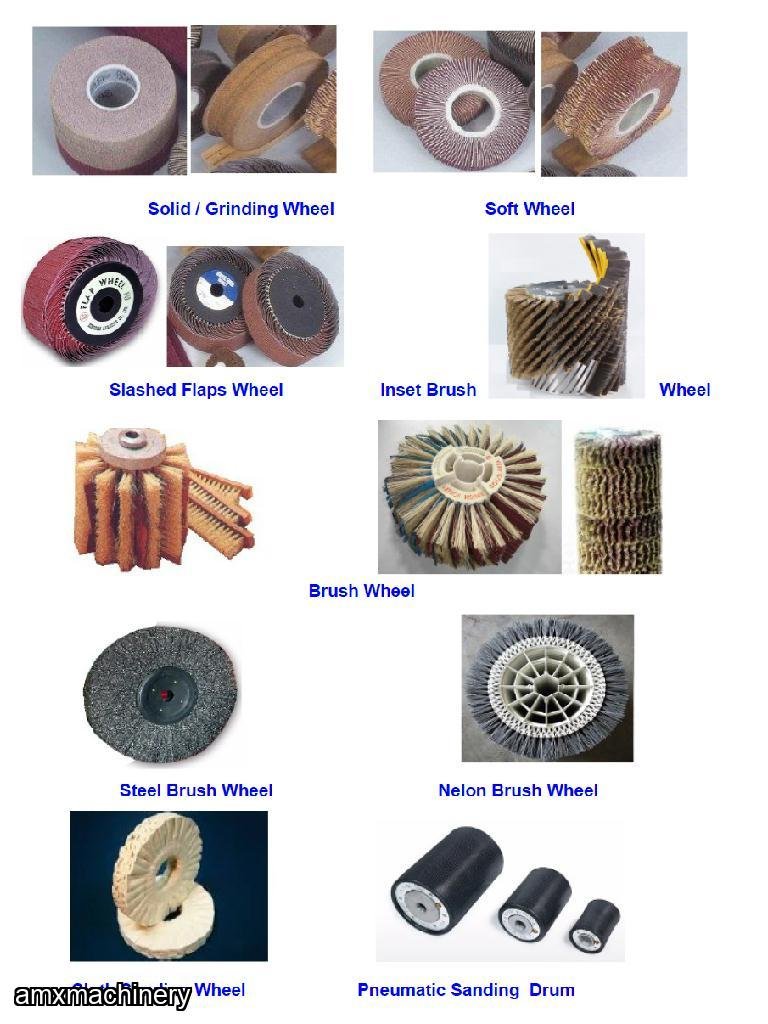

The brush, flap wheel, pneumatic drum or profile sanding head to cover all the profile sanding.

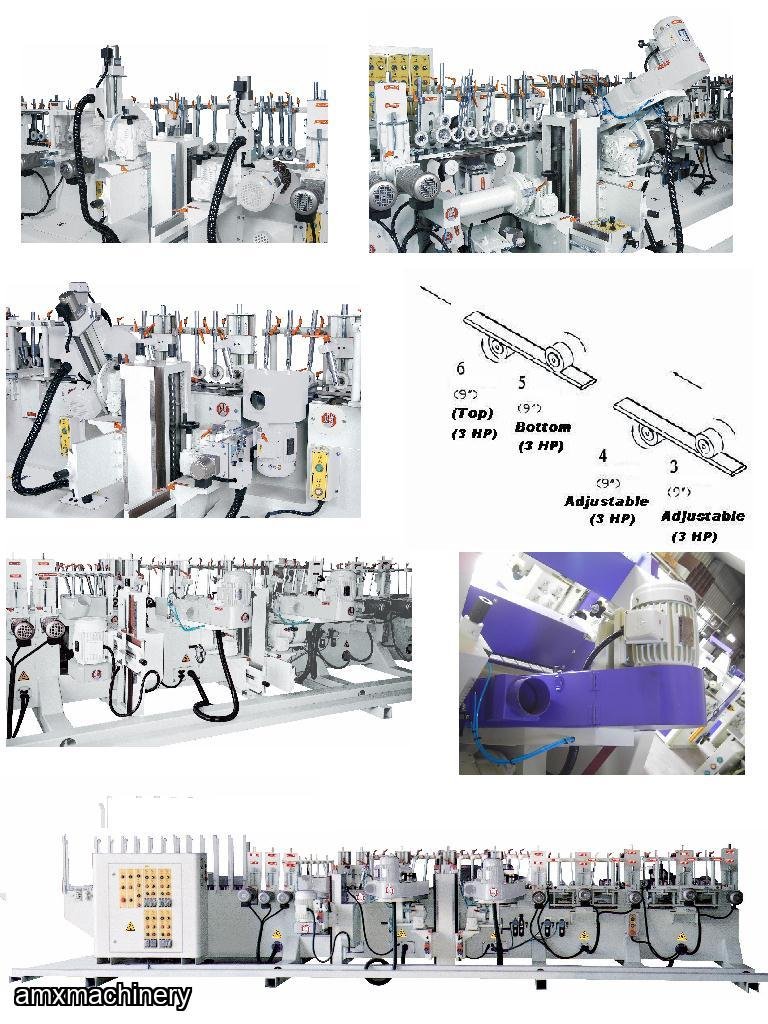

Top sanding head can be adjusted in & out, up & down.
Side sanding head can be adjusted tilt, forward & backward and up & down.
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
LIJADORA DE 8 RODILLOS - QUICKWOOD
PARTE: 12299 - LIJADORA DE 8 RODILLOS
- QUICKWOOD
USADA -
BUENAS CONDICIONES
Technical
Specifications:
Throughfeed:
2-12 m/min.
(8)
spindles
300-1150
RPM spindle speed
3-16 RPM
rotation speed
540mm
spindle length
(6) dust
collection ducts 2100kg
Dimensions 2240 x 2630 x 2050 mm
AMXmachinery
INSERTADORA TACHUELAS
PARTE: AMX-AG-001 - INSERTADORA DE TACHUELASNueva con garantiaSe tiene que ajustar la manija a la posicion correcta.Para asegurar la correcta posicion baje el cabezal hasta que toque la mesa.Colocar las tachuelas adecuadamente es importante mientras usa la maquinaSostenga la tachuela con 2 dedos en la cavidad tan derecha como sea posible, con la practica este proceso se hace más fácil.Centre la placa en la base usando una tira pequeña de tape para que no se mueva.Es recomendable hacer agujero...
AMXmachinery
AFILADORA WEINIG R934
PARTE # 11535 - AFILADORA - WEINIG R934En buenas condiciones de operacion
AMXmachinery
OPTI-CONTROL - WEINIG - OCMS
PARTE: 12382 - OPTI-CONTROL - WEINIG
- OCMS
USADA - BUENAS
CONDICIONESElectronic
Measuring and Indicating SystemMaximum
Measuring Width: 13"Maximum
Tool Diameter: 11-3/4"Electronic
measuring via electronic digital readouts for radial and axial measurementsWired
110V Single Phase
Year:
2003
