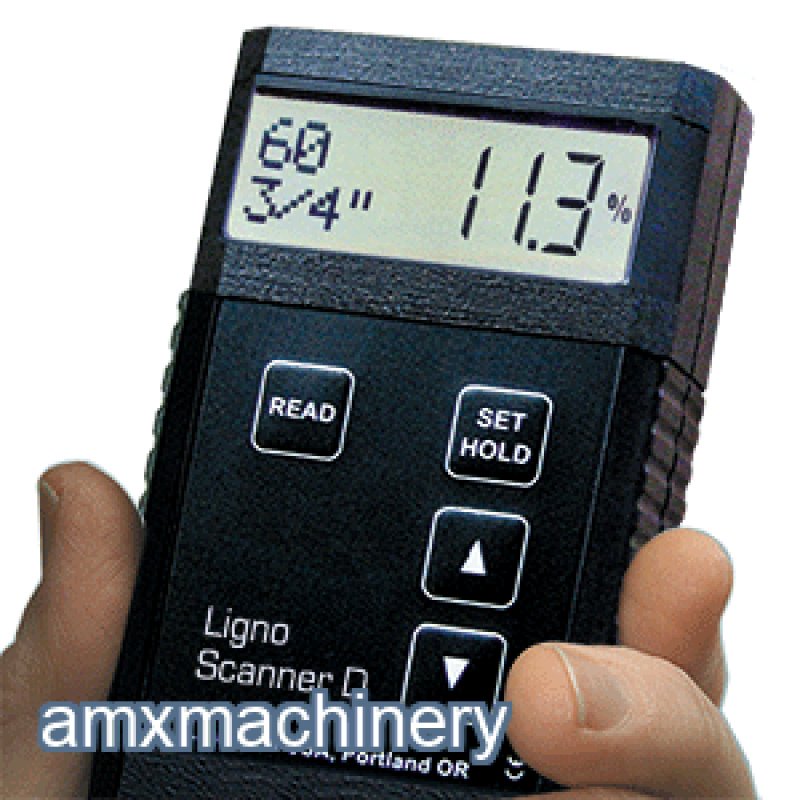

MEDIDOR DE HUMEDAD PARA MADERA – SIN PINS - LIGNOMAT – LIGNO-SCANNER D

PARTE: 2LI-D - MEDIDOR DE HUMEDAD PARA MADERA – SIN PINS - LIGNOMAT – LIGNO-SCANNER D

Nuevo con garantía

The measuring depth of a pinless meter is crucial. Moisture readings are too low, when the Scanner is placed on a work piece which is thinner than the measuring depth. Scanners never measure any deeper than the measuring depth.

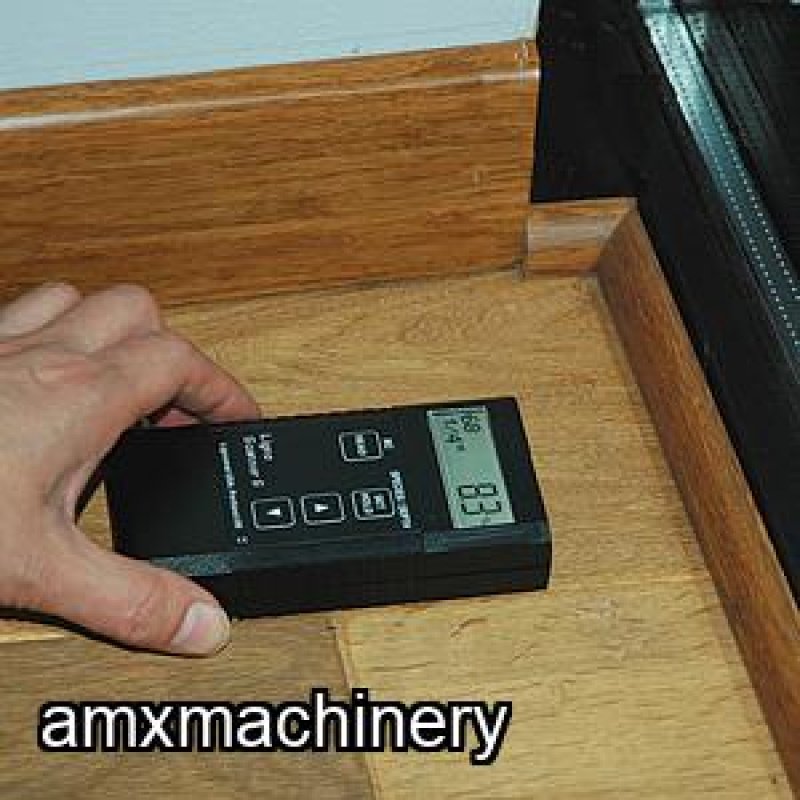

The entire measuring pad has to be on a flat and smooth surface for accurate readings

*Species Corrections for Ligno-Scanners and Ligno-VersaTec correlate directly to the Specific Gravity. Example: For a specific gravity of 0.57 (0.57g/cm 3 )set species # 57. Specific Gravity for most wood species can be found on the Internet. We also include a Species Chart with recommended settings.

The Ligno-Scanners SDM and the Ligno-VersaTec have calibrations built-in for drywall and concrete and a reference scale for non-wood building materials.

Measuring range: 5-60% dependent upon Species. For hardwoods the Scanners read lower than 5%, for softwoods the Scanners start reading above 5%. Resolution of read-out: 0.1% Less accurate above Fiber Saturation Point at 30%.

Wood temperature correction is not necessary.

1 9-V Battery for 3000 Readings, Battery included

Size: 1/2″H x 2″L x 5″W (for Scanner LD width is 2 7/8″) Weight: 8 ozs

Comes in a Carry Pouch with Belt Loop.
