Identificador: 1692
Abierta
Descripción

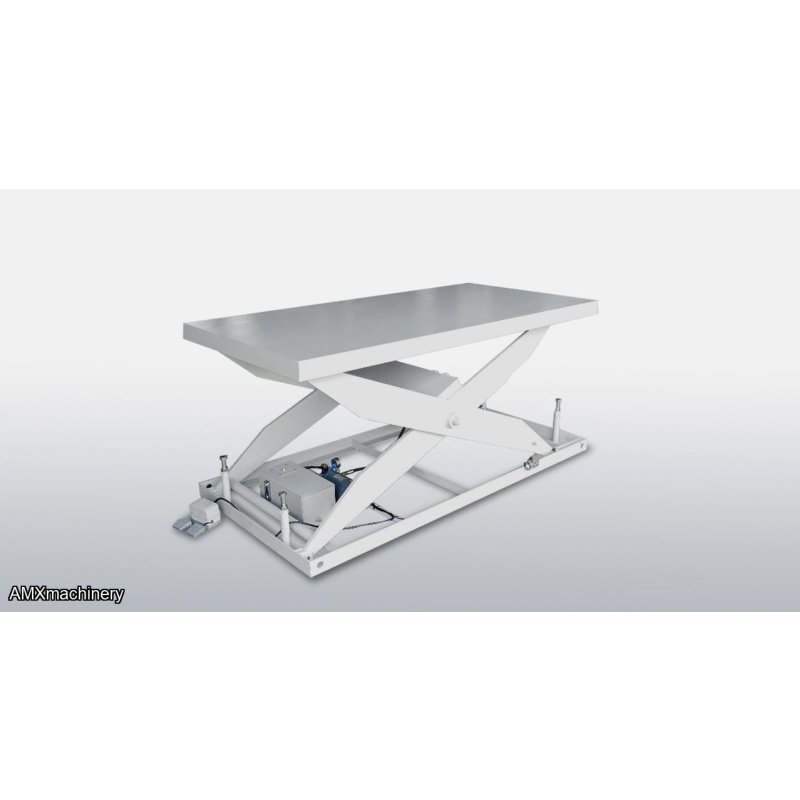

PARTE: 2CK-PH36-2 - MESA DE TIJERA - 3' x 6'
Is strongly built with a massive steel frame that provides maximum durability and is capable of lifting up to 4400 lbs. It is hydraulically operated and controlled by a foot pedal for operator convenience. The PH36-2 is adjustable in height from 12” up to 59”. It is ideal for staging material for feeding into various woodworking machines like sanders, glue spreaders, panel saws, ripsaws, and more.
- 4400 lifting capacity
- 3’ x 6’ deck size
- 12” to 59” lifting capacity
- Robust welded steel frame
- Powerful 2HP hydraulic motor for raising & lowering the scissor liftConvenient foot pedal operation
|
Deck Size |
35” x 71” (900 x 1800 mm) |
|
Lowered Height |
12” (300 mm) |
|
Raised Height |
59” (1500 mm) |
|
Travel |
47” (1200 mm) |
|
Motor |
2 HP |
|
Capacity |
4400 lbs (2000 kgs) |
|
Electrics |
115 Volt – Single phase |
