Identificador: 250 Abierta

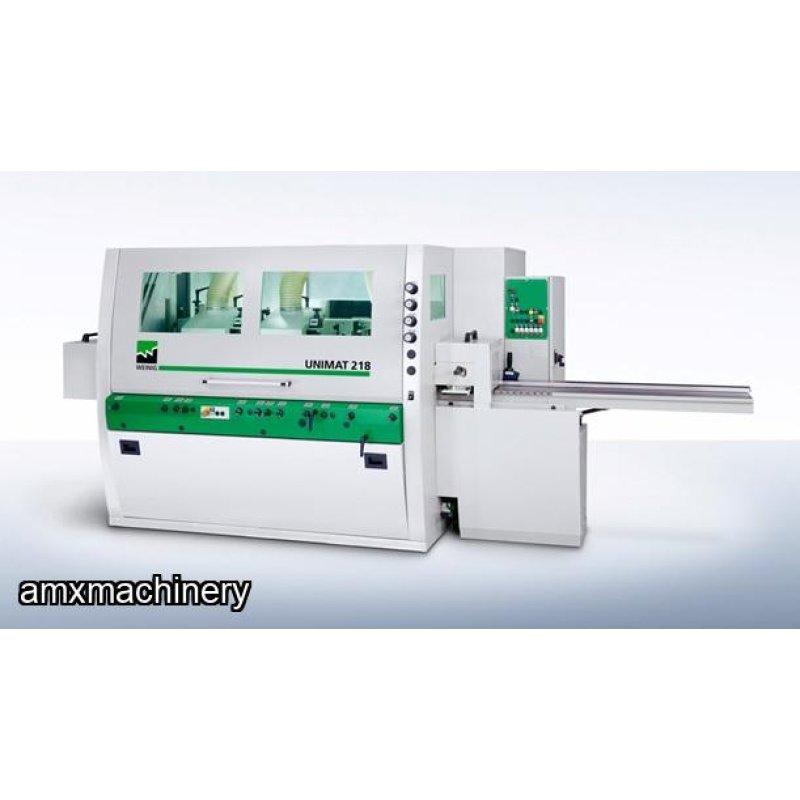

MOLDURADORA 5 CABEZALES
MOLDURADORA 5 CABEZALES
MOLDURADORA 5 CABEZALES
MOLDURADORA 5 CABEZALES
MOLDURADORA 5 CABEZALES
MOLDURADORA 5 CABEZALES
MOLDURADORA 5 CABEZALES

MOLDURADORA 5 CABEZALES

AMXmachinery

Contacte al Vendedor
Descripción

PARTE # 12WG-UNIMAT 217 - MOLDURADORA - 5 CABEZALES

MOLDURADORA AUTOMATICA

5 CABEZALES

CARACTERISTICAS GENERALES:

KW (HP) rpm Tool cutting circle

1 - 7,5 (10) with Electronic Brake 6000 5“ – 5-11/16“

2 - 11 (15) with Electronic Brake 6000 5“ – 7-7/8“

3 - Joint Motor together with Right 6000 5“ – 7-7/8“

4 - 11 (15) with Electronic Brake 6000 5“ – 7-7/8“

5 - 7.5 (10) with Electronic Brake 6000 5“ – 7-7/8“



Tool arrangement BRLTB

Working width 3/4“ – 9“

Working height 5/16“ – 4-3/4“

(with tool cutting circle 5”)

Feed Speed-variable with inverter 20 – 100 feet per minute

DigiSet (double mechanical readouts) for left and top radial

adjustments. One readout is for the tool size and the other for the

finished wood dimension.

Five feed roller shafts in standard

One driven steel rollers in the machine table

One driven roller in the out-feed table

Axial setting range of feed roller opposite the left tool holder 1 3/8”.

Extended feed roller shaft opposite the left tool holder 6”.

Axial setting range of vertical spindle 3 -1/8 in.

Axial setting range of horizontal spindle 1 -3/4 in.

(1st bottom 3/16 in.)

All spindles diameter 1 - 1/2"

Mechanical readouts on top spindle chip-breaker and pressure shoe.

5 Additional set of spacing collars, clamping length 6-11/16”,

diameter 1-1/2"

Operating voltage- 3 phase, 460 Volt, 60 Cycles

according to US regulations

Straightening table, 6-1/2 ft

(incl. edge jointing fence)

Machine table and fences chromium-plated (excluding infeed table and special table plates)

Electric height adjustment of the feed

Central position of lubrication points at the front side of the machine

One interior light in the safety hood

The Illustrations in this offer can include special equipment, which do

not belong to the range of your offer.

The offer is made pursuant to our General Standard Terms and Conditions.

Safety and Noise Protection:

Electromagnetic interlocking of the safety hood (the hood may be

opened only after the spindles come to a complete stop,

(which is approximately 15 seconds with the “Smart” Spindle Brakes)

Pago y Devoluciones
Forma de pago
N/A
Publicar mensaje
Ingresar to ask the seller a question.
DOBLADORA ESTANDAR - 8 PIES PARA CAL. 14 - EN LAMINA NEGRA
AMXmachinery
DOBLADORA ESTANDAR - 8 PIES PARA CAL. 14 - EN LAMINA NEGRA
TALADRO MULTIPLE 21
AMXmachinery
TALADRO MULTIPLE 21
PARTE # 1VT-ALFA21CLASSIC - TALADRO MULTIPLE 21 BROCASNUEVO CON GARANTIACantidad de mandriles: 21Peso neto aproximado: 264 KgDistancia entre centro de mandriles: 32 mmDistancia entre el primer y último mandril: 640 mmProfundidad máxima de taladrado: 75 mmDimensiones de la mesa: 860 x 500 mmDimensiones máximas de la pieza: 800x3000 mmVelocidad de los mandriles: 2800 r.p.mFuerza del motor: 2.5 H.P.Presion de aire requrida: 6.8
LIJADORA DE BANDA Y DISCO DE BANCO
AMXmachinery
LIJADORA DE BANDA Y DISCO DE BANCO
PARTE # SIL-DC-BDS69-B - LIJADORA DE BANDA Y DISCONUEVA CON GARANTIAMOTOR: 1 HP, 110V, 60 Hz, 1 FASEDIMENSIONES DE LA MESA: 7" X 16"DIMENSIONES DE LA MESA DEL DISCO: 6-1/2" X 10"DIAMETRO DEL DISCO LIJADOR: 9"DIMENSIONES DE LA BANDA LIJA: 6" X 48"INCLINACION DE LA MESA: 45 GRADOSPESO: 35 KGSEMPAQUE: 1 CAJA
PRENSA ENSAMBLADORA FINGER JOINT - 4000 MM LARGO (13 PIES)
AMXmachinery
PRENSA ENSAMBLADORA FINGER JOINT - 4000 MM LARGO (13 PIES)
PARTE: 2TA-SFJ-4000S - PRENSA ENSAMBLADORA FINGER JOINT - 4000 MM LARGO (13 PIES) Nueva con garantía Se pueden cotizar tamaños más pequeños de largo FEATURES: MAX. ASSEMBLY LENGTH 4000 MM MAX. ASSEMBLY WIDTH 150 MM MAX. ASSEMBLY THICKNESS 100 MM MAX. JOINTING FORCER 7500 KG HYDRAULIC PUMP POWER 1.5 KW (2.2 KW) SAW BLADE SPINDLE POWER 1.5 KW SAW BLADE SPINDLE SPEED 4500 RPM SAW BLADE DIAMETER 305 MM MACHINE DIMENSIONS: 4370 X 800 X 1340 MM
