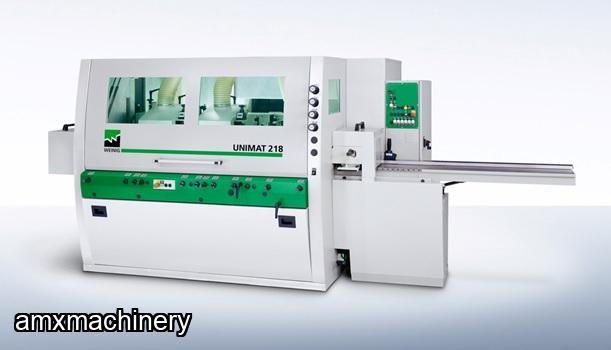

MOLDURADORA 5 CABEZALES

PARTE # 12WG-UNIMAT 217 - MOLDURADORA - 5 CABEZALES

MOLDURADORA AUTOMATICA

5 CABEZALES

CARACTERISTICAS GENERALES:

KW (HP) rpm Tool cutting circle

1 - 7,5 (10) with Electronic Brake 6000 5“ – 5-11/16“

2 - 11 (15) with Electronic Brake 6000 5“ – 7-7/8“

3 - Joint Motor together with Right 6000 5“ – 7-7/8“

4 - 11 (15) with Electronic Brake 6000 5“ – 7-7/8“

5 - 7.5 (10) with Electronic Brake 6000 5“ – 7-7/8“

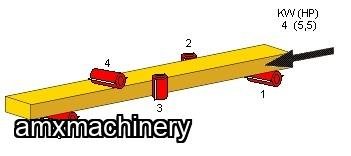

Tool arrangement BRLTB

Working width 3/4“ – 9“

Working height 5/16“ – 4-3/4“

(with tool cutting circle 5”)

Feed Speed-variable with inverter 20 – 100 feet per minute

DigiSet (double mechanical readouts) for left and top radial

adjustments. One readout is for the tool size and the other for the

finished wood dimension.

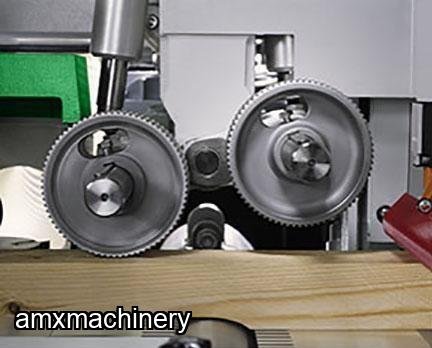

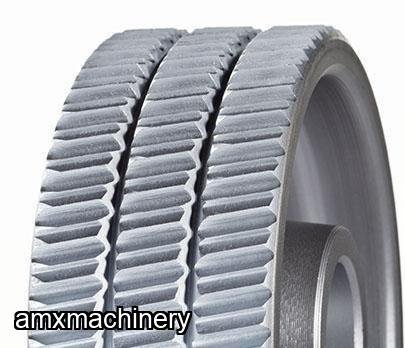

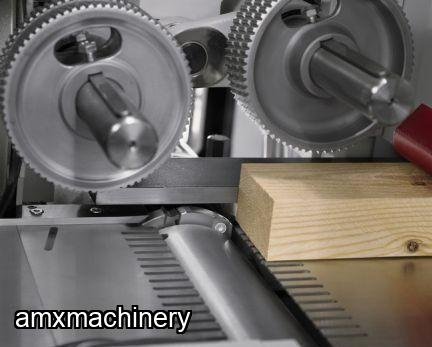

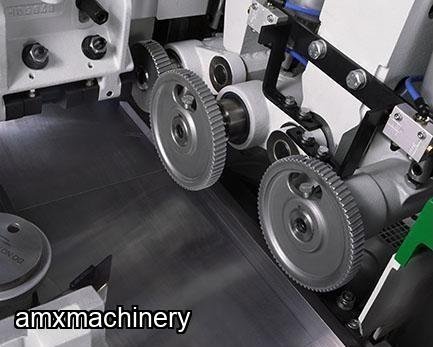

Five feed roller shafts in standard

One driven steel rollers in the machine table

One driven roller in the out-feed table

Axial setting range of feed roller opposite the left tool holder 1 3/8”.

Extended feed roller shaft opposite the left tool holder 6”.

Axial setting range of vertical spindle 3 -1/8 in.

Axial setting range of horizontal spindle 1 -3/4 in.

(1st bottom 3/16 in.)

All spindles diameter 1 - 1/2"

Mechanical readouts on top spindle chip-breaker and pressure shoe.

5 Additional set of spacing collars, clamping length 6-11/16”,

diameter 1-1/2"

Operating voltage- 3 phase, 460 Volt, 60 Cycles

according to US regulations

Straightening table, 6-1/2 ft

(incl. edge jointing fence)

Machine table and fences chromium-plated (excluding infeed table and special table plates)

Electric height adjustment of the feed

Central position of lubrication points at the front side of the machine

One interior light in the safety hood

The Illustrations in this offer can include special equipment, which do

not belong to the range of your offer.

The offer is made pursuant to our General Standard Terms and Conditions.

Safety and Noise Protection:

Electromagnetic interlocking of the safety hood (the hood may be

opened only after the spindles come to a complete stop,

(which is approximately 15 seconds with the “Smart” Spindle Brakes)
