Description
PARTE # 4KU-SWT-XL4 - MOLDURADORA AUTOMATICA - 4 CABEZALES - KUPER
PARTE # 4KU-SWT-XL5 - MOLDURADORA AUTOMATICA - 5 CABEZALES - KUPER
PARTE # 4KU-SWT-XL6 - MOLDURADORA AUTOMATICA - 6 CABEZALES - KUPER
Nueva con garantia
Hecha en Alemania
Llamenos para recibir toda la informacion y una cotizacion formal
The ideal planing and moulding machine for both simple and complex tasks.
Feed speed 2 to 60 m/min
Spindle arrangement 1 – 10 spindles freely selectable

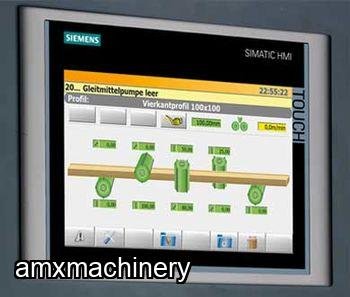

The optional control system allows you to individually customise, save and repeat your work processes

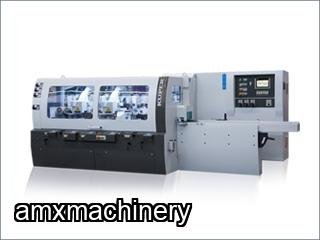

Efficient and versatile: KUPER SWT XL.
The ideal planing and moulding machine for both simple and complex tasks. Precise, low-maintenance, with energy efficient drive, even at maximum power. That is what we call outstanding efficiency.
Advantages at a glance:

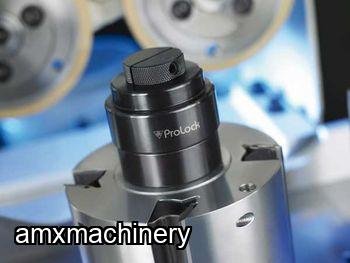

- Practical quick-action lock system ProLock®
- Hard-chromium plated infeed and machine tables
- Pneumatically damped pressure shoe downstream of the top shaft, improved dynamics due to linear guides

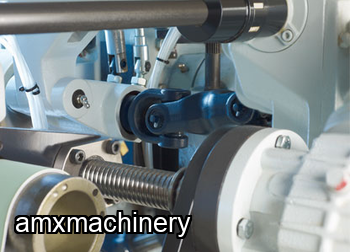

- Continuous feed, power transmission via several worm drives and cardan joints
- Two driven double mounted infeed and outfeed rollers in the machine table
- Infinitely variable feed speed control via frequency converter, flexible adjustment by potentiometer
- Electrical height adjustment of the feeding device carrier
- Electronic start/stop system for all spindle motors
- Swivel mounted feed cartridge in front of the right-hand spindle for easy tool changing
- Axial adjustment of the vertical spindle 20 mm
- Lubricant pump for table lubrication
Basic equipment | Options | |
Working width | 15 – 230 mm | 10 – 350 mm |
Working height | 15 – 150 mm | 5 – 230 mm |
Feed speed | 6 – 24 m/min. | 2-60 m/min. |
Axial adjustment path | horizontal spindle 20 mm vertical spindle 60 mm | horizontal spindle up to 60 mm vertical spindle 80 mm |
Spindle arrangement | 1 – 10 spindles | 1 -10 spindles |
Spindle power rating | bottom 5.5 kW
| bottom up to 18 kW right up to 11 Kw left up to 11 kW top up to 18.5 kW |
Universal spindle | 7.5 kW | up to 11 kW |
Saw spindle | 11 kW | up to 30 kW |
Spindle rotational speed | 6,000 U/min. | 2,000 – 9,000 U/min. |
Spindle diameter | 40 mm | 50 mm |
Tool diameter | 112 – 200 mm | bottom up to 250 mm |
Profile-groove depth | up to 20 mm | up to 35 mm |
