Identificador: 2077
Abierta
Descripción

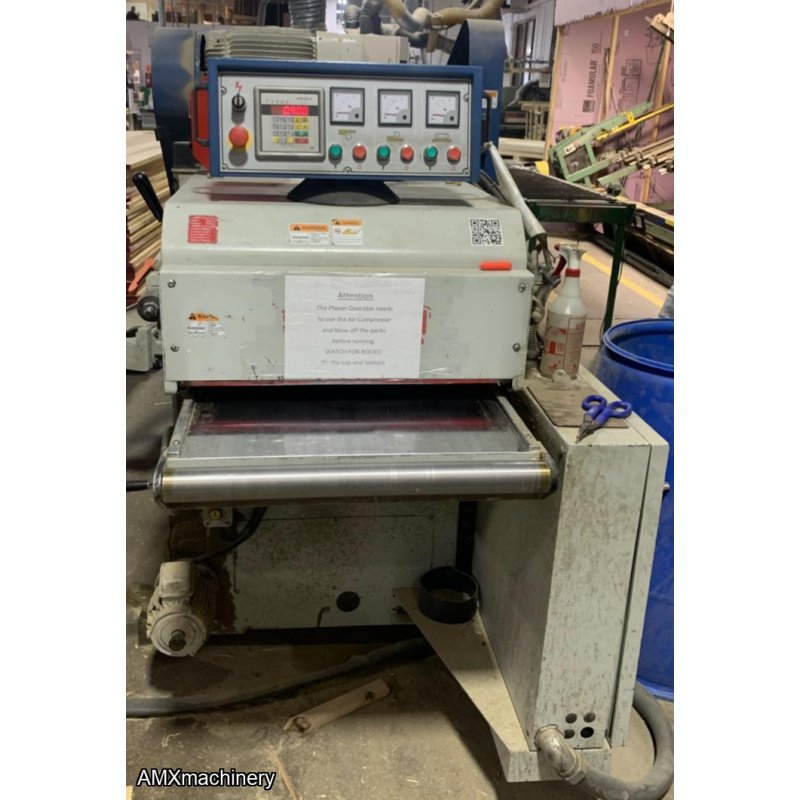

PARTE: 12439 - CEPILLO 2 CARAS - ANCHO 25” - CANTEK
USADO - EN BUENAS CONDICIONES
Manufactured in 2015
• 50.5 Total HP
• Spring loaded conveyor pin system
• Spiral insert knife cutterheads with
two sided solid carbide knives
• Digital electronic thickness
adjustment
• 25” Wide x 8” thick capacity
• Inverter variable feed speeds
• Sectional chip breaker and feed roller
before top head
• Removeable bottom head for knife change
• Chain feed drive
• Auto conveyor lubrication
• New replacement cost over $36,000.00
• Currently in storage, will load on truck
• Good condition, As taken from service
Maximum working width 25″
Maximum working thickness 8″
Minimum working thickness 0.315"
Minimum workpiece length 12.2″
Bottom head motor 20 HP
Top planing head motor 25 HP
Feed motor 5 HP
Table elevation motor 1/2 HP
Cutterhead diameter 4"
Knife dimensions 30mm x 12mm x 1.5mm w/ bevels (96 pcs per head)
Cutterhead speed 5400 RPM
Feed speed (variable) 26-80
FPM Dust ports 2 @ 6”
Table dimensions 27" x 103" (32" from the floor)
Machine voltage
460/3/60 = 63 amps
230/3/60 = 125 amps
Prewired 460
Volt Machine dimensions (LxWxH) 105″ x 45.1″ x 67.7″
Net weight 6600 lbs
