ID: 2426
Open
Description

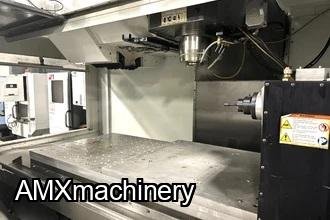

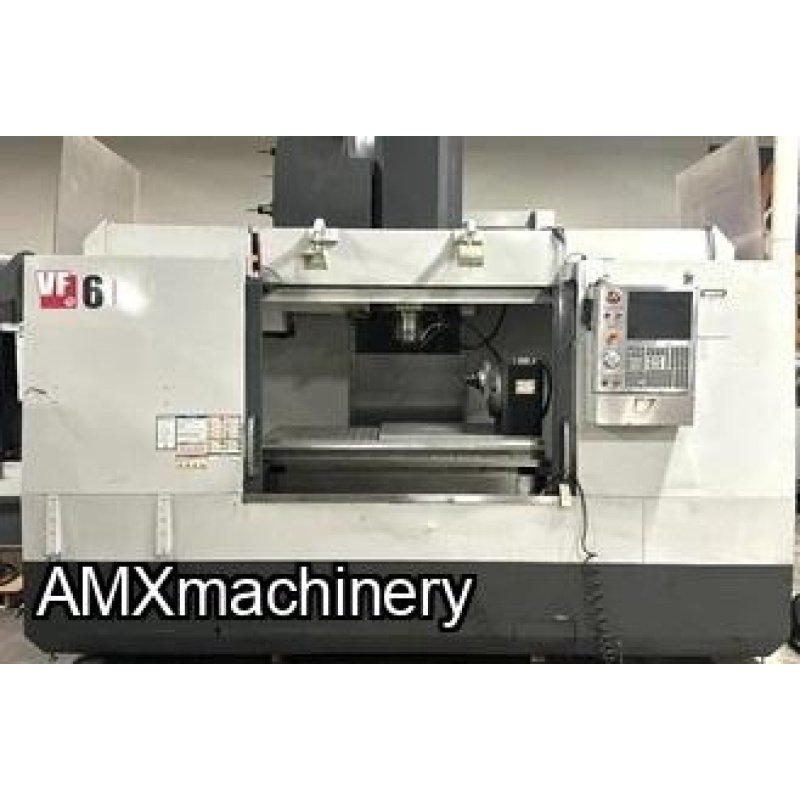

PARTE: 12558 - CENTRO DE MAQUINADO - 2014 HAAS VF-6SS
USADO – MUY BUENAS CONDICIONES
SPECIFICATIONS:
TABLE LENGTH 64"
TABLE WIDTH 28"
TABLE CAPACITY 4,000 lb
X-AXIS TRAVEL 64"
Y-AXIS TRAVEL 32"
Z-AXIS TRAVEL 30"
SPINDLE SPEED 10,000 RPM
SPINDLE MOTOR 30 hp
SPINDLE TAPER CAT 50
TOOL CAPACITY (ATC) 30
ROTARY OR TRUNNION Yes
APPROX MACHINE WEIGHT 22,500 lb
APPROX MACHINE DIMENSIONS 195" X 102" X 130"
EQUIPPED WITH:

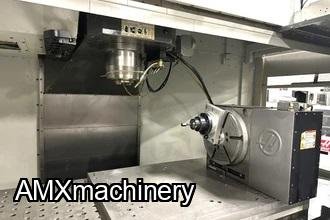

HAAS HRT310 ROTARY TABLE
4TH AXIS DRIVE & WIRING
2-SPEED GEARBOX
10,000 RPM SPINDLE
SIDE-MOUNT TOOL CHANGER (30 ATC)
THROUGH-SPINDLE COOLANT
PROGRAMMABLE COOLANT
CHIP AUGER
HIGH-INTENSITY LIGHTING
RIGID TAPPING
USB PORT
