Identificador: 2292 Abierta
REASERRADORA VERTICAL – CON ALIMENTADOR - VOLANTES 32”
REASERRADORA VERTICAL – CON ALIMENTADOR - VOLANTES 32”
REASERRADORA VERTICAL – CON ALIMENTADOR - VOLANTES 32”
REASERRADORA VERTICAL – CON ALIMENTADOR - VOLANTES 32”

REASERRADORA VERTICAL – CON ALIMENTADOR - VOLANTES 32”

AMXmachinery1

Contacte al Vendedor
Descripción

PARTE: 2CK-HB-800 - REASERRADORA VERTICAL – CON ALIMENTADOR - VOLANTES 32”

NUEVA CON GARANTIA

A 4” wide blade is driven by a powerful 20HP motor for precision straight resawing.  Equipped with a 1HP power variable speed feed unit which is pneumatically actuated to provide consistent feeding of the workpiece.  The feed speed can be variably adjusted from 3 to 56 FPM in accordance with the material type and thickness.

  • Cast iron upper and lower saw wheels are precision machined and dynamically balanced
  • Powerful 20HP saw motor
  • 4” wide resaw blade for precise straight resaw cutting
  • Specially designed Bakelite guide blocks provide rigid side blade support for straight cutting

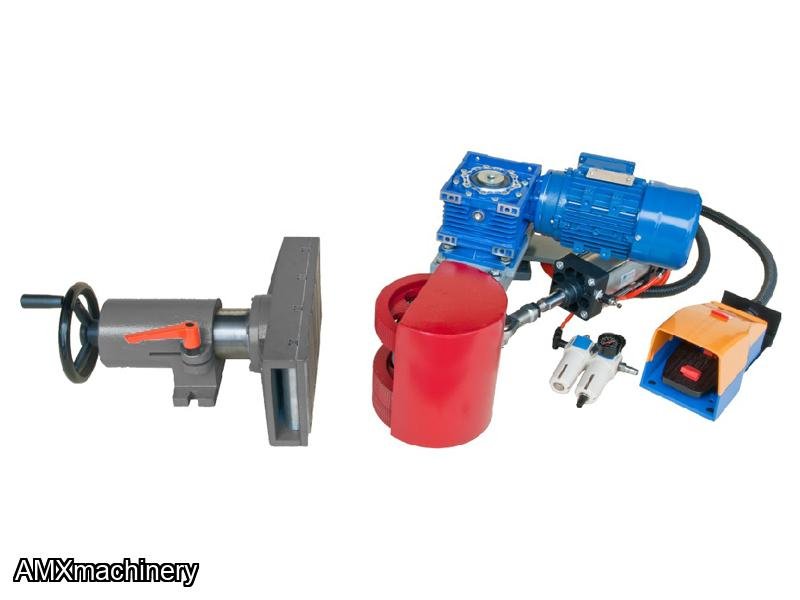

  • 1HP infinitely variable speed feeder with feed speeds from 3~56 FPM ensures consistent feeding of work pieces during resawing operations
  • Feeder is pneumatically actuated by a foot pedal for operator convenience
  • Adjustable roller infeed fence to facilitate with feeding of the workpiece
  • Upper and lower Bakelite guides ensure blade stability for optimum cutting results
  • Heavy fabricated steel machine frame

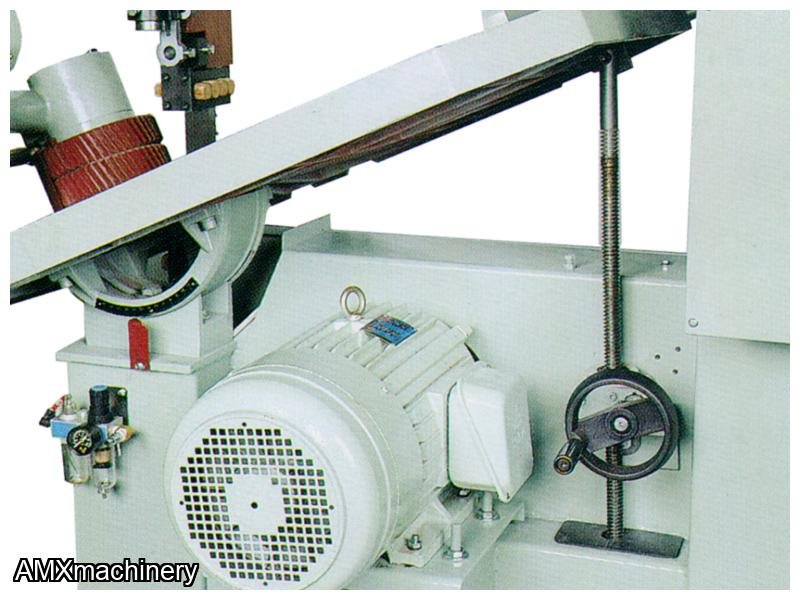

  • Large cast iron worktable is precision ground and can tilt to a maximum of 45o

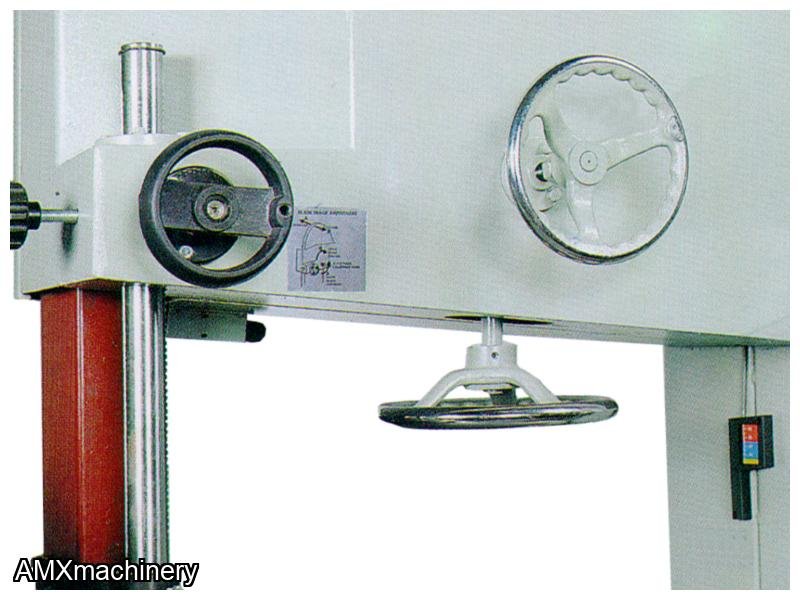

  • Convenient spring blade tension adjustment by means of a handwheel and gauge
  • Foot brake for braking wheels and blade
  • Rack & pinion blade guide adjustment
  • Band wheel is crowned for proper blade tracking and added stability of the blade
  • Blade lubrication system and reservoir for lubricant keeps blades cool
  • Auto Start-Delta control for main motor with emergency stop switch
  • Feed pressure is adjustable
  • Feed roller opening and closing is controlled by a foot switch for operator convenience
  • Knurled steel feed roller for maximum grip

RESAW SPECIFICATIONS

Saw wheel diameter

32”

Motor

20HP

Table size

45 ¼” x 31 ½”

Table tilting

0 – 45o

Throat capacity

30-5/8”

Height capacity

15-3/8”

Blade width

4”

Width of wheel

3.543”

Blade speed

5024 FPM

Blade length

216” to 217-1/8”

Dust hood diameter

4” x 2

Machine weight only

1470 lbs.

Electrics (complete with feeder)

230/3/60 = 54 Amps

460/3/60 = 27 Amps

FEEDER SPECIFICATIONS

Length of roller

6″

Diameter of roller

8″

Feed speed

3 – 56 FPM

Motor

1HP

Air pressure

72 PSI

Fence adjustment

4.72″

Feed opening

6″

Net weight

286 lbs.

RESAW & FEEDER DIMENSIONS

Machine & feeder net weight

1756 lbs.

Shipping weight

2266 lbs.

Shipping dimensions

100” x 33 ½” x 55 ½”
