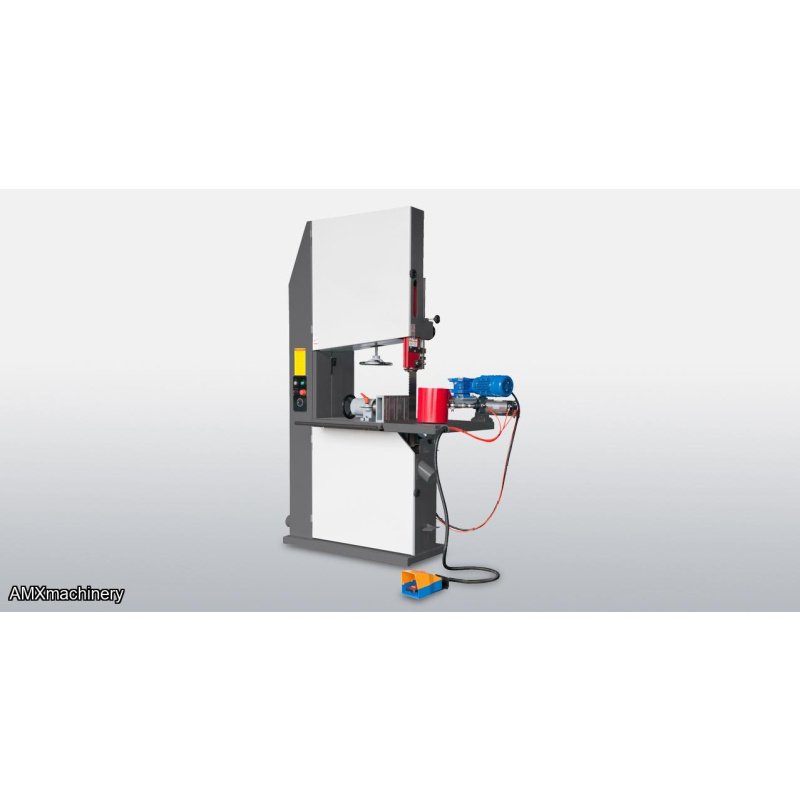

PARTE: 2CK-HB-800 - REASERRADORA VERTICAL – CON ALIMENTADOR - VOLANTES 32”
AMXmachinery1
Description
PARTE: 2CK-HB-800 - REASERRADORA VERTICAL – CON ALIMENTADOR - VOLANTES 32”
NUEVA CON GARANTIA
A 4” wide blade is driven by a powerful 20HP motor for precision straight resawing. Equipped with a 1HP power variable speed feed unit which is pneumatically actuated to provide consistent feeding of the workpiece. The feed speed can be variably adjusted from 3 to 56 FPM in accordance with the material type and thickness.
- Cast iron upper and lower saw wheels are precision machined and dynamically balanced
- Powerful 20HP saw motor
- 4” wide resaw blade for precise straight resaw cutting
- Specially designed Bakelite guide blocks provide rigid side blade support for straight cutting
- 1HP infinitely variable speed feeder with feed speeds from 3~56 FPM ensures consistent feeding of work pieces during resawing operations
- Feeder is pneumatically actuated by a foot pedal for operator convenience
- Adjustable roller infeed fence to facilitate with feeding of the workpiece
- Upper and lower Bakelite guides ensure blade stability for optimum cutting results
- Heavy fabricated steel machine frame
- Large cast iron worktable is precision ground and can tilt to a maximum of 45o
- Convenient spring blade tension adjustment by means of a handwheel and gauge
- Foot brake for braking wheels and blade
- Rack & pinion blade guide adjustment
- Band wheel is crowned for proper blade tracking and added stability of the blade
- Blade lubrication system and reservoir for lubricant keeps blades cool
- Auto Start-Delta control for main motor with emergency stop switch
- Feed pressure is adjustable
- Feed roller opening and closing is controlled by a foot switch for operator convenience
- Knurled steel feed roller for maximum grip
RESAW SPECIFICATIONS
|
Saw wheel diameter |
32” |
|
Motor |
20HP |
|
Table size |
45 ¼” x 31 ½” |
|
Table tilting |
0 – 45o |
|
Throat capacity |
30-5/8” |
|
Height capacity |
15-3/8” |
|
Blade width |
4” |
|
Width of wheel |
3.543” |
|
Blade speed |
5024 FPM |
|
Blade length |
216” to 217-1/8” |
|
Dust hood diameter |
4” x 2 |
|
Machine weight only |
1470 lbs. |
|
Electrics (complete with feeder) |
230/3/60 = 54 Amps |
|
460/3/60 = 27 Amps |
FEEDER SPECIFICATIONS
|
Length of roller |
6″ |
|
Diameter of roller |
8″ |
|
Feed speed |
3 – 56 FPM |
|
Motor |
1HP |
|
Air pressure |
72 PSI |
|
Fence adjustment |
4.72″ |
|
Feed opening |
6″ |
|
Net weight |
286 lbs. |
RESAW & FEEDER DIMENSIONS
|
Machine & feeder net weight |
1756 lbs. |
|
Shipping weight |
2266 lbs. |
|
Shipping dimensions |
100” x 33 ½” x 55 ½” |
