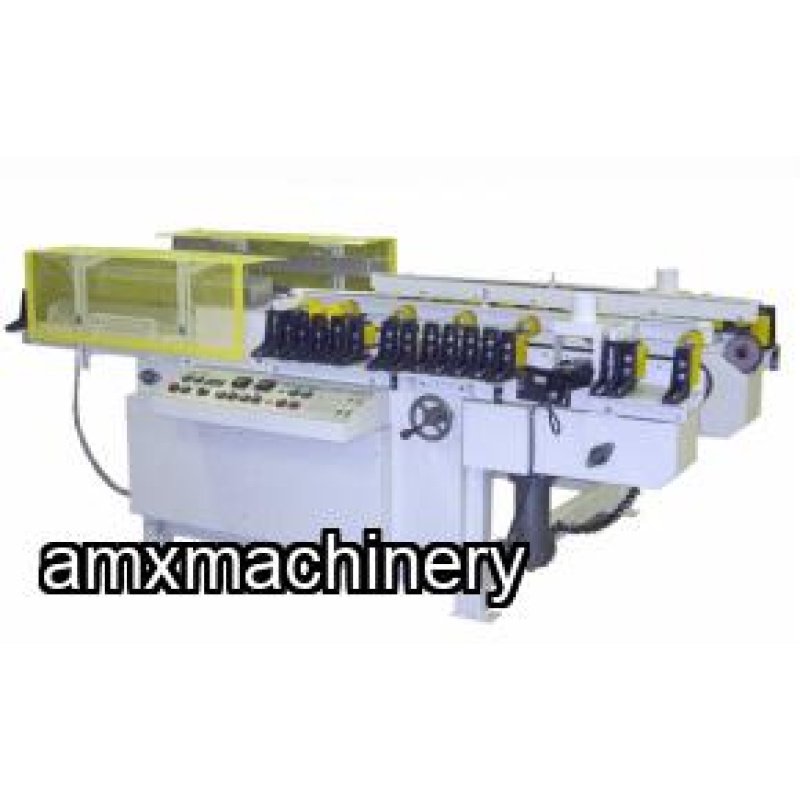

PARTE: 2EV-6100 - POSTFORMADORA CONTINUA 2 LADOS - EVANS 6100
220 Volt, 3 Ph., 60 Hz., or 380 Volt, 3 Ph., 50 Hz.
17 kw (no air required) Standard work height 37”.
Standard Features:
90 and 180 degree setup
Quick-change 90 and 180 degree roller assembles each side.
Maximum material width 48"
Heaters: Infrared radiant panel (instant on / off)
Foot print: 107”L X 72”W X 44”H, Work height 37”
Maximum Feed rate 10 feet per minute.
Feed motor: ½ hp variable speed DC drive.
Crated weight 2400 LBS. Shipping dimensions 115” long X 80” wide X 55” high.
Options:
2 High Frequency motors for trimming 90 degree bends
Slitter motor with blade (for counter top operations)
Bevel shape set-up part # 6100-01 (both sides)
40” work height add
--------------------------------------------------------------------------------------------------------------
Proven a perfect fit around the world, in all size operations.
- Quick change 90 & 180 degree forming rollers
- Energy saving instant on-off radiant heater
- Optional high frequency floating trimmers
Double sided, single stage, automatic post former. It gives you the ability to postform a variety of laminate materials around profiled edges.
This machine is ideal for post forming kitchen counter tops, desk tops, cabinet doors and drawer fronts. The Model 6100 Feed Through Post Former gives you precise 90 degree, 180 degree, or a combination of 90 degree/180 degree on both sides of your product at the same time.
The 6100 is a flow through post former with options for trimming and a slitting saw for cutting a backsplash. Compare the price and features of the 6100 Feed Through Post Former with any other automatic post former.
Technical Specifications:
Feed Motor: 1/2 HP, DC
Electrical: 220 VAC 3 Phase 60 HZ
Power Consumption: 13 - 17 KW
90o Laminate: 3/4HP per Station
Floating Trimmers (optional)
Slitter Saw Motor (optional): 2 HP
Material Length: Min. 48”
Material Width: Max. 48.5”
- Without Saw: Min. 8”
- With Saw: Min. 16.5”
Material Thickness Min. 0.63” Max. 1.75”
Heater: Infrared Radiant Panel
Feed Speed: Up to 10 Ft/Min.
Build-Down: 90 - 180 degres
- Thickness Max. 1.25” Max. 0.75”
- Depth Max 1.75” Max. 1.75”
Machine Length 107”
w/o infeed & outfeed fence
Working Height: 37”
Shipping Weight: 2100 LBS
