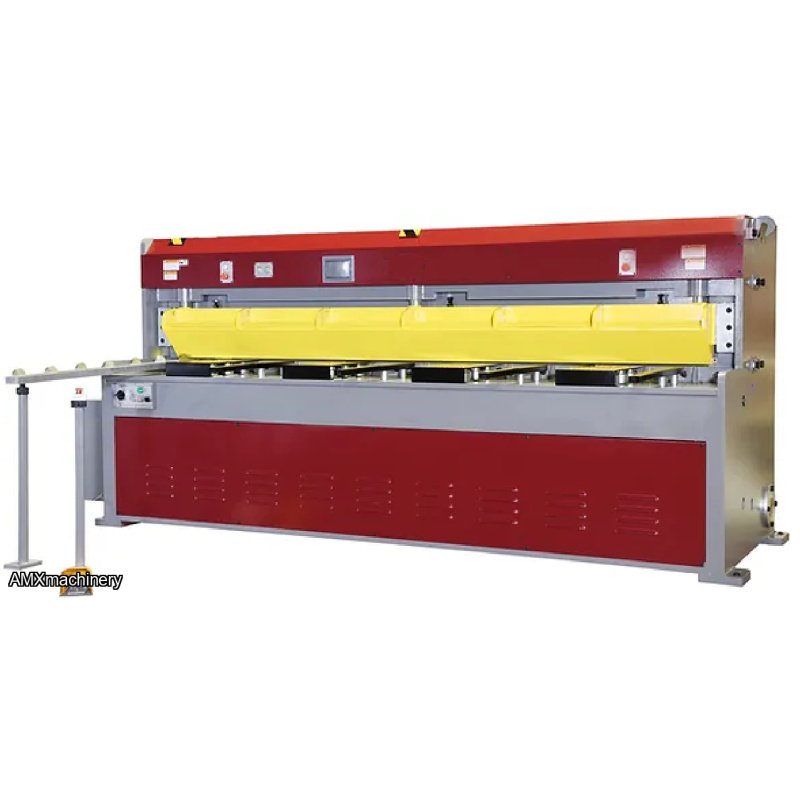

PARTE: 2GM-HS-1214M - GUILLOTINA MECANICA - 12 PIES LARGO X 14 GA
AMXmachinery1
Descripción
PARTE: 2GM-HS-1214M - GUILLOTINA MECANICA - 12 PIES LARGO X 14 GA
- ISO 9001 certified
- Taiwan machines
- Quick Change Blade Gap Adjustment
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened
to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- 24” manual back gauge( one side wheel drive )
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA)
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
Cutting capacity: Mild steel Stainless steel soft alminum min. thickness |
12’ x 14 Ga. 12’ x 18 Ga. 12' x 10 Ga. 22Ga |
| Blade length | 12' |
| Strokes per minute | 10-12 |
| Throat depth | 18" |
| Worktable height | 34 1/2" |
| Front support arm | 24" |
Back gauge | 24" manual back gauge |
| Blade rake angle | 2 degree |
| Oil tank cap. | 26 Gal. |
Main Motor | 10 HP, 220V/35A - 440V/20A |
| Machine weight | 9150 LBS |
| Machine dimensions | 195"x44"x66" |
