ID: 2142
Open
Description

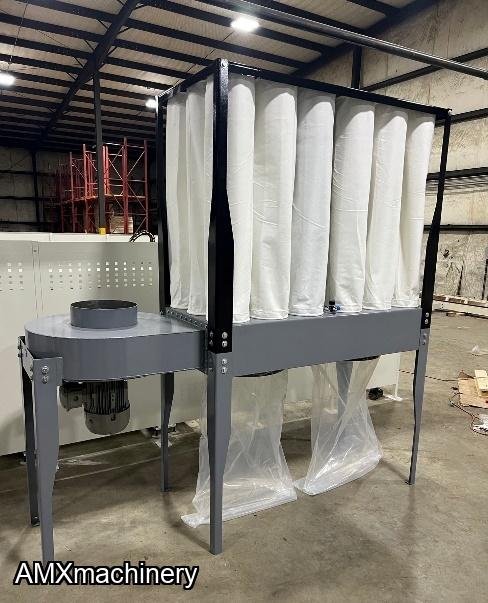

PARTE: 2PR-100 - COLECTOR DE ASERRIN - MODULAR - MOTOR 10 HP
Nuevo con Garantía
Size: 90 cm ancho x 275 cm largo x 275 cm alto
Filtros: 18 filtros en total 19.33 m²
Hardware:
~ Reverse incline material handling impeller
~ 10 gauge construction
~ Pneumatic vibrational pack
~ 10 HP Siemens Cast Iron Motor
~ 10” Diameter Filters
~ Interior baffle to assist in even filling
Specs:
~ 5000cfm @ 6” Static Pressure with 15” duct (This is the size of our inlet, no reducer needed.)
~ 4500cfm @ 6.5” Static Pressure with 14” reduction inlet. (This is recommended trunk size.)
~ 3200cfm @ 8.5” Static Pressure with 12” reduction inlet.
Payments & Returns
- Payment Methods
- Transferencia/Deposito Bancario
Post Message
Sign in to ask the seller a question.
AMXmachinery
RETESTADORA
PARTE # 2DO-PAO-CR10 - REDONDEADORA DE ESQUINAS - RETESTADORANUEVA CON GARANTIAESPESOR DEL TABLERO (MÍN. / MÁX.): 10/50 MMVELOCIDAD FRESA: 24000 RPMPOTENCIA MOTOR NEUMÁTICO: 0.37 KWFRESAS DE WIDIA DIÁMETRO MÁX.: Ø 30 mm Z2 R=2 mmTOMA DE ASPIRACION: Ø 100 MMPESO: 100 KGSAIRE COMPRIMIDO SUFICIENTE Y CONSTANTE: 6,5 - (95 PSI) BarDIMENSIONES TOTALES OCUPADAS: 780 x 720 x 1250 MMEMISIÓN SONORA SEGÚN NORMAS ISO 7960 – EN VACÍO EN ENTRADA / SALIDA: 70,6 / 70,4 LA eq [dB(A)]EMISIÓN DEL RUID...
AMXmachinery
LIJADORA DE BANDA - MESA MOVIBLE – 1 BANDA – MOTOR 5 HP - MESA 30”X 96” - USO RUDO
PARTE:
2DO-PMC-HD –
LIJADORA DE BANDA - MESA MOVIBLE – 1 BANDA – MOTOR 5 HP -
MESA 30”X 96” - USO RUDO
Nueva con garantíaHeavy
duty welded structure. They feature dust hoods on both sides, a table with
steel rollers and virtually wear free balanced and quiet running aluminum
pulleys. All models are equipped with a magnetic starter (overload protection)
and belt guards. Maximum
Part Length:Pressure
Pad Traveling Bar: 96"Pressure
Pad Traveling Bar Contact Wheel Assem...
AMXmachinery
CEPILLO 2 CARAS - CAPACIDAD 24”
PARTE:
12334 - CEPILLO 2 CARAS - CAPACIDAD 24”
USADO - BUENAS CONDICIONES
Standard Specifications:
- 24" x 6" work
piece capacity
- 12" min. length,
(6" min. butted) x 1/4" min. thickness
- 30 HP upper cutter head
motor, 20 HP lower head motor
- Whisper helical carbide
cutterhead, (1/2" max. depth of cut)
- 1 HP platen/thickness
elevator motor
- 5 HP variable speed feed
motor, (25 to 100 ft/min. feed speed)
- 2" concentric
chipbreakers with pressure rollers
...
AMXmachinery
CEPILLO 2 CARAS - CAPACIDAD ANCHO 24” - ITALIANO
PARTE:
12328 - CEPILLO 2 CARAS - CAPACIDAD ANCHO 24” - ITALIANO
USADO - BUENAS CONDICIONESFeatures gang rip and side
head capabilities. Additional technical specifications include... Planing & sawing width 24" maxThickness max. 4"Min. 1/2" Top Head: 4 knives 1/8" x 1-1/4" x 25"18 HP motorSpeed 5500 RPM5-1/4" cutting circle3/8" max chip removal7/8" profile depth max.8" dia. dust hood Bottom Head: 4 knives1/8" x 1-1/4" x 25"12 HP motor5500 RPM5-1/4" cutting circle3/8" max. chip removal...
