Description

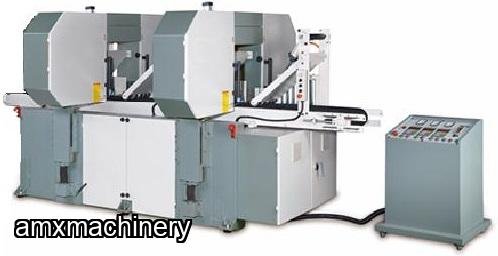

PARTE # 2TA-BS-1212HR-3 - REASERRADORA HORIZONTAL - 3 SIERRAS
NUEVA CON GARANTIA
| Specifications | BS-1212HR-TN | BS-1616HR-TN |
|---|---|---|
| Max. Cutting Capacity | 12" x 12" | 16" x 16" |
| Distance between Blade to Conveyor | 1/4" ~ 12" | |
| Saw Wheel Diameter | 28" x 2 | |
| Saw Blade Length (Width) | 201" (2") | 201" (2" ~ 3") |
| Saw Blade Speed | 6000 FPM | |
| Feed Conveyor Width | 12" | 16" |
| Feed Speed (Variable) | 0 ~ 90 FPM | |
| Main Motor (Each Head) | 20 HP x 2 | 30 HP x 2 |
| Saw Blade Lift Motor | 1/2 HP | |
| Feed Conveyor Motor | 3 HP | |
| Dust Hood | 4" x 6 | |
| N. W. | 7200 LBS | 8600 LBS |

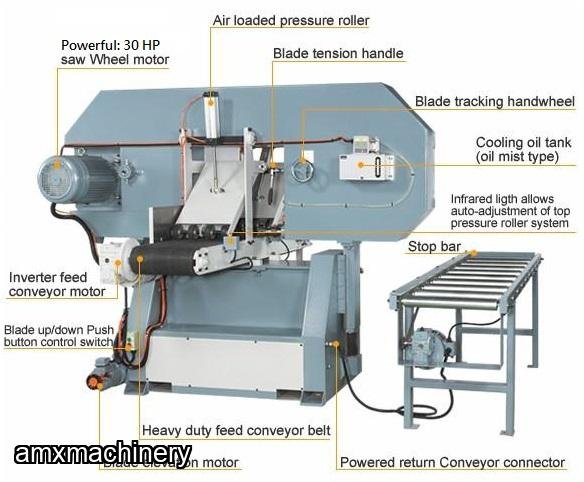

- Machine was built with ruggedly constructed throughout for maximum stability, high precision cutting and minimum trouble.
- It is equipped with a digital controller for convenient and accurate thickness setting.
- The feed conveyor has a tilting design allowing for maximum 30 degree bevel cuts.
- When the feed conveyor is tilted for bevel cutting a side support is applied for safe and stable cutting operations.
- Variable feed speed is controlled by a frequency inverter for best cutting requested.
- The infeed and outfeed pressure rollers are easily raised or lowered by a gear rack.
- The infeed and outfeed pressure rollers are spring loaded and easily adjusted for the horizontal or vertical direction to suit various workpiece thicknesses.
- Blade tension is adjusted by means of a hand wheel.
- A tension scale allows the operator to correctly adjusted the tension for different blade thickness.
- The cast iron saw blade wheel are dynamically balance for smooth running.
- Blade guard is easily lifted up, supported by two nitrogen gas cylinders for convenient blade change.
- The roller type return conveyor equipped at left side of the machine provides easily repetitive cutting.
