ID: 2336 Open

SIERRA CINTA 24" - 2 EN 1- 7.5HP

AMXmachinery1

Contact Seller

Description

SIERRA CINTA 24" - 2 EN 1- 7.5HP - 2CK-HB600A

Is heavy duty and built to last. With its industrial cast iron wheel and table assembly it can handle any job. What makes the HB600A unique is the capacity to run from ¼” to 2” wide blade allowing you to do intricate curve work as well as resaw timbers to size. The saw wheels are driven by a powerful 7.5HP motor allowing you to make your cuts with ease. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.

2-in-1 bandsaw can run up to a 2” wide blade for resawing and down to a ¼” for curve cutting
Cast iron saw wheels are precision machined and laminated with rubber for accurate blade tracking and slippage prevention

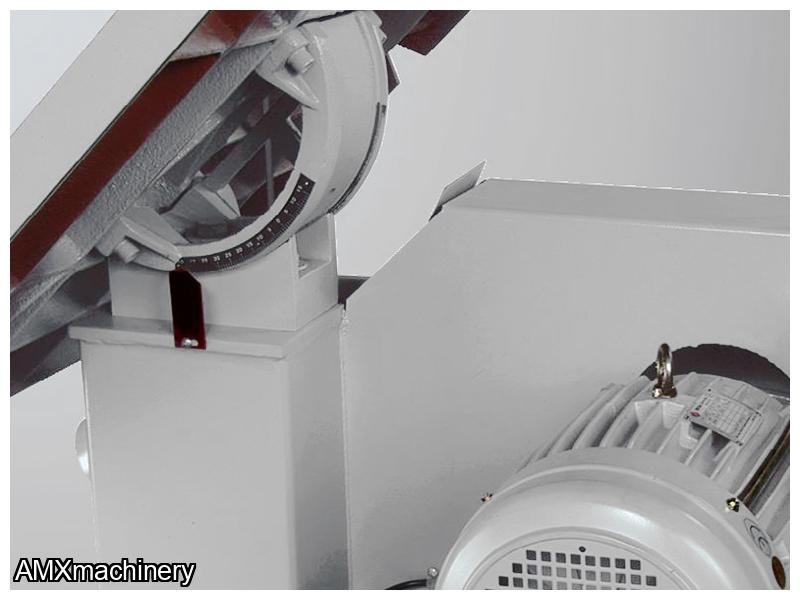

Cast iron worktable is precision ground and can tilt to 45^o

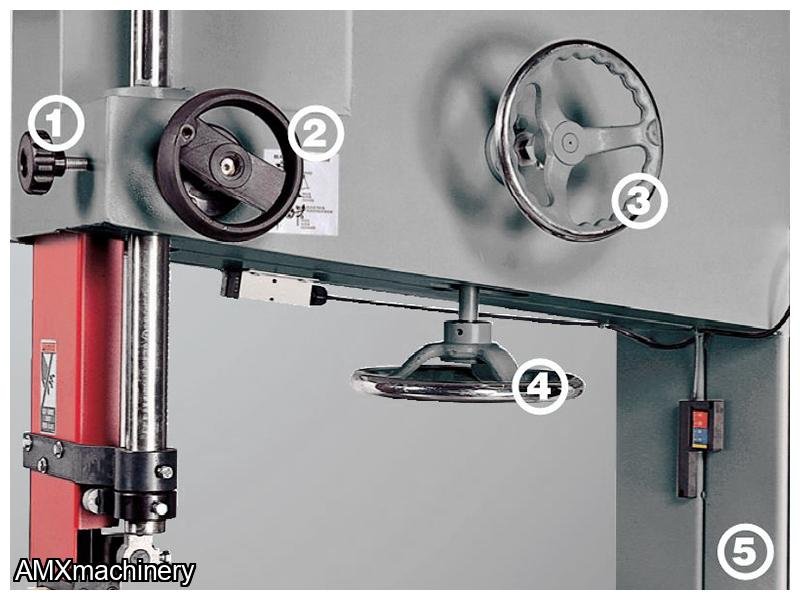

Blade tension is conveniently adjusted by means of a handwheel and tension is shown by a scale for accurate tension setting.
Heavy gauge steel frame ensures vibration free cutting

Upper and lower guide assemblies with Bakelite side guides to ensure cool running of the saw blade and a back guide thrust bearing
Micrometric adjustment to upper guide by rack and pinion
Foot brake for quick stopping of the blade

Saw wheel diameter

23 ½”

Table size

31 ½” x 23 ¾”

Table tilting

0° – 45°

Throat capacity

22-7/8″

Height capacity

13 ¾”

Width of wheel

2″

Blade speed

710 RPM (4458 FPM)

Blade length

173-5/8″ ~ 176 ½”

Blade width

¼” ~ 2″

Motor

7.5 HP

Dust hood diameter

4” x 2

Net weight

748 lbs.

Gross weight

990 lbs.

Machine size (LxWxH)

42″ x 31″ x 81″

Packaging size (LxWxH)

85″ x 25″ x 43″

Electrical

230/3/60 = 12.4 Full Load Amps

575/3/60 = 4.5 Full Load Amps
