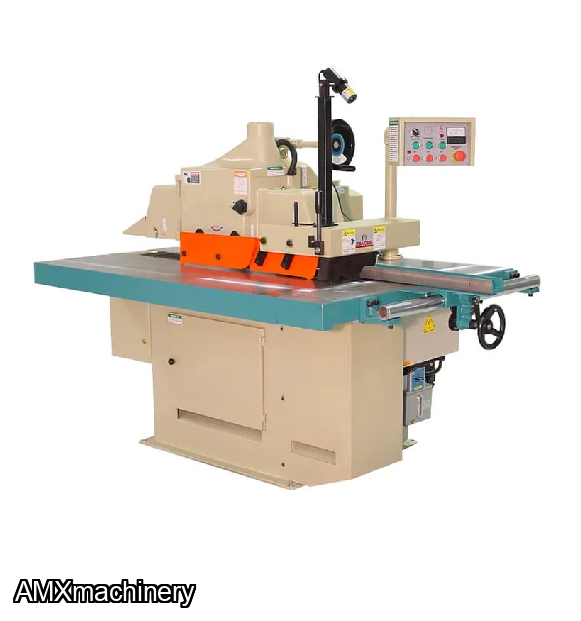

PARTE: 2EX- XR-12N - SIERRA RAJADORA - 1 DISCO - 12"
Details:
The Timberjack series straight line rip saws lead the way in innovation and value for all size production woodworking companies. These saws are designed with the quality construction and the features that you expect from an Extrema Machine.
15 HP Main motor
Huge 44″ x 63″ table
8 hold down rollers
Variable feed speeds from 50-150 ft/min
10′ Guaranteed Glue Line
Disc Brakes
Micro adjust fence with handwheel
Triple anti-kickback fingers
14¾” wide ripping capacity
Automatic Oiler with low-oil shut off
Wye-Delta soft start
Heat treated chain and race
Amp meter
Square D Electrical controls
Specifications:
- Horsepower: 15HP
- Voltage: 230V or 460V
- Phase(s): 3PH
- Blade Size: 12"
- Main Motor: 15 HP
- Feed Motor: 2 HP
- Blade Speed: 4500
- Feed Speed: 50 - 150
- Max Rip Capacity: 14 3/4"
- Working Height: 32"
- Table Size: 44" x 63"
- Hold Down Rollers: 8
- Chain Rail Length: 40"
- Chain Pad Width: 6"
- Guaranteed Glue Line Length: 10'
- Set of Anti-Kickback Fingers: 3
- Disc Brakes: Yes
- Oiler System: Auto w/ shutoff
- AMPS (230V/460V): 42A / 21A
- Max Thickness Capacity: 3 3/4"
- Weight: 3200 lbs
