Identificador: 3194
Abierta
Descripción
PARTE: 2EX- XR-14BXL - SIERRA RAJADORA - 1 DISCO - 14" - CAPACIDAD EXTREMA
Details:
- 15 HP Main motor
- Huge 47.5″ x 69″ table available
- 8 full hold down rollers
- Variable feed speeds from 50-120 ft/min
- 9′ Guaranteed Glue Line
- Disc Brakes
- Micro adjust fence with handwheel
- Triple anti-kickback fingers
- 18″ wide ripping capacity
- Automatic Oiler with low-oil warning
- Wye-Delta soft start
- Heat treated chain and race
- Amp meter
- Square D Electrical controls
Specifications:
- Horsepower: 15HP
- Voltage: 230V or 460V
- Phase(s): 3PH
- Blade Size: 14"
- Main Motor: 15 HP
- Feed Motor: 1.5 HP
- Blade Speed: 3600
- Feed Speed: 50 - 120
- Max Rip Capacity: 18"
- Working Height: 33.5"
- Table Size: 39" x 69"
- Dust Collection Requirement: 1000 CFM
- Hold Down Rollers: 8
- Chain Rail Length: 34"
- Chain Pad Width: 7"
- Guaranteed Glue Line Length: 9'
- Set of Anti-Kickback Fingers: 3
- Disc Brakes: Yes
- Oiler System: Auto w/ warning
- AMPS (230V/460V): 45A / 23A
- Max Thickness Capacity: 3"
- Weight: 3200 lbs
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
-500x500.png)
AMXmachinery1
SIERRA MULTIPLE - 14”
PARTE: 2CK-NT-MRS14N - SIERRA MULTIPLE - 14”Features a cast iron frame that houses a variable speed dip chain for premium rip capability. Often referred to as gang rip saws, this machine is fitted with 14″ diameter rip saw blades and can be equipped with power raise and lower, invertor speed control and non marking urethane feed chain for customer specific applications. The stable base paired with first class safety features provides industrial level ripping for softwood and hardwood lumber....
-500x500.png)
AMXmachinery1

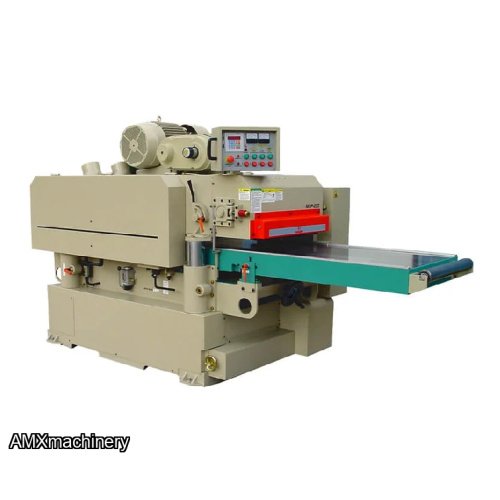

CEPILLO 2 CARAS - 25" ANCHO
