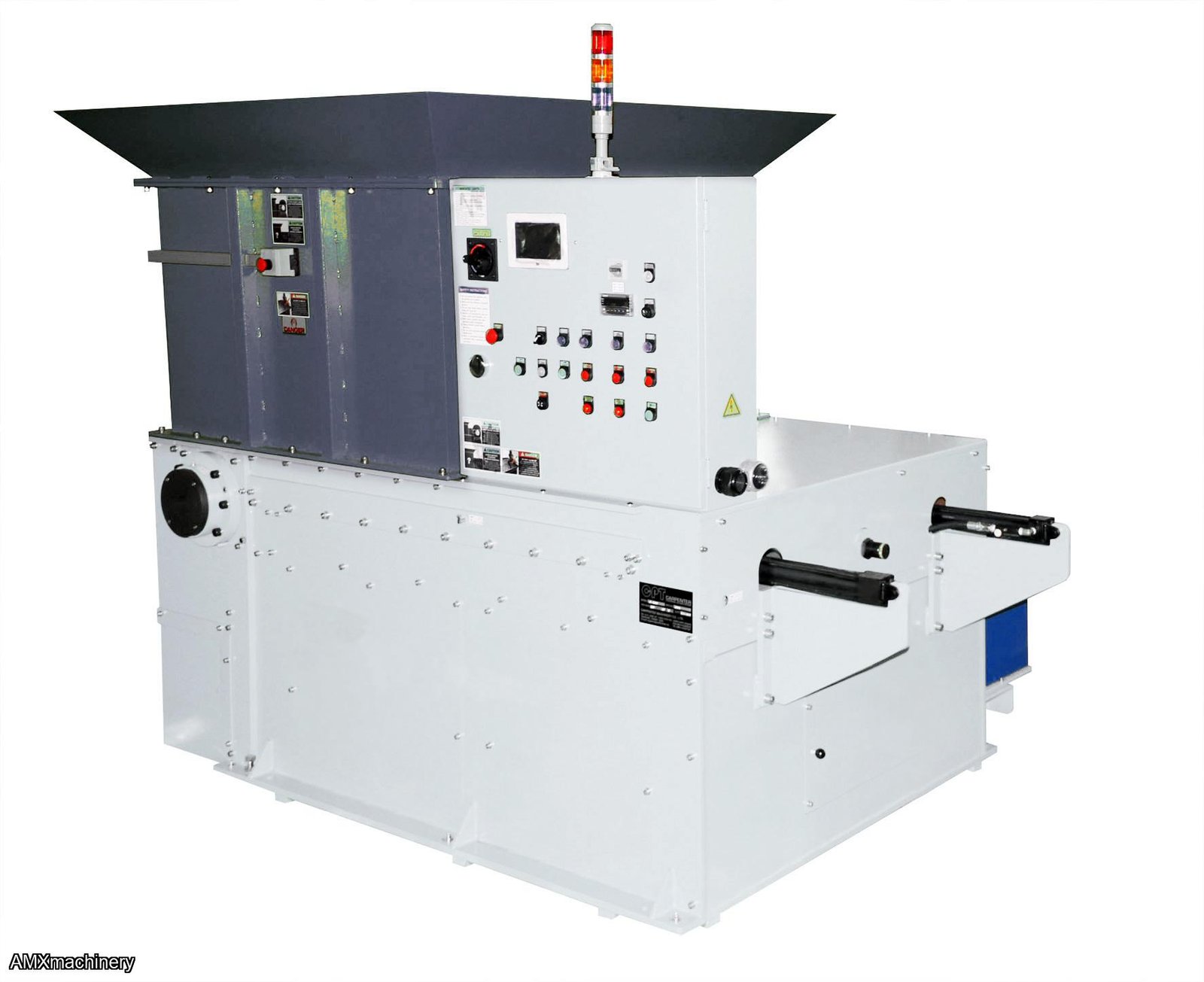

PARTE: 2TA-WG-2535V - ASTILLADORA - VERTICAL - 25 X 35 PULGADAS
Features:
- A specially designed with the push ram, powerful crusher for different materials such as wood, MDF, particle board,plastic, rubber, corn cob, etc.
- Excellent wearing ability and impact-resistant for time & labor saving.
- Large busting capacity and easy feeding system.
- The shaft rest for the cutter head is constructed by round hollow with special angle to keep cooling for long hours' usage
- Cutter head angle cutting design allows aggressive cutting rates & high speed shredding of waste with maximum durability.
- Movable screen for changing the size of chips and easy to clean-up.
- Enery efficient & quiet running industrial motor.
|
SPECIFICATIONS |
WG-1504V |
WG-2535V |
WG-4751V |
|
Entrance Capacity (L x W) |
15-3/8" x 4" |
25" X 35" |
47" x 51" |
|
Rotary Cutter (Sets) |
18 |
30 |
96 |
|
Stationary Cutter (Sets) |
4 |
4 |
6 |
|
Cutter Speed (RPM) |
680 |
85 |
85 |
|
Standard Finish Size or Option |
1/2" |
1/2" |
1/2" |
|
Cutter Head Motor |
20 HP |
30 HP |
60 HP |
|
Feed Motor |
-- |
-- |
1 HP x 2 |
|
Dust Hood |
8” x 1 |
8” x 1 |
8” x 1 |
|
Machine Size (L x W x H) |
56" x 50” x 32" |
87" x 52” x 75" |
106" x 75" x 83" |
