Descripción

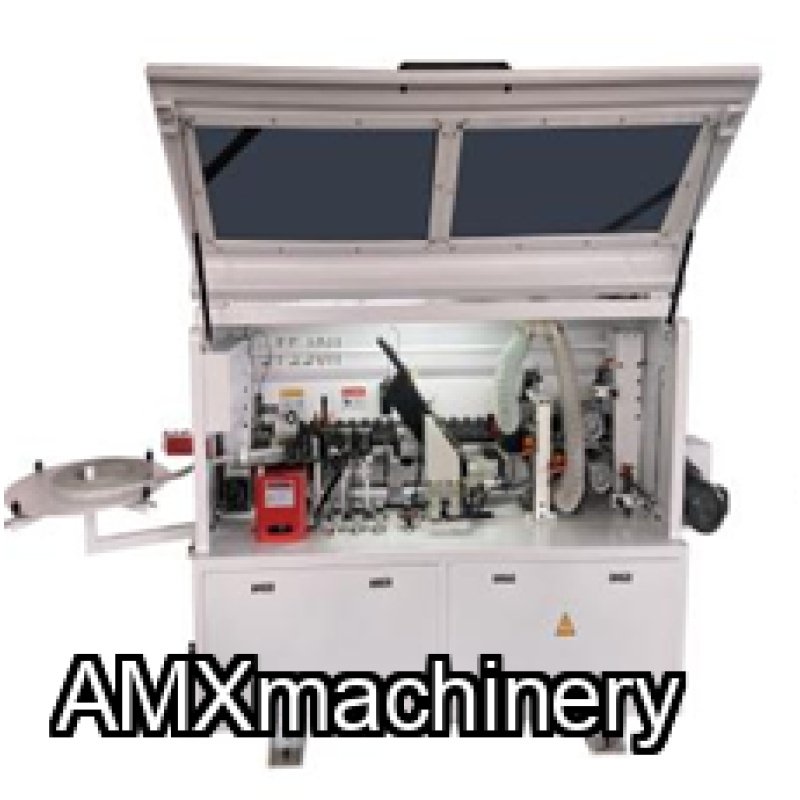

PARTE: 3HO-HT600 - CANTEADO AUTOMATICA

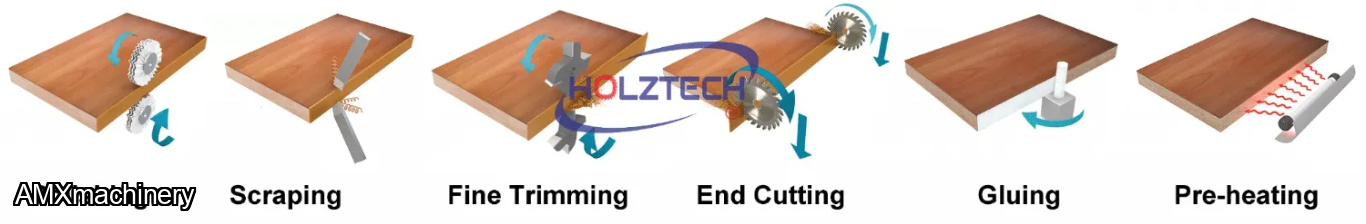

The single-sided edge banding machine is designed for bonding rectangular workpieces with various edge materials: PVC, ABS, acrylic.
| Banding Tape Thickness | 0.3-3mm |
| Banding Tape Width | 12-60mm |
| Workpiece Thickness | 10-55mm |
| Workpiece Length | >=80mm |
| Workpiece Width | >=45mm |
| Feeding Speed | 12m/min |
| Heating Power | 1.8kw |
| Feeding Motor Power | 1.5kw |
| Glue Spreading Motor Power | 0.75kw |
| End Trimming Motor Power | 0.37kw x 2 |
| Fine Trimming Motor Power | 0.75kw x 2 |
| Polishing Motor Power | 0.18kw x 2 |
