ID: 430
Open
Description

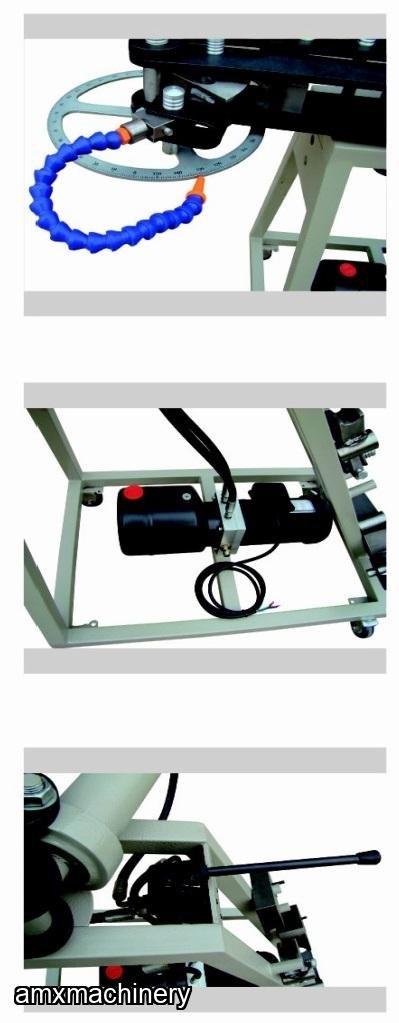

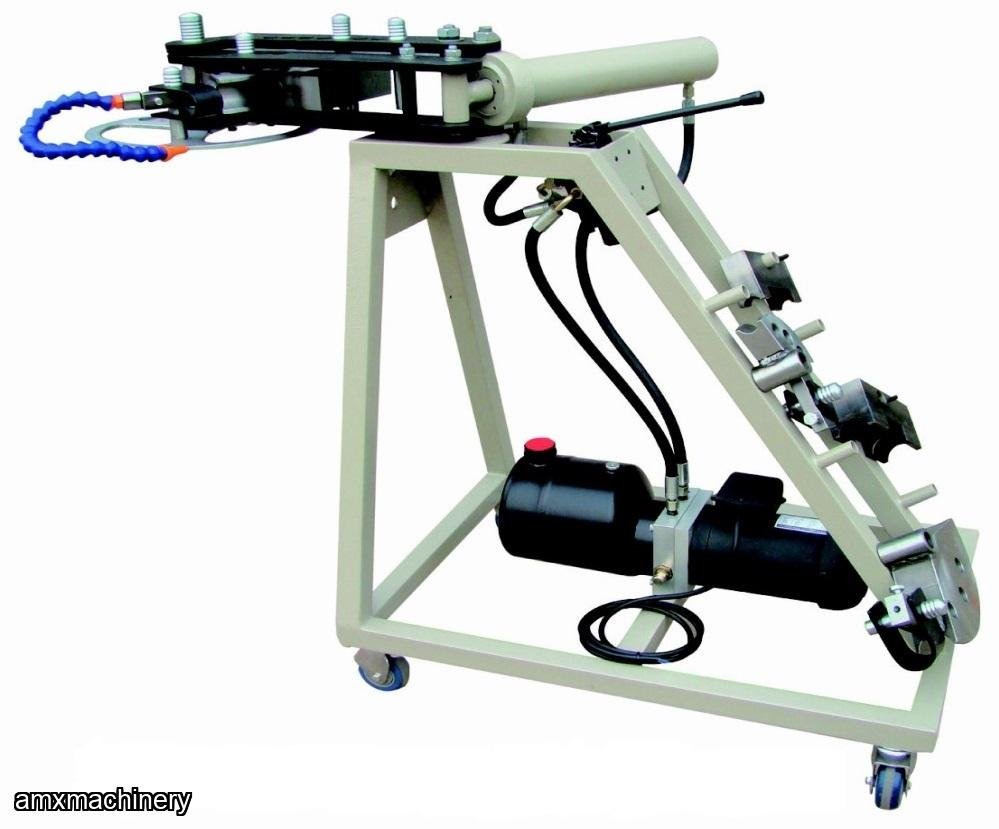

PARTE # 2MA-HTB-2 - DOBRADORA DE TUBO HIDRAULICA
Nueva con garantia
- Bends up to 2"schedule 40 pipe (1.54")
- Dies available in 120 and 240 degrees
- Dies and all Pins are heat treated
- Bronze bushings at Pivot Points
- Capabilities greater than benders costing 3 times as much
- High quality components and cosntruction
Tube Dies: 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2", 1-3/4", 1-5/8", 2" for 120 degrees for radius 120 and 240 degrees
Pipe Dies: 3/4", 1", 1-1/4", 1-1/2" for Radius 120 and 240 degrees
Weight: 110 lbs ( 50 kg) only includes3 sets dies
Comes with (3) free dies: 1”, 1-1/2” and 1-3/4” with 120 degree for tubing
Optional Packages of dies available:
Package 1 for round tubing: part # PKG1-HTB2:
¾” x 3” radius, 240 degree or 120 degree
7/8” x 3” radius , 240 degree or 120 degree
1” x 3” radius , 240 degree or 120 degree
1 ¼” x 4” radius , 240 degree or 120 degree
1 ½” x 5” radius, 240 degree or 120 degree
Package 2 for round tubing: part # PKG2-HTB2:
¾” x 3” radius, 240 degree or 120 degree
7/8” x 3” radius , 240 degree or 120 degree
1” x 3” radius , 240 degree or 120 degree
1 ¼” x 4” radius , 240 degree or 120 degree
1 ½” x 5” radius, 240 degree or 120 degree
2” x 6” radius, 240 degree or 120 degree
Package 3 for round tubing: part # PKG3-HTB2:
1” x 3” radius , 240 degree or 120 degree
1 ¼” x 4” radius , 240 degree or 120 degree
1 ½” x 5” radius, 240 degree or 120 degree
1 5/8” x 5” radius , 240 degree or 120 degree
1 ¾” x 6” radius, 240 degree or 120 degree
Package 4 for round pipe: part # PKG4-HBT2:
¾” x 3” radius, 240 degree or 120 degree
1” x 4” radius , 240 degree or 120 degree
1 ¼” x 5” radius, 240 degree or 120 degree
1 ½” x 6” radius , 240 degree or 120 degree
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express
Post Message
Sign in to ask the seller a question.
AMXmachinery
TORNO COPIADOR – RANURADOR – CAPACIDAD 30” LARGO
PARTE:
2TA-CL-330S - TORNO COPIADOR – RANURADOR – CAPACIDAD 30” LARGO
Nuevo con garantíaFeatures:
Suitable for cutting straight and spiral
grooves for the straight shaped or tapered spindle.
The machine employs rotary air cylinder
incorporating with gear for accurate indexing of grooves.
The cutter carriage's forward and backward
movements are hydraulically operated with feed speed control providing a
smooth motion and stable cutting performance.
T...
AMXmachinery
PARTE: 12614 - REASERRADORA HORIZONTAL - 1 BANDA – 12” ANCHO X 12” ALTO
PARTE: 12614 - REASERRADORA HORIZONTAL - 1 BANDA – 12” ANCHO X 12” ALTOUsada - Buenas condicionesBAKERBBR-0 / ABXFeatures the frame and headrig of our "BX" model, but use an "AX" model conveyor belt. This means that the head-rig can be adjusted up or down and the conveyor stays at a fixed height.Because the conveyor belt stays at a fixed height, it is easier to interchange and integrate with other material handling systems in your facility. This versatile band resaw is perfect for those wh...
AMXmachinery
PARTE 12429 - ESPIGADORA DOBLE DE CADENA - 136”
PARTE: 12429 - ESPIGADORA DOBLE DE CADENA - 136”
USADA - BUENAS CONDICIONESPiece
Size: 10" - 136"Number
of Heads: 8Motor: 16"Electrical
Characteristics: 480 Volts / 3 Phase / 60 CyclesEquipped
With:Complete
Electrical Controls W/Operator Control StationOverall
Dimensions: 172" L-R x 122" F-B x 68" High (est.)
Weight: 15,000 lbs. (est.)
AMXmachinery
DOBLADORA UNIVERSAL - 6 PIES PARA CAL. 16 - EN ACERO INOXIDABLE
PARTE: 1DO-DU-614 - DOBLADORA UNIVERSAL - 6
PIES PARA CAL. 16 - EN ACERO INOXIDABLENUEVA CON GARANTIA
REFORZADA
Longitud de Dobles: 6´ (1.80m)
Capacidad de Dobles: máxima Calibre 16 acero
inoxidable
Apertura de garganta: 4"
Angulo de cortina: 45°
Dados intercambiables (2)12", 10",
8", (3)6", 5", 4", 3"
Dimensiones de la máquina 2375 x 840 x 1240mm
Peso aproximado: 785 Kg
Fabricada con materiales de primera calidad
Herramienta ideal para hacer dobleces en
l...
