Description

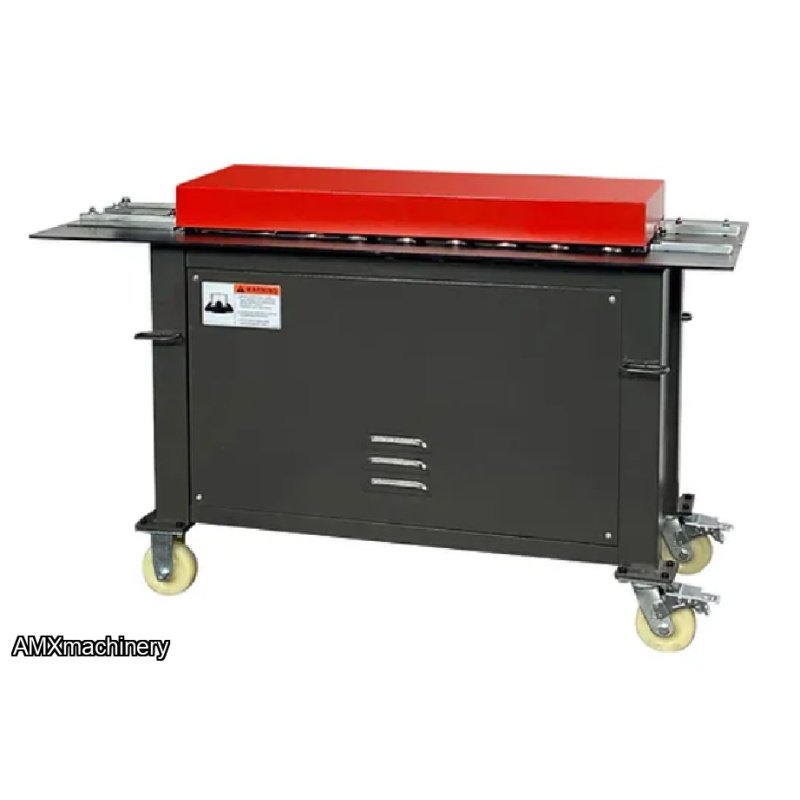

ENGANCHADORA PARA TUBO REDONDO PARTE: 2CK-PL-18C
Locking Forming Machine – your ultimate solution for precise forming and German lock technology in round ducting fabrication. With cutting-edge features and superior craftsmanship, optimize your workflow with unmatched efficiency and accuracy.
- ISO 9001 certified
- 2HP Heavy Duty AC main motor, 110V
- Heavy welded all steel construction for maximum rigidity
- One year warranty for parts
- Standard rolls for Germany female lock, installed
- Standard rolls for Germany male lock, installed
Capacity: Germany female lock Germany male lock |
26 Ga. to 18Ga. 26 Ga. to 18Ga. |
Depth of pocket | 1/2” |
Feeding speed | 23 FPM |
Main motor Amperage draw | 2 HP, 110V 15 Amp |
weight, approx | 517 LBS |
Machine dimensions, LxWxH Machine shipping dimensions, LWH | 42”x22”x43” 43” x 25” x46” |
