Description

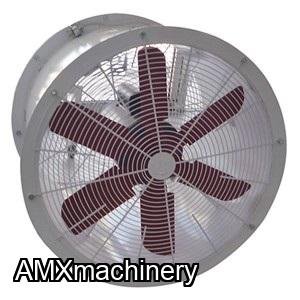

PARTE: 1AM - EXTRACTOR TUBOAXIAL DIRECTO
Carcaza de acero al carbón, pintada con pintura electrostática y horneada. Aspa de aluminio anti-chispa. Accionado por acoplamiento directo a un motor eléctrico.
Características:
– Diámetro de aspa desde 16″ hasta 26″.
– Motores en voltaje 127/220V. y 220/440V.
– Volúmenes de aire: 4,200 hasta 18,725 PCM. Presión desde 0.2″ hasta 2.5″ columna de agua.
Usos:
Procesos comerciales e industriales, torres de enfriamiento, extracción de humo, gases en estacionamientos, viveros, etc.
|
Modelo
|
Potencia
HP |
Volumen
PCM MC/HR |
|
|
XTAD-16 |
1/2 |
4,200 |
7,136 |
|
XTAD-20 |
3/4 |
8,170 |
13,880 |
|
XTAD-24 |
1 1/2 |
14,530 |
24,686 |
|
XRAD-26 |
2 |
18,725 |
31,814 |
