Descripción

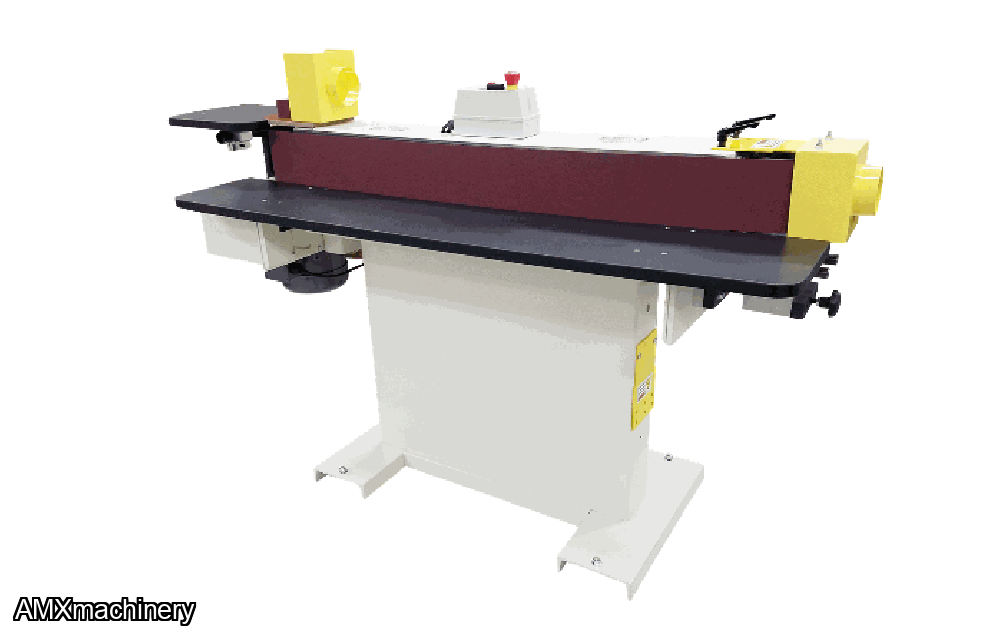

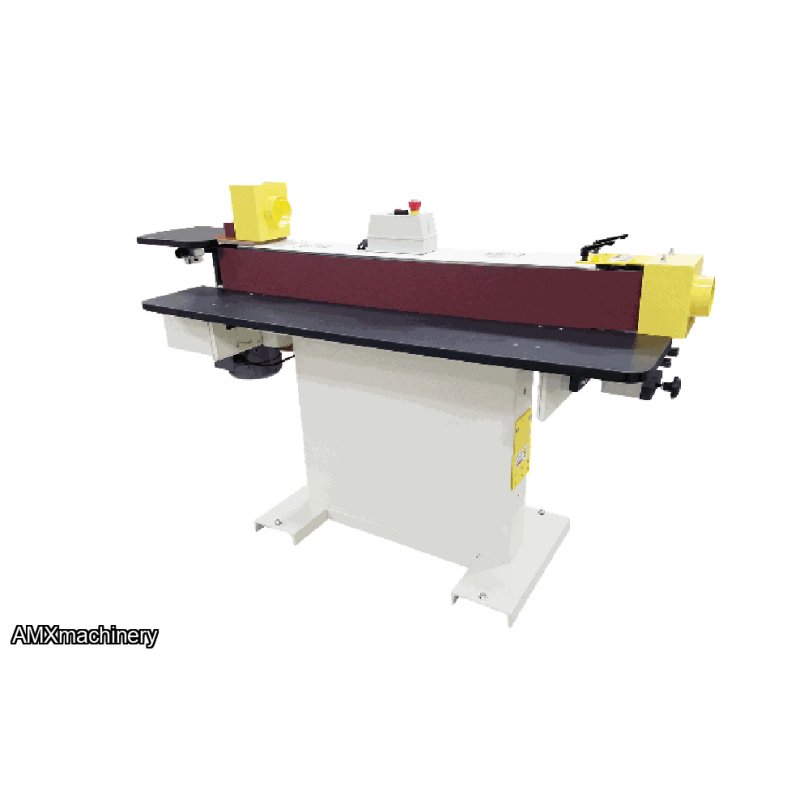

PARTE: 2RI-R701 - LIJADORA DE BANDA - 4"
Description:
Designed for use with edge finishing devices common to the furniture and custom woodworking industry. The ability to use the machine for a variety of edge finishing applications makes this the industry’s most universal edge belt sander.
Standard Features:
- Double Sided Ground Steel Platen
- Bias Tilting Tables
- Full Dust Hood with 4" End Openings for Dust Collection
- Pedestal Base
- Controls Accessible From Both Sides
- Magnetic Controls
- End Sanding Kit with 3" x 3" Sanding Drum
- Tiltable End Table
Technical Data and Specifications:
- Belt Size: 4" x 132"
- Platen Size: 4" x 49"
- Drive Wheel: 6" x 4"
- Drive Motor R701: 1.5 HP
- Drive Motor R703: 2 HP
- Electrical R701: 230V, 1Ø, 60Hz
- Electrical R703: 230V, 3Ø, 60Hz or 460V, 3Ø, 60Hz
- Air: N/A
- Work height: 36.5″
- Footprint: 31.5" x 80″
- Table Area: 12″ x 65″
