ID: 191
Open
Description

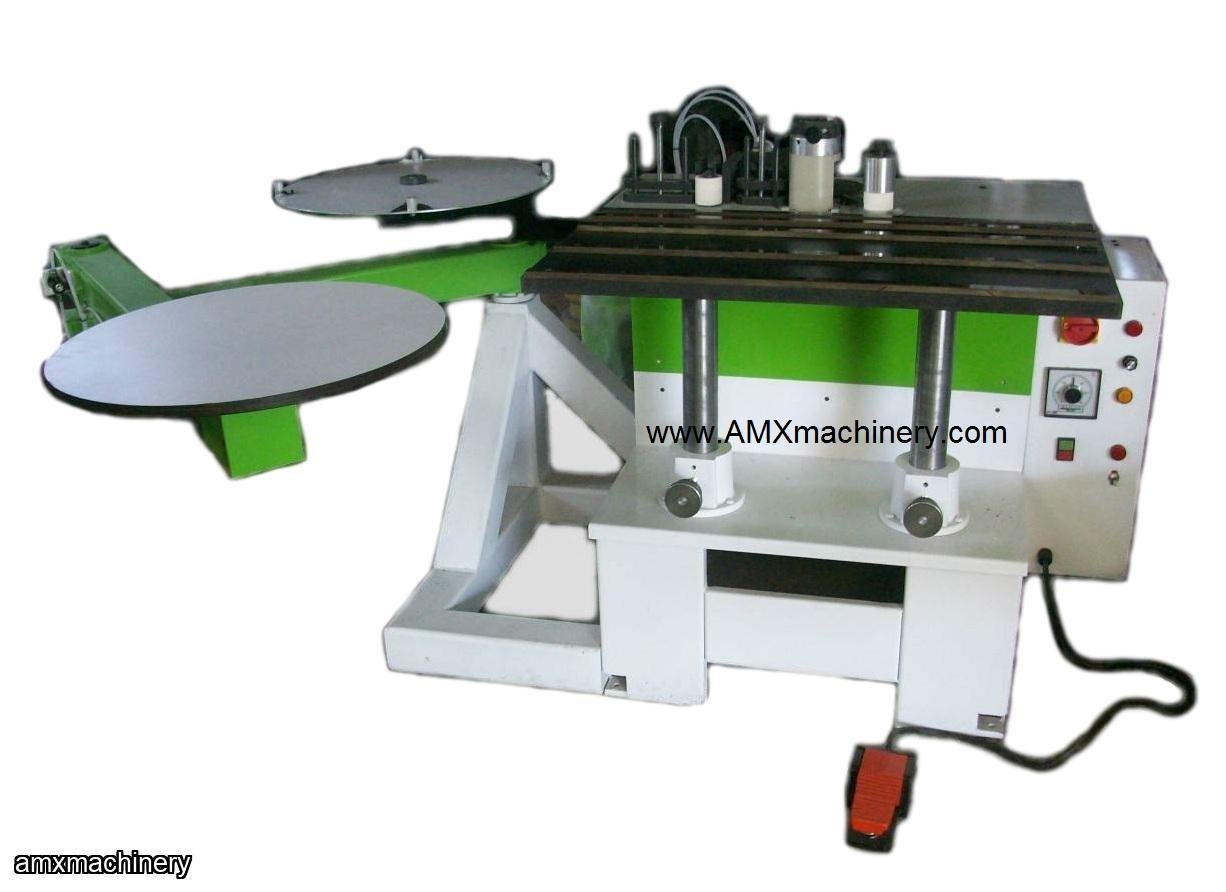

PARTE: 1SA- EB-SPIN - ENCHAPADORA - CANTOS RECTOS Y CURVOS
POTENCIA MAXIMA: 3500 WATTS
VOLTAJE: 220 VOLT
VELOCIDAD DE TRABAJO: VARIABLE 0 – 12 MTS / MIN
TEMPERATURA DE OPERACIÓN: 150-230 ºC
ALIMENTADOR: RODILLO DE HULE
PROTECCIÓN: BAQUELITA
MESA: PLACA 3/16
ADHESIVO: HOT MELT
PESO APROXIMADO: 180KG
BRAZO: ARTICULADO
ZONAS DE CONTROL DE TEMPERATURA: PIRÓMETROS ANALOGO
BASTIDOR: PLACA CA 10
TRANSMISION: ENGRANES
TERMOSTATO: CONTROL DE ARRANQUE
TERNOPAR: TIPO J
SUJECCION: VACIO POR VENTURY
CORTE: ACTIVACION NEUMATICA POR MICRO PEDAL
BOLITAS: EVITAR ATORAMIENTO DE CANTO
PLATO DE BAQUELITA: PARA PIEZAS CERRADAS
ESPESOR DEL CUBRE CANTO: 1, 2, 3 MM
ALTURA DEL CUBRE CANTO: 8 CM
Video: https://vimeo.com/165241079
