PARTE: 4RI-UNIX2200 - TALADRO PARA TAQUETES / PERNOS - RILESA - UNIX 2200

PARTE: 4RI-UNIX2200 - TALADRO PARA TAQUETES / PERNOS - RILESA - UNIX 2200

NUEVO CON GARANTIA

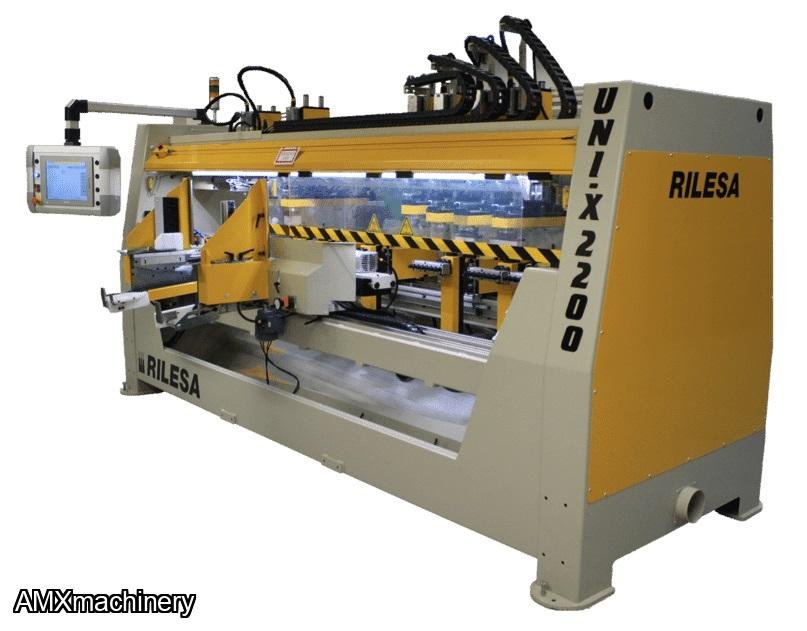

RiIesa Unix 2200 Drilling machine $ 115,790 euros

Tools are not included, are to be purchased separately

Our flexible dowel drilling machine. – With a large range of special equipment

Description:

• Drilling from 4 sides: top, right, left, back

• Capacity up to 14 pcs/min

• Set-up help using light beam

• Vertical magazine

• One-man operated

Extra:

• Side movement

• Small millings

• 45 degree drilling

• Can be integrated in a line of machines

• Waste Conveyer

Workpiece Dimensions

Length:

250 – 2200 mm

Height:

10 – 65 mm

Width:

25 – 200 mm

Features:

- Horizontal drilling from the back

- Light tower to assist during both set-up and production

- Horizontal end drilling

- Vertical and horizontal drilling groups

- Horizontal drilling from the back

Options:

- Different rapid change spindle systems for drill boxes

- Adjustable angle of drilling from the back

- Waste conveyor below machine

- Rilesa custom designed drill boxes
