Descripción

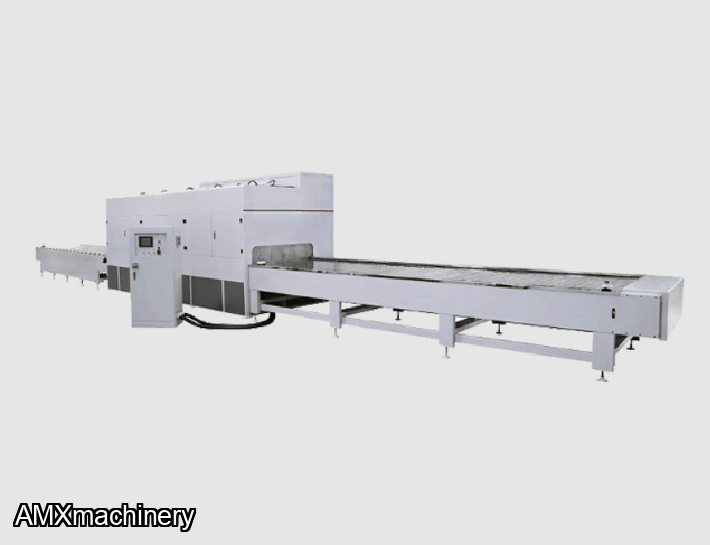

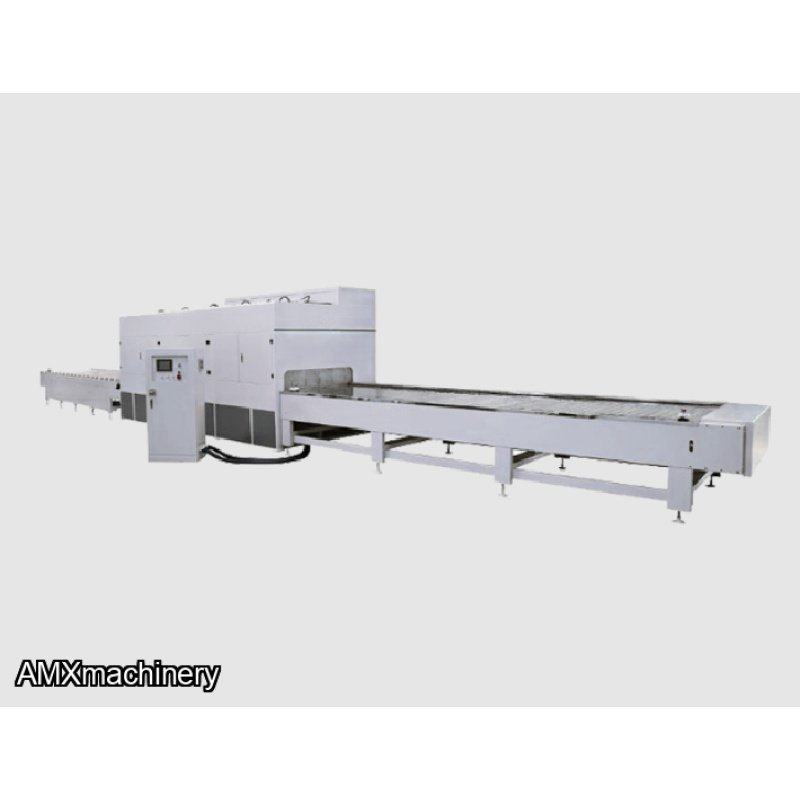

PARTE: 2LO-PT-HF1210-30FT - PRENSA DE RADIO FRECUENCIA - 12" X 10" X 30FT
- Special design for mass production for engineer flooring, door stile, long panel, 2 to 3 minute to dry per cycle.
- Automatic infeed, outfeed cycle, mass production within 3 - 5 minutes is ready for output.
- Shortens manufacturing procedures – no need to pass through for the dovetailing or joining process.
- Equipped with a massive upper plate that supplies powerful hydraulic pressure which presses each part of wood board to make even the most crooked pieces of wood flat.
- Due to the flatness it has made, it may not need to pass through double side planer processing.
- This substantially reduces wood loss.

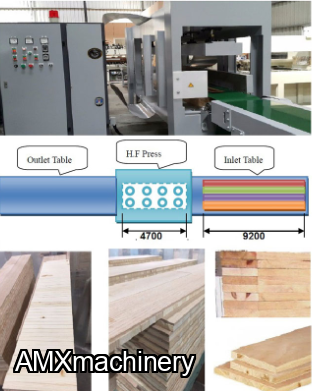

- User friendly operations; it is equipped with side automatic inlet and outlet feeding table system for continuous and mass production.
- Top quality wood board is manufactured by way of glue cured and completely hardened glue joins with high frequency heating in the meantime.
- All processing steps are integrated into the HMI interface control panel for easy one-touch control on the screen.
- Utilizes high frequency, glue cured evenly from inner of the glue line of the wood.
Specification:
| Model No. | PT-HF1210-30FT |
| In Put Power | 100 KVA |
| Out Put Power | 60 KW |
| Max. Working Width | 10" |
| Max. Working Heigth | 12" |
| Maximum Working Length | 30ft |
| Pressure | 140 kg/cm2 |
| Hydraulic Pump | 15 HP |
| Press Cylinder (top) | 8 Pcs |
| Press Cylinder (Rear) | 46 Pcs |
| Driving Conveyor | 3 Units |
| In & Out Feed Belts Conveyor | 30 ft Length each |
| Machine Weight | 8000 LBS |
