Description

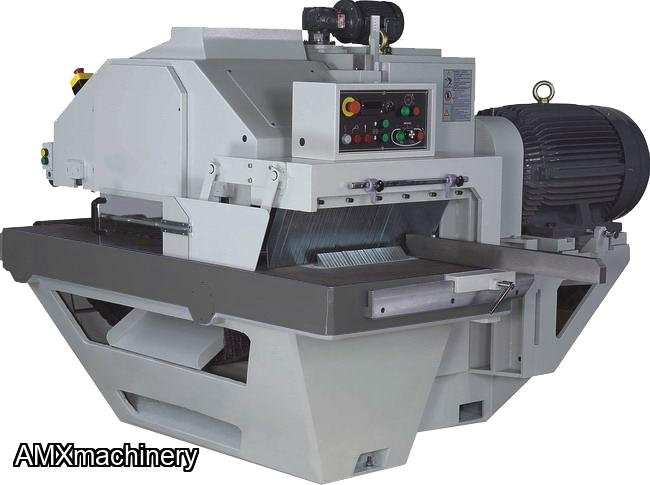

PARTE: 2CK-MRS175
FEATURES
- Specially designed auxillary powered outfeed roller assures maximum smoothness of workpiece outfeed especially when working on extra thick, heavy and moist wood
- Massive cast iron base provides incredible absorption characteristics for high quality deep cutting operations
- Precision chain and rails (dip chain) system facilitates straight line cutting
- Equipped with a blade mist cooling device providing cooling and cleaning for sawblades during cutting increasing blade life and improved cut quality
- Powerful blade drive motor for heavy duty cutting operations
- Motorized saw arbor and thickness adjustment for operator convenience
- A digitally controlled lubrication unit to provide consistent oil protection to the feed chain and guide rails. If the oil level drops below a safe level a warning lamp will light up and the feed chain will stop automatically
- Equipped with an electronic amperage display which is tied in to an overload protection where if the saw motor exceeds a rated amperage the feed chain slows down automatically
- Variable feed speed adjustment by frequency inverter from the front of the machine
|
Max. cutting thickness |
6.9″ (175mm) |
|
Max.
cutting width |
13.78″ (350mm) |
|
Distance of fixed inside blade to column |
14.9″ (380mm) |
|
Min. working length |
27.5″ (700mm) |
|
Max. sawblade diameter |
18″ (450mm) |
|
Min. sawblade diameter |
14″ (355mm) |
|
Sawblade bore |
70mm or 90mm dble. keyed |
|
Saw arbor diameter |
70mm
(w/o sleeve) |
|
Saw arbor motor |
125 HP (150HP optional) |
|
Saw arbor elevation motor |
1/2 HP |
|
Feed motor |
3 HP (5HP optional) |
|
Variable feed speed |
8-80
FPM(2.5-24m/min) |
|
Powered raise and lower of roller group |
1/2 HP |
|
Dust hood diameter |
8″ (200mm) |
|
Table height (pass line) |
29.3″ (745mm) |
|
Electrics – to UL/CSA standards |
230/460 or 575/3/60 |
|
Table area (L x W) |
72.4″ x 31.1″ |
|
Overall
dimensions |
95.5″ x 90.5″ x 63″ |
|
Net weight |
6600 lbs (3000 kgs) |
