Description
TALADRADORA HORIZONTAL PARTE: 2CK-BM301

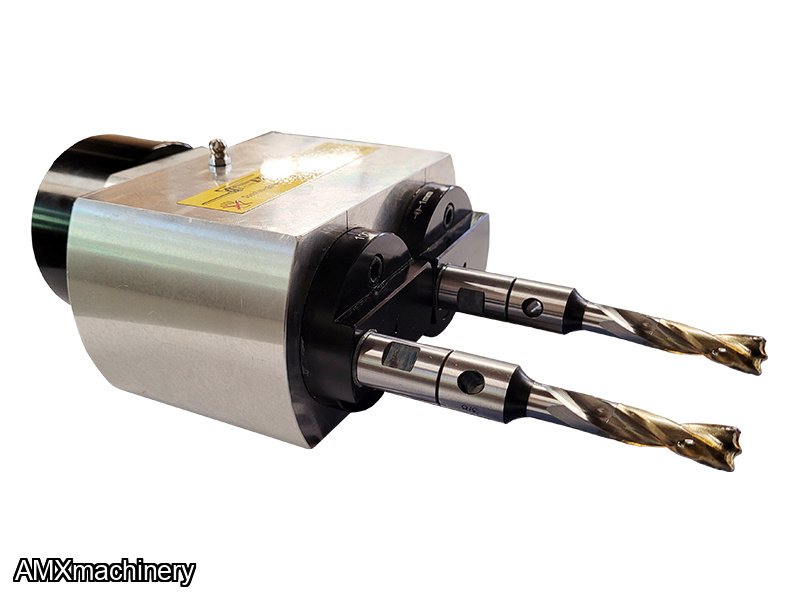

With its two spindle drilling head with adjustable drill centers from 0.71”~3.93” centers (18~100mm), you can conveniently drill dowel hoes with ease. The drilling assembly and table are made from cast iron for maximum rigidity and durability. The unit is mounted to a fabricated steel base for optimal functionality. The drilling cycle is controlled by a pneumatic cylinder and is actuated by a foot pedal for operator convenience. The drilling speed is adjustable for optimal cycle speeds. The drilling head is driven by a powerful 2HP direct drive motor. A pneumatic clamp ensures the work piece is held firmly during drilling operations.
- Automatic pneumatic drilling cycle actuated by convenient foot pedal
- Pneumatic clamp holds material firmly in place during drilling cycle
- Adjustable drilling bit center to center spacing from: 71”~3.93” centers (18~100mm)
- Industrial cast iron drilling assembly & table, with fabricated steel base
- Cast iron worktable with miter gauge for angled holes
- Worktable is conveniently adjusted up & down for varying workpiece thicknesses by an adjustment knob and threaded rod
- Adjustable drilling depth with maximum stroke of 4” (100mm)
- Drilling speed can be conveniently adjusted by a speed adjustment knob.
- Powerful 2HP direct drive motor for effortless drilling
INCH | METRIC | |
Number of drills | 2 spindles | |
Adjustable drill spacing | 0.71”~3.93” centers | 18~100mm centers |
Maximum drill stroke | 4” | 100mm |

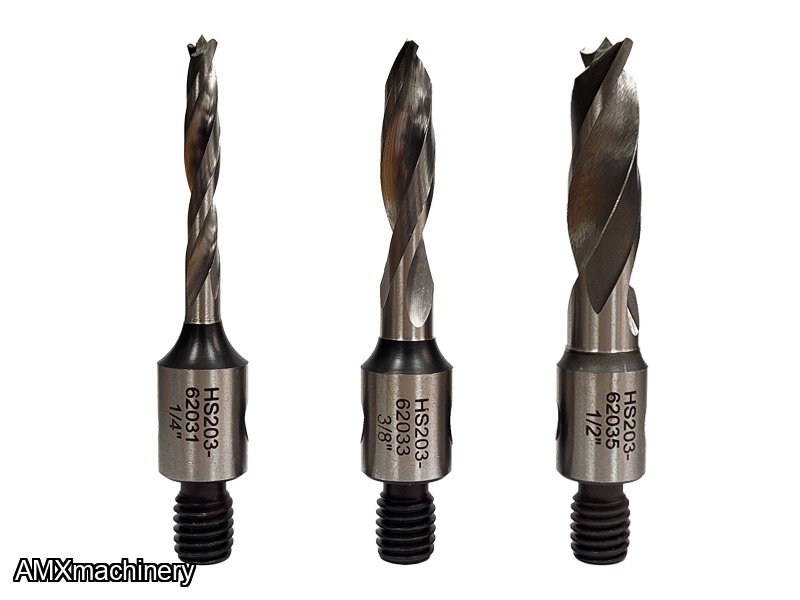

Drill bit shank | 7/16”-14 Threaded Shank (Both Right Hand Only) | |
Table size | 15.75” x 10” | 400 x 250mm |
Motor | 2HP (230/3/60 = 6.3 amps) | |
Spindle speed | 3450 RPM | |
