Descripción

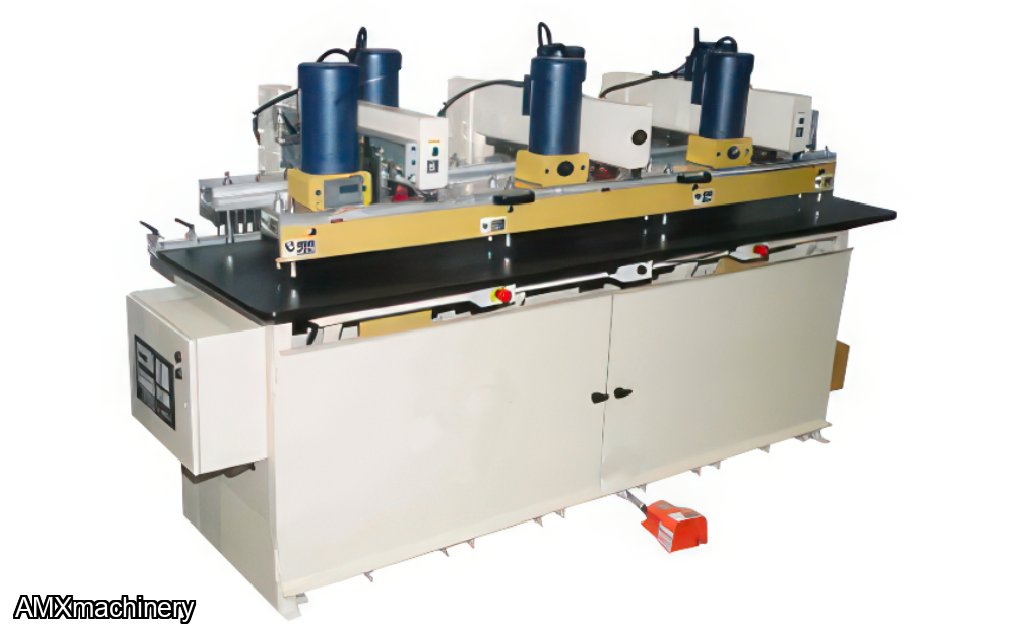

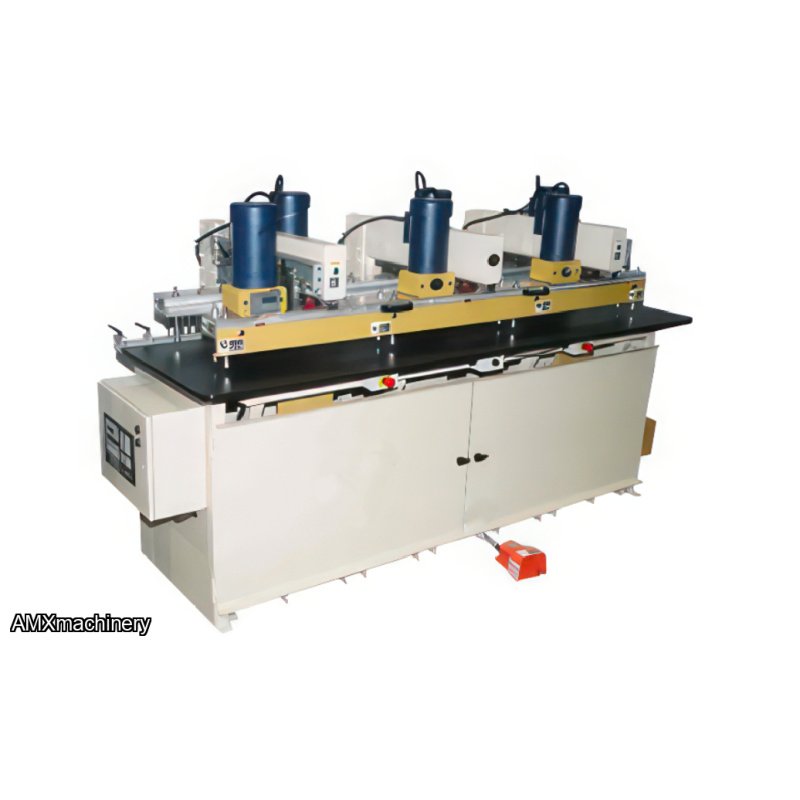

PARTE: 2RI-R152 - TALADRO LINEAL CNC - 152 HUSILLOS
Is a woodworking machine that can drill rows of evenly spaced holes in cabinet and furniture components. Drills two rows of shelf pin holes simultaneously. It has 152 spindles arranged in two rows of 76 each, and it can drill a full 8 foot panel with precision and speed. It is designed for closet panel production and features servo driven and programmable through boring, twin ball screw boring stroke control, and right and left hand work stations.
Standard Features
- (2) 76 Spindle Gear Driven Heads
- (6) 3 HP Spindle Drive Motors, TEFC
- 32mm Spindle Centers
- 10mm Bored Collets
- (76) Right Hand, (76) Left Hand
- CNC Table Feed Control
- Electronic Drill Head Squaring
- Foot Actuated Boring Cycle
- Minimum hole spacing: 5” (127mm)
- Magnetic Controls
- Tooling Not Included
Technical Data and Specifications:
- Drive Motors: 3 HP
- Spindle Centers: 32mm
- Collet Size: 10mm
- Throat Capacity: 24"
- First to Last Spindle: 2,400mm (94.488")
- Maximum Material Thickness: 1.25"
- Electrical: 230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A
- Air: 2 CFM at 80 – 100 PSI
- Work height: 36″
- Footprint: 54″ x 136″
- Table Area: 30″ x 108″
