Identificador: 2554 Abierta

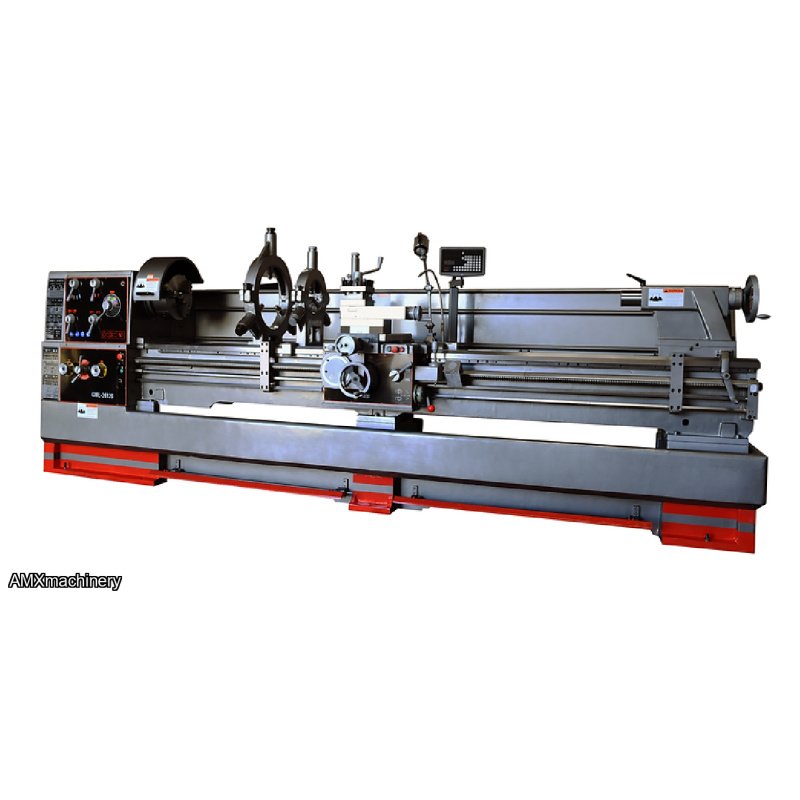

TORNO 32'' X 160''  15 HP

TORNO 32'' X 160'' 15 HP

AMXmachinery1

Contacte al Vendedor
Descripción
TORNO 32'' X 160''  15 HP                    PARTE: 2GM-GML-32160


Heavy Duty Precision Gap Bed Lathe 32” x 160” 4-1/8” bore, 15HP Motor.

  • ISO 9001 certified
  • Large spindle bore 4-1/8”
  • 4-way rapid traverse on Longitudinal and cross ways
  • All dual inch/metric dials.
  • Solid cast iron machine base
  • Heavy Duty main motor 15 HP
  • 12 spindle speeds from 25-1,600 rpm
  • 54 kinds of inch threads and metric threads
  • Threading and feeding rate change by levers
  • Spindle is balanced, hardened and precision ground
  • Spindle is supported at 3-point by high precision bearings
  • All gears and shafts are hardened and precision ground
  • Guideways induction hardened and precision ground
  • Automatic lubrication system in headstock and feed box
  • Tools box with leveling pads

Max. swing over bed

                                32”

Max. length of workpiece

                    160”

Max. swing over cross slide

                            26-7/16”

Max. Swing in gap

                                46-1/2”

Width of Bed

                                  16”

Effective length in gap to spindle

                                  10”

Effective length in gap to chuck jaws

                                  7”

Spindle bore

                         4-1/8”  , D1-8

Taper of spindle center

        MT#5 with1:20 reducing sleeve

Spindle speeds

                25-1,600 rpm / 12 steps

Longitudinal feeds

              0.0016-0.055 IPR, 60 kinds

Cross feeds

              0.0008-0.027 IPR, 60 kinds

Inch threads

              80-7/16”TPI, 54kinds

Metric threads

                  0.45-120 mm , 54 kinds
