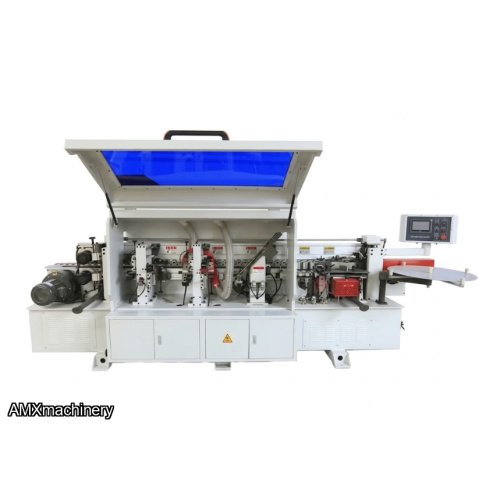

PARTE:3HO-HT450CF - CANTEADORA AUTOMATICAThe single-sided edge banding machine is designed for bonding rectangular workpieces with various edge materials: PVC, ABS, acrylic.Banding Tape Thickness0.3-3mmBanding Tape Width12-65mmWorkpiece Thickness10-60mmWorkpiece Length>=80mmWorkpiece Width>=60mmFeeding Speed18/20/22mminHeating Power1.8kwFeeding Motor Power3.7kwGlue Spreading Motor Power0.75kwEnd Trimming Motor Power0.37kw x 2Rough Trimming Motor Power0.75kw x 2Fine Trimming Motor Power0.7...

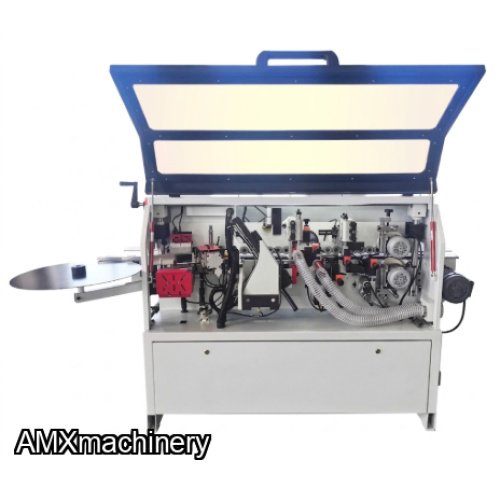

PARTE:3HO-HT450C - CANTEADORA AUTOMATICAThe single-sided edge banding machine is designed for bonding rectangular workpieces with various edge materials: PVC, ABS, acrylic.Ideal for use by companies producing cabinet furniture (office, kitchen suites, wardrobes, living room and corridor furniture as well as exclusive furniture made to order.ModelHT450CBanding Tape Thickness0.3-3mmBanding Tape Width12-65mmWorkpiece Thickness10-60mmWorkpiece Length>=80mmWorkpiece Width>=60mmFeeding Speed18/2...

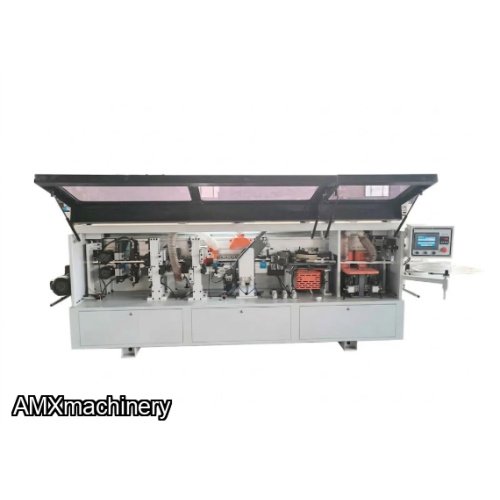

PARTE:3HO-HT450A - CANTEADORA AUTOMATICAThe single-sided edge banding machine is designed for bonding rectangular workpieces with various edge materials: PVC, ABS, acrylic.Ideal for use by companies producing cabinet furniture (office, kitchen suites, wardrobes, living room and corridor furniture as well as exclusive furniture made to orderBanding Tape Thickness0.3-3mmBanding Tape Width12-65mmWorkpiece Thickness10-60mmWorkpiece Length>=80mmWorkpiece Width>=60mmFeeding Speed18/20/22mminHeat...

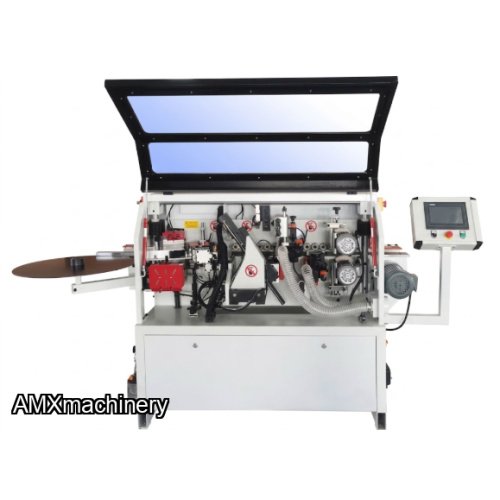

PARTE:3HO-HT306 - CANTEADORA COMPACTA AUTOMATICACompact automatic edge bander machineBanding Tape Thickness0.4-2mmBanding Tape Width12-48mmWorkpiece Thickness10-45mmWorkpiece Length>=120mmWorkpiece Width>=80mmTotal Power4.36kwFeeding Speed8m/minAir Pressure0.5MpaWood Packing Size1900*580*1410mmWeight540kgs

PARTE:3HO-HT306AEconomical design 4 functions fully automaticBanding Tape Thickness0.4-2mmBanding Tape Width12-48mmWorkpiece Thickness10-45mmWorkpiece Length>=120mmWorkpiece Width>=80mmTotal Power4.36kwFeeding Speed8m/minAir Pressure0.5MpaWood Packing Size2150*580*1410mmWeight580kgs

PARTE:3HO-HT306Y - ENCHAPADORA DE CANTOS COMPACTA CON TUPI DE ENTRADABanding Tape Thickness0.4-2mmBanding Tape Width12-48mmWorkpiece Thickness10-45mmWorkpiece Length>=120mmWorkpiece Width>=80mmFeeding Speed8m/minTotal Power5.86kwAir Pressure0.5MpaWood Packing Size2580*580*1410mmWeight660kgs

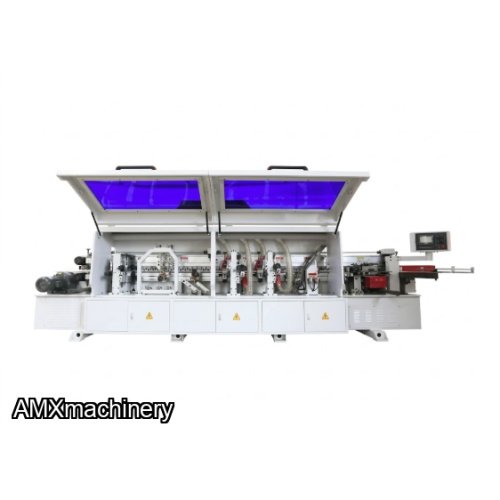

PARTE:3HO-TT800Y - CANTEADORA AUTOMATICAThe single-sided edge banding machine is designed for bonding rectangular workpieces with various edge materials: PVC, ABS, acrylic.Feed Speed12/15/18 m/minBanding Tape Thickness0.4-3 mmBanding Tape Width12-65mmPanel Thickness10-60 mmPanel Length≥80 mmPanel Width≥60 mmFeeding Motor1.5kwGluing Motor0.75kwEnd Trimming Motor0.37kw*2Fine Trimming Motor0.75kw*2Polishing Motor0.18kw*2Pressing Beam Lifting Motor0.37kwWorking air pressure0.6-0.8mpaWeight1050kg...

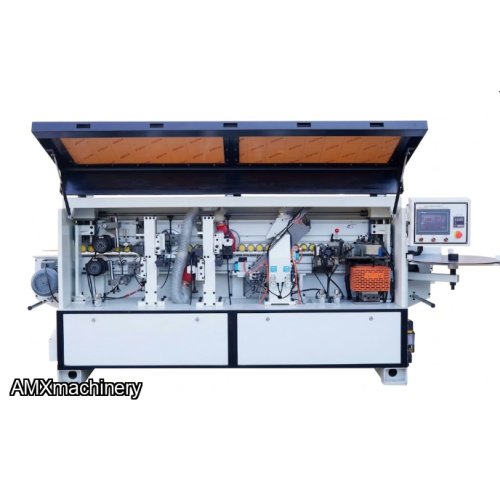

PARTE:3HO-HT800 - CANTEADORA AUTOMATICAThe single-sided edge banding machine is designed for bonding rectangular workpieces with various edge materials: PVC, ABS, acrylic.Feed Speed12/15/18 m/minBanding Tape Thickness0.4-3 mmBanding Tape Width12-65mmPanel Thickness10-60 mmPanel Length≥80 mmPanel Width≥60 mmFeeding Motor1.5kwGluing Motor0.75kwEnd Trimming Motor0.37kw*2Fine Trimming Motor0.75kw*2Polishing Motor0.18kw*2Pressing Beam Lifting Motor0.37kwWorking air pressure0.6-0.8mpaWeight1050kgD...

PARTE: R-DC2043-10 - TURBINA 3 HP - PARA COLECTOR DE POLVO Y ASERRIN 3 HP

PARTE: 3HO-MFB4023 - CANTEADORA DE CURVAS AUTOMATICATECHNICAL SPECIFICATIONS

PARTE: 2LE-003 - SISTEMA DE SALIDA PARA MOLDURADORAIncreased productionLower labor requirementsErgonomic design The Lent's Machinery Moulder Outfeed automates the accumulation of boards as they exits a moulder. A powered outfeed rollcase conveys the stock out of the moulder then pivots down lowering the stock onto a set of Polyurethane side transfer belts. Once the stock is out of the moulder a accumulation conveyor indexes automatically transferring the boards so they can easily be manually st...

PARTE: 2LE-004 - SISTEMA DE ENTRADA PARA MOLDURADORA - ALIMENTADORIncreased productionLower labor requirementsErgonomic design​The Hopper Feeder continuously feeds work pieces into a moulder. The boards are manually placed in a vertical accumulation Hopper. A web top conveyor belt separates the work pieces at high speeds and feeds them into the moulder.

PARTE: 2LE-005 - SISTEMA DE ENTRADA PARA SIERRAS MULTIPLES - ALIMENTADORIs a low-cost solution to feeding boards into your fixed or movable saw blade ripsaw.A powered movable fence on the infeed allows you to position the board exactly where you want to rip it.  This reduces the edging size.Stock is manually placed on the infeed roll case.  After a fence position has been selected the operator releases the piece and it is automatically fed into the ripsaw.The infeed table can run stock that is...

PARTE: 2LE-001 - MESAS DE ALIMENTACION DE CADENA - LATERALESLateral chain feed tables are essential components in various industrial processes, playing a pivotal role in enhancing the efficiency of material handling systems. Their strategic implementation can lead to reduced downtime, improved safety standards, and increased overall productivity in your operationsIndependent adjustable feed speed on rollers and infeed chains.Adjustable handles for quick set up. No wrenches!Four driven feed rolle...

PARTE: 2DO-CFS - SIERRA TRONZADORA PARA ATAUDESLong part of a casket top coming out from the RF Press made of hardwoodOne (1) frame with two (2) cutting stationsOne (1) cutting station is mobile to adjust for length of casket with pneumatic cylinder and adjustable stopping positionEach cutting stations include:Two (2) 5HP motors at 3500 RPM with 20'' blade mounted on a pneumatic armAdjustable fence and horizontal and vertical pneumatic hold downsPneumatic fixtures to adjust for casket model - ...

PARTE: 2DO-GS2 - ENGOMADORA CON TRANSPORTADORFeatures a mild angle iron infeed conveyor, a stainless-steel glue roller and a stainless-steel angle iron outfeed conveyor. The basic model is 13 inches wide, with optional widths of 20" and 30". The infeed and outfeed conveyors are both 8 feet long and are expandable by adding 2 feet increments. The material feeding speed is set at 60 feet per minute and the reservoir can be removed for cleaning and maintenance. One (1) Glue Conveyor...

PARTE: 2DO-TA-2 - MESA DE AIREIs designed for effortless handling of panels. Is typically used to handle heavy loads without effort.Table dimensions:  3' x 5'9 self-releasing flotation outlets per square footEach outlet is self-locking by polyethylene ballsIncludes a built-in air flotation turbinePneumatic stroke up/down to lift panel to same working height than the edgebanderUp/Down stroke movement is triggered manually by operator on foot pedalPower and control components are installed into...

PARTE: 2DO-BT3 - TRANSPORTADOR DE RETORNO1 Edge bander + 1 Return Conveyor = 1 fully productive operator, a streamlined workflow, less handling damage, less rejects…  Unlike their human counterpart, an automated system needs no hiring, no training, does not take off sick and works extended hours without receiving extra money. This is true for all Return Conveyors installed on shaper/sanders, single end tenoners, planers and wide belt sanders.Operating Principle: Its receiving rollers ar...

PARTE: 3RE-23MH - MOLDURADORA ALTA VELOCIDADHigh-Speed processing of solid wood floors, wainscoting, four-side planning of finger-jointed materials, strips, shipboards,etc., with a maximum feeding speed of 80M/min.Characteristic1.The feeding speed is 8-80m/min, the feeding motor adopts a permanent magnet synchronous motor, and the feeding system adopts a high-speed reducer and a strong universal joint transmission. The feeding power is strong, and the feeding effect is smooth and powerful.2.The...

PARTE: 3RE-RMM640 - MOLDURADORA DE USO RUDOProfessional solution for heavy cutting of extra large wooden house beams and columns, and ultra-wide mouldings processing.Characteristic1.Special processing range, widely satisfy with the needs of greatness workpieces. The Max. working width is 400mm, and the Max. thickness is 300mm. 2. Each spindle with the diameter of 50mm. The out bearing on the horizontal spindles can increase the carrying capacity. The Max. outer diameter of cutting circle reach...
