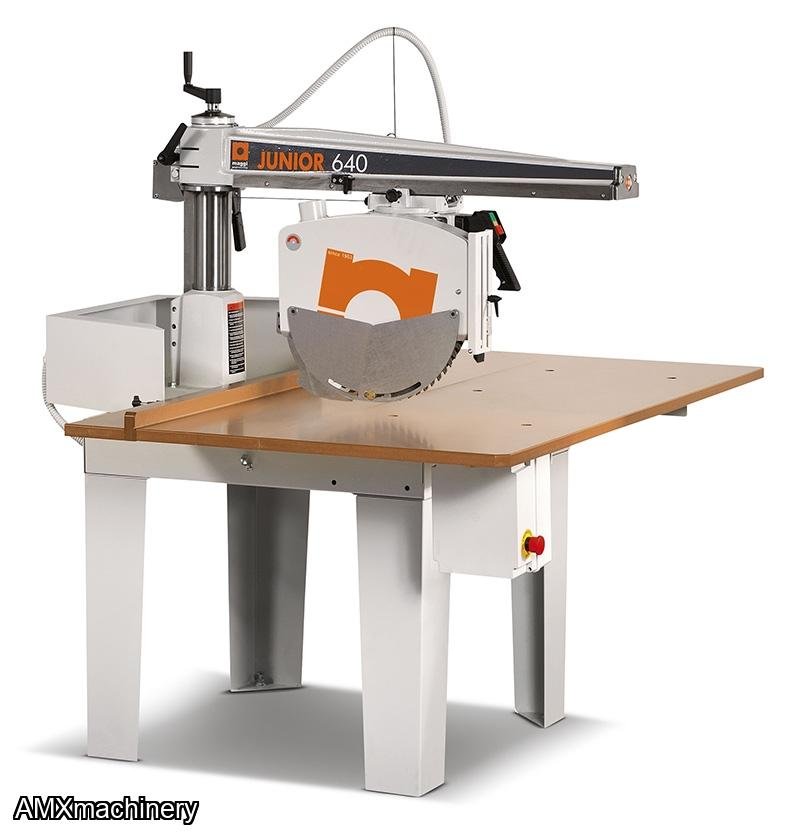

PARTE: 2JG-MAG-JUN640CE - SIERRA RADIAL - JUNIOR 640CE - 4 HP - 15.75” DISCO
AMXmachinery1
Description
PARTE: 2JG-MAG-JUN640CE - SIERRA RADIAL - JUNIOR 640CE - 4 HP - 15.75” DISCO
Nueva con garantia

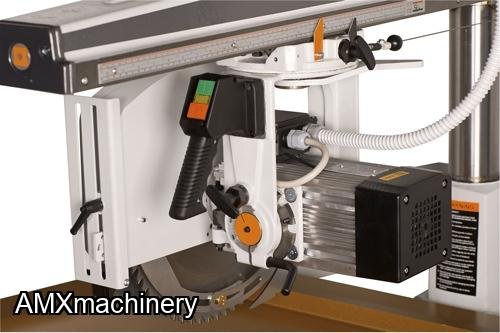

Offer adaptability, versatility, precision and durability to shops of all sizes. Maggi has been producing radial arm saws since 1973 and over the years has continually improved technical design and quality. Heavy castings and the eight bearing saw carriage makes this machine very accurate and rigid. European quality made to last!
- 4 HP for 3-Phase Option, 3 HP for Single Phase Option, 2800 RPM motor
- 400 mm (15.75") Blade diameter
- 62.20" x 38.39" Table size
- 21.5" Max crosscut length on 3/4" thick material
- 0 to 33.8" Rip capacity
- 4.9" Max depth of cut
- 15" Max cut length at 45 deg. On right side
- 7.5" Max cut length at 45 deg. On left side
- Dust chute on blade guard as well as rear of table
- Machine weight: 447 Lbs.
- Machine dimensions: 62" x 55" x 61" T
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
