Descripción

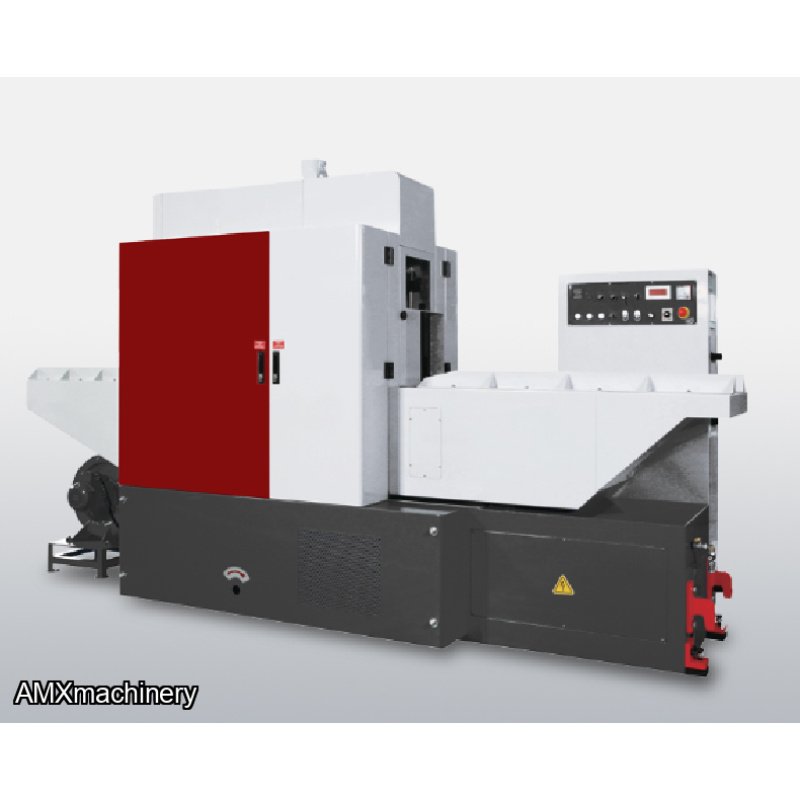

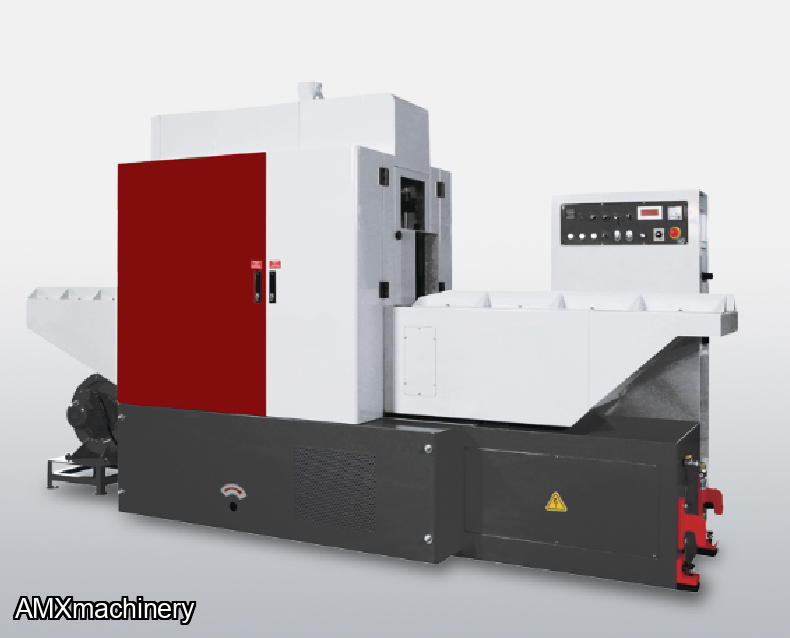

PARTE: 2CK-FR - SIERRA MULTIPLE - VAIVEN
Delivers high‑precision, efficient wood slicing with a robust, vibration‑free frame and independently adjustable pressure rollers. Its design features — from a centralized control panel and digitally controlled lubrication to easy frame replacement and effective dust removal — ensure smooth operation, low maintenance and reliable cutting. With chain‑driven feed rollers that match sawblade speed to feed rate and adjustable feed fences, the machine adapts to various wood materials while maximizing accuracy and minimizing waste
- Digital lubrication system
- Feed speed meter
- Aluminum frame
- Saw rack (iron)
- Saw Frame
Feed in Guide:
- Model FR-200 (1 set = 6 pcs.)
- Model FR-300 (1 set = 8 pcs.)
- (3) Feed Rubber Roller
- Saw Blade Spacer
- Iron Frame for Setting Saw Blades
- Bottom Rolls – 7 pieces in Front Section and 5 pieces in Rear Section
- Top Front Section is equipped with 7 Pressure Rolls & 3 pcs. with Air cylinders controlled by a sensor
- Top Rear Section is equipped with 5 Pressure Rolls & 1 piece with Air cylinder controlled by a sensor
Motor | 25HP+1/2HP +5kW(Servo) | 40HP+1/2HP +5kW(Servo) |
Max. Working Thickness | 200 mm | 310 mm |
Min. Working Thickness | 60 mm | 70 mm |
Max. Working Width | 150 mm | 200 mm |
Min. Working Length | 400 mm | 400 mm |
Feed Speed | 0.1~2.0 m/min | 0.1~2.0 m/min |
Saw blade Speed | 550 stroke/min | 500 stroke/min |
Saw blade Stroke | 210 mm | 260 mm |
Saw blade Size | 500 x 40 x 0.8 mmKerf:1.25mm | 655 x 40 x 0.9 mmKerf:1.3mm |
Saw Kerf Size | Stellite or TCT | Stellite or TCT |
Electrics | 230/3/60 | 230/3/60 |
Machine Dimensions | L3700 x W1000 x H1900 mm | L3700 x W1050 x H2050 mm |
Packing Dimensions | L3900 x W1600 x H2200 mm | L3900 x W1650 x H2250 mm |
Net Weight | 4000 kgs | 4800 kgs |
Gross Weight | 4200 kgs | 5000 kgs |
