Identificador: 286 Abierta

PARTE: 2TA-BS-1212HR-TN - REASERRADORA HORIZONTAL - 2 SIERRAS

AMXmachinery

Contacte al Vendedor

Descripción

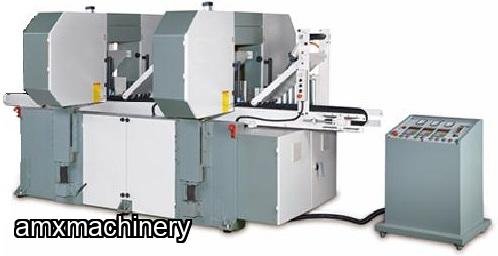

PARTE: 2TA-BS-1212HR-TN - REASERRADORA HORIZONTAL - 2 SIERRAS

PARTE: 2TA-BS-1616HR-TN - REASERRADORA HORIZONTAL - 2 SIERRAS

NUEVA CON GARANTIA

Specifications	BS-1212HR-TN	BS-1616HR-TN
Max. Cutting Capacity	12" x 12"	16" x 16"
Distance between Blade to Conveyor	1/4" ~ 12"
Saw Wheel Diameter	28" x 2
Saw Blade Length (Width)	201" (2")	201" (2" ~ 3")
Saw Blade Speed	6000 FPM
Feed Conveyor Width	12"	16"
Feed Speed (Variable)	0 ~ 90 FPM
Main Motor (Each Head)	20 HP x 2	30 HP x 2
Saw Blade Lift Motor	1/2 HP
Feed Conveyor Motor	3 HP
Dust Hood	4" x 6
N. W.	7200 LBS	8600 LBS

Machine was built with ruggedly constructed throughout for maximum stability, high precision cutting and minimum trouble.
It is equipped with a digital controller for convenient and accurate thickness setting.
The feed conveyor has a tilting design allowing for maximum 30 degree bevel cuts.
When the feed conveyor is tilted for bevel cutting a side support is applied for safe and stable cutting operations.
Variable feed speed is controlled by a frequency inverter for best cutting requested.
The infeed and outfeed pressure rollers are easily raised or lowered by a gear rack.
The infeed and outfeed pressure rollers are spring loaded and easily adjusted for the horizontal or vertical direction to suit various workpiece thicknesses.
Blade tension is adjusted by means of a hand wheel.
A tension scale allows the operator to correctly adjusted the tension for different blade thickness.
The cast iron saw blade wheel are dynamically balance for smooth running.
Blade guard is easily lifted up, supported by two nitrogen gas cylinders for convenient blade change.
The roller type return conveyor equipped at left side of the machine provides easily repetitive cutting.
