PARTE: 4ST-BLOX - CENTRO DE TRABAJO PARA CASAS DE BLOQUESProduct DescriptionWorking centre for Block-House type log houses and wood cabins.Maximum workpiece dimensions 230 mm (width) x 230 mm (height)Minimum workpiece dimensions 100 mm (width) x 60 mm (height)Beam movement accomplished manually, with adjustable mechanical stops.4 The working centre is equipped with the following standard units:Horizontal and vertical notching unit (standard)Cross-cutting unit with a blade diam. of 600 mm (option...

PARTE: 4ST-BIG BLOX - CENTRO DE TRABAJO PARA CASAS DE BLOQUESProduct DescriptionWorking centre for Block-House type log houses and wood cabins.Maximum workpiece dimensions 270 mm (width) x 320 mm (height)Minimum workpiece dimensions 140 mm (width) x 120 mm (height)Beam movement accomplished manually, with adjustable mechanical stops.4 The working centre is equipped with the following standard units:Horizontal and vertical notching unit (standard)Cross-cutting unit with a blade diam. of 800 mm (o...

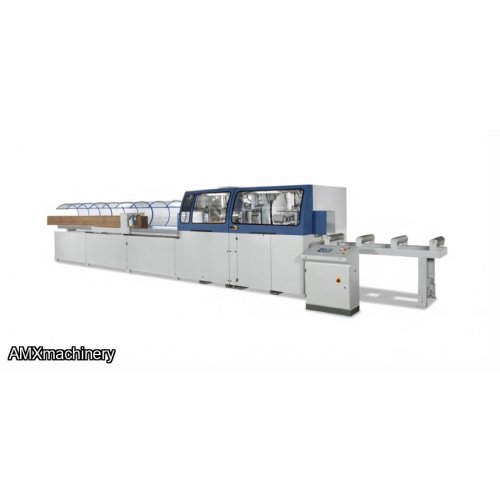

PARTE: 4ST-AUTOBLOX - BECKHOFF - CENTRO DE TRABAJO PARA CASAS DE BLOQUESProduct DescriptionAutomatic working centre for Block-House type log houses and wood cabins.Maximum workpiece section 200 mm (width) x 230 mm (height)Minimum workpiece section 65 mm (width) x 80 mm (height)Automatic and precise gripper positioning by rack and pinion system powered by brushless motorEquipped with a Beckhoff Panel PC with 12-inch displayDirect import of .BTL files in version 10.6The working centre is equipped ...

PARTE: 4ST-TOPMASTER BECKHOFF - CENTRO DE TRABAJO PARA CASAS DE BLOQUESProduct DescriptionAutomatic working centre for Block-House type log houses and wood cabins.Maximum workpiece section 270 mm (width) x 320 mm (height)Minimum workpiece section 120 mm (width) x 140 mm (height)Automatic and precise gripper positioning by rack and pinion system powered by brushless motorEquipped with a Beckhoff Panel PC with 12-inch displayDirect import of .BTL files in version 10.6The working centre is equipped...

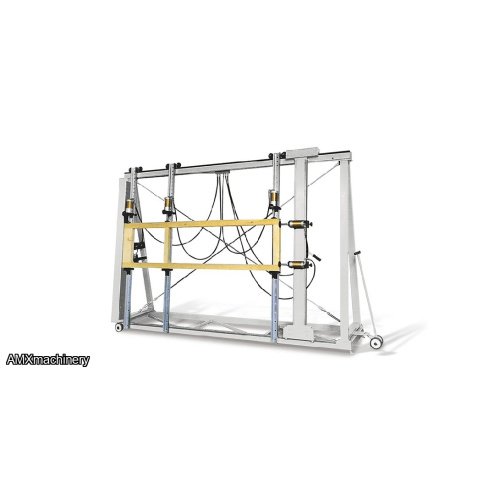

PARTE: 4ST-STP/ORM - PRENSA PARA PUERTAS Y TABLEROSPNEUMATIC PRESS FOR DOORS AND WINDOWSCLASSICS FOR GLUINGIs a pneumatic press for gluing door and window frames.Its solid frame on wheels, two of which are steerable, allows for front loading, reducing and optimising space in the workshop.The working unit consists of vertical and horizontal pneumatic cylinders, which are practical and functional and can be positionedaccording to the size of the frame to be glued. Sliding vertical uprights.Technic...

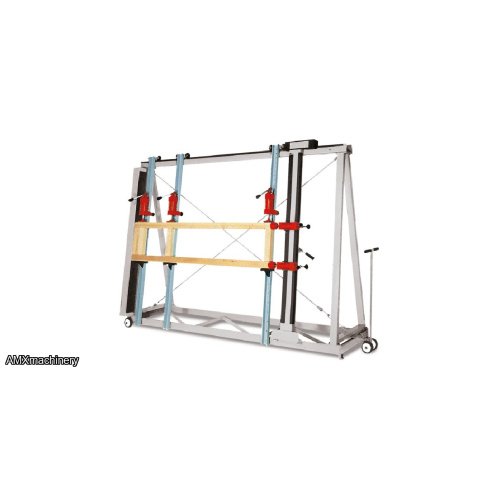

PARTE: 4ST-STH/ORM - PRENSA PARA PUERTAS Y TABLEROSHYDRAULIC PRESS FOR DOORS AND WINDOWSCLASSICS FOR GLUINGIs a hydraulic press for gluing door and window frames.Its solid frame on wheels, two of which are steerable, allows front loading, reducing and optimising space in the workshop.The working unit consists of manually operated vertical and horizontal hydraulic cylinders, which are practical and functionaland can be positioned according to the size of the frame to be glued.Technical specificat...

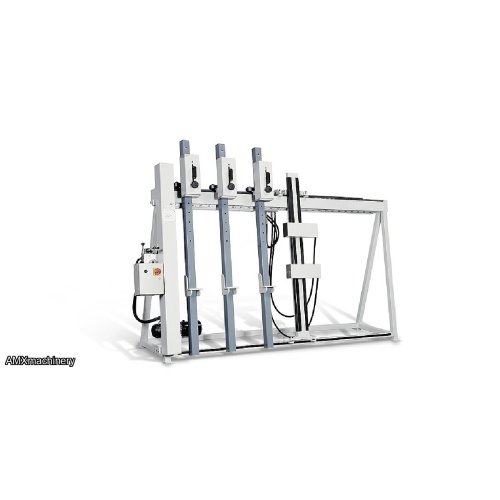

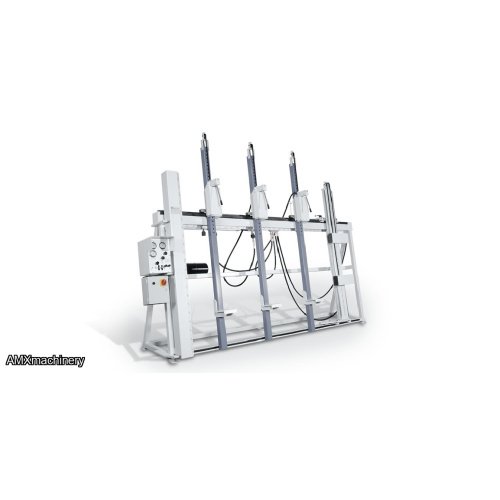

PARTE: 4ST-STH/OR-A  - PRENSA PARA PUERTAS Y TABLEROSHYDRAULIC PRESS FOR DOORS AND WINDOWSCLASSICS FOR GLUINGIs an electro-hydraulic press for gluing door and window frames.Its solid vertical structure allows front loading, reducing and optimising space in the workshop.The working unit consists of vertical and horizontal hydraulic cylinders, which are practical and functional for adjustment and positioningaccording to the size of the frame to be glued.Practical release and positioning system fo...

PARTE: 4ST-SPECIAL - PRENSA PARA PUERTAS Y TABLEROSHYDRAULIC PRESS FOR DOORS AND WINDOWSCLASSICS FOR GLUINGIs an electro-hydraulic press for gluing door and window frames.Its solid vertical structure allows front loading, reducing and optimising space in the workshop.The working unit consists of vertical and horizontal hydraulic cylinders, which are practical and functional for adjustment and positioningaccording to the size of the frame to be glued.Practical release and positioning system for t...

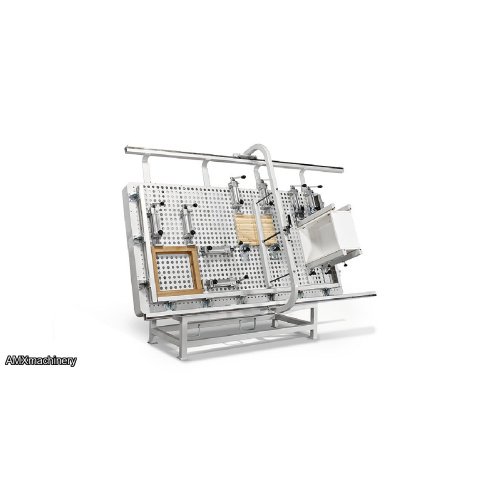

PARTE: 4ST-STC - PRENSA HIDRAULICA UNIVERSALUNIVERSAL PNEUMATIC PRESSCLASSICS FOR GLUINGIs a pneumatic press for gluing blockboard, frames, cabinet doors, drawers and doors.The possibility of using two assembly stations, with two-hand control, and up to two working sidesmake it the universal solution for small and medium-sized production facilities.The working unit consists of practical and functional adjustable pneumatic cylinders.Cast iron squares for precise reference of the working area.Tech...

PARTE: 4ST-STC/B - PRENSA HIDRAULICA UNIVERSALUNIVERSAL PNEUMATIC PRESSCLASSICS FOR GLUINGIs a pneumatic press for gluing blockboard, frames, cabinet doors, drawers and doors.The vertical version allows you to reduce and optimise space in the workshop.The possibility of using two assembly stations, controlled by a two-hand control, makes itthe universal solution for small and medium-sized production facilities.The work unit consists of practical and functional adjustable pneumatic cylinders.Cast...

PARTE: 4ST-UNI - PRENSA HIDRAULICA UNIVERSALUNIVERSAL HYDRAULIC PRESSCLASSICS FOR GLUINGIs a hydraulic press for gluing blockboard, frames, cabinet doors, drawers, doors and furniture.Thanks to its solid vertical frame, it reduces and optimises space in the workshop and becomes the universal solutionfor small and medium-sized production facilities.The work unit consists of practical and functional manual hydraulic cylinders.Cast iron squares for precise reference of the work area.Technical speci...

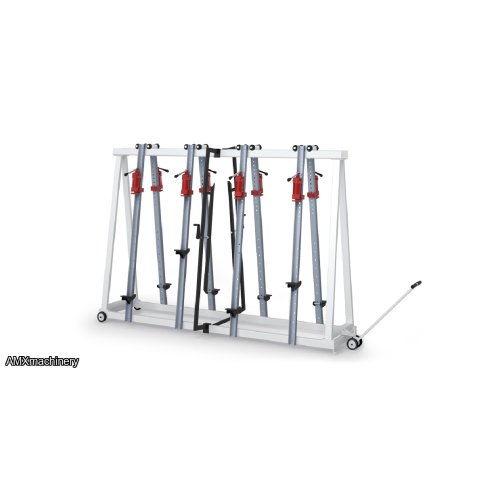

PARTE: 4ST-STP/D - PRENSA HIDRAULICA MANUALMANUAL PNEUMATIC PRESSCLASSICS FOR GLUINGIs a pneumatic clamp for gluing blockboard with 2 work stations.Its sturdy frame on wheels, two of which are steerable, combined with its compact size make it the ideal solutionfor the production of blockboard panels in small and medium-sized businesses.The work unit consists of manual hydraulic cylinders that are adjustable in height, practical and functional.Vertical sliding uprights with front wood pressers.Te...

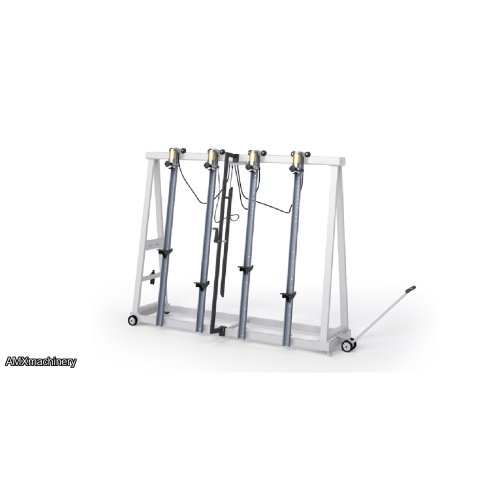

PARTE: 4ST-STP/S - PRENSA HIDRAULICA MANUALMANUAL PNEUMATIC PRESSCLASSICS FOR GLUINGIs a pneumatic clamp for gluing blockboard.Its sturdy frame on wheels, two of which are steerable, combined with its compact size make it the ideal solutionfor the production of blockboard panels in small and medium-sized businesses.The working unit consists of manual hydraulic cylinders that are adjustable in height, practical and functional.Vertical sliding uprights with front wood pressers.Technical specificat...

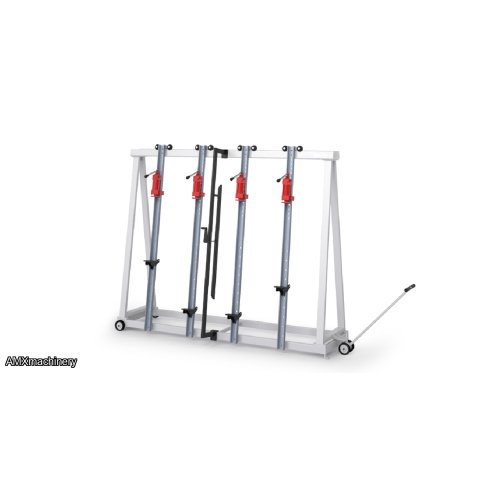

PARTE: 4ST-STH/D - PRENSA HIDRAULICA MANUALMANUAL HYDRAULIC PRESSCLASSICS FOR GLUINGIs a hydraulic press for gluing blockboard with 2 work stations.Its sturdy frame on wheels, two of which are steerable, combined with its compact size make it the ideal solutionfor the production of blockboard panels in small and medium-sized businesses.The work unit consists of manual hydraulic cylinders that are adjustable in height, practical and functional.Vertical sliding uprights with front wood pressers. ...

PARTE: 4ST-STH/S - PRENSA HIDRAULICA MANUALMANUAL HYDRAULIC PRESSCLASSICS FOR GLUINGIs a hydraulic press for gluing blockboard.Its solid frame on wheels, two of which are steerable, combined with its compact size make it the ideal solutionfor the production of blockboard panels in small and medium-sized businesses.The working unit consists of manual hydraulic cylinders that are adjustable in height, practical and functional.Vertical sliding uprights with front wood pressers.Technical specificat...

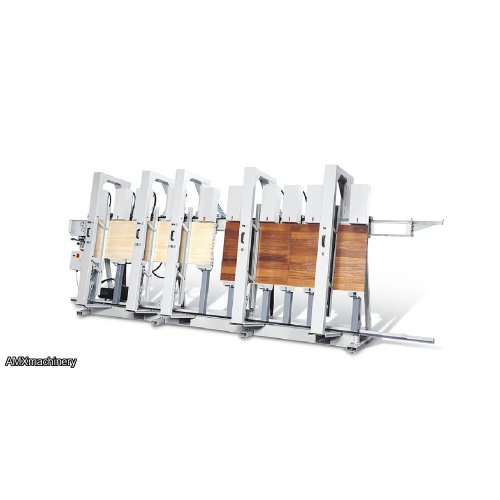

PARTE: 4ST-SL1 - PRENSA HIDRAULICA PARA PEGARHYDRAULIC PRESS FOR LAMINATED BEAMSCLASSICS FOR GLUINGIs a hydraulic press for the production of non-structural laminated beams.Its solid structure combined with its ease of setup and use make it the optimal solutionfor the production of laminated beams and blockboard panels.The working unit consists of cylinders and pressers equipped with a distributor with 2 control levers and sliding front pressers.Wide range of configuration options to suit your w...

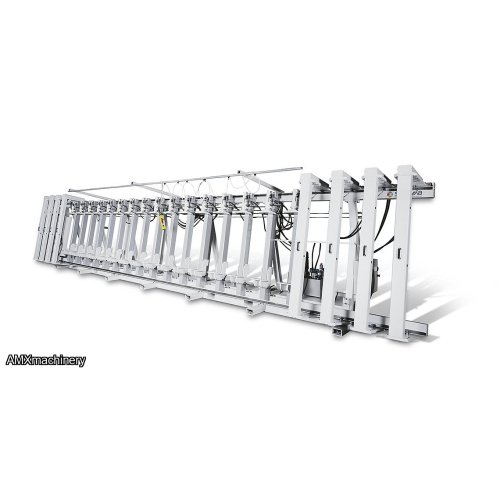

PARTE: 4ST-SL2 - PRENSA HIDRAULICA PARA PEGARHYDRAULIC PRESS FOR LAMINATED BEAMSCLASSICS FOR GLUINGIs an electro-hydraulic press for the production of structural laminated beams.Its solid structure combined with its ease of setup and use make it the optimal solutionfor the production of laminated beams and blockboard panels.The working unit consists of cylinders and pressers equipped with independent opening/closing valves,sliding front pressers and front loading and unloading thanks to the pres...

PARTE: 4ST-SL3 - PRENSA HIDRAULICA PARA PEGARHYDRAULIC PRESS FOR LAMINATED BEAMSCLASSICS FOR GLUINGIs an electro-hydraulic press for the production of structural laminated beams.Its solid structure combined with its ease of setup and use make it the optimal solutionfor the production of laminated beams and blockboard panels.The working unit consists of cylinders and pressers equipped with independent opening/closing valves,sliding front pressers and front loading and unloading thanks to the pres...

PARTE: 4ST-STROMABSTOP - TOPE LATERAL ELECTRONICOELECTRONIC MEASURING POSITIONEROPTIMISING THE CUTTING PROCESSIs our simple and sophisticated solution for turning your manual machineinto a semi-automatic resource by integrating an electronic stop which allows you to optimise the cutting process.Modular in length and reversible in position.The flexibility of configuration allows it to be combined with the Stromab cut-off machineor to any cut-off machine already installed in the workshop, to reduc...

PARTE: 4ST-TR 350 - SIERRA TRONZADORA CUT OFF SAWS WITH ASCENDING BLADECLASSIC TOOLS FOR SAWINGIs a cut off saw that was born out to meet the crosscutting needs of small and large industries.Thanks to a pneumatic saw unit drive with bimanual hand-saving control, a motor power of 3 kWand a 350 mm diameter blade it can cut up to 80 mm thick and 210 mm wide.Technical dataBlade diameter                        350 mmBlade rotation speed                   3000 rpmBlade motor p...
