PARTE: 4ST-CT600 MX - SIERRA OPTIMIZADORA - CORTES ANGULARESCROSSCUT SAW WITH AUTOMATIC PUSH-FEED FOR ANGLED CUTOPTIMISED CUTTINGIs a crosscut saw with automatic push-feed with complete optimisation and defection of the boards.Thanks to its rotating table, it is the optimal solution for all straight (90°) and angular (+/- 70°) cutting for bothsingle board and stack sawing.The new push-feed profile slides on a linear guideway and ball bearings. Rack and pinion feed system and brushless motor t...

PARTE: 4ST-CT 600 F - SIERRA OPTIMIZADORA - CORTES ANGULARESCROSSCUT SAW WITH AUTOMATIC PUSH-FEED FOR ANGLED CUTOPTIMISED CUTTING AND NOTCHING Is a crosscut saw with automatic push-feed with complete optimisation and defection of the boards.Thanks to its rotary table, it is the optimal solution for all straight (90°) and angular (+/- 70°) cutting for bothsingle board and stack sawing.The push-feed is designed with a rack and pinion feed system and brushless motor to guarantee maximum cutting ...

PARTE: 4ST-US800 - CENTRO DE CORTE PARA TABLONESAUTOMATIC BEAM PROCESSING CENTRECOMPOUND CUTTING FOR LARGE SECTIONSIs the cutting centre for large-section beams, making it the optimal solution in carpentry and timber frame construction.Thanks to an electronically controlled 5-axis technology, it satisfies all straight, tilting and compound cutting requirements.It guarantees maximum processing speed and finished product quality, reducing labour and maximising production.Can process beams of any l...

PARTE: 4ST-MV 520 - CENTRO DE CORTE 5 EJESProductivity, precision, automation.Is designed for manufacturers of timber-framed houses and TRUSS trusseswho require speed, repeatability and digital integration.5-axis technology for complex cutsThe cutting unit rotates 360° and tilts ±90°, easily performing:- Straight cuts- Angled cuts- High-precision compound cutsPerfect for beams and structural components with variable geometries.Patented handling for maximum speedThe independent dual-belt clamp...

PARTE: 4ST-US 10 - SIERRA RADIAL UNIVERSALWas built to meet the needs of cutting large sections in combination with blade tilting and arm rotation.All machine movements, tilting, rotation and blade feed are manually controlled by the operator.The machine's fixed zero point ensures that both rotation and tilting are always dimensionally stablewith respect to the length indicated on the measuring system.With a blade diameter of 350 mm and a motor power of 3 kW, it can cut up to 100 mm thickness an...

PARTE: 4ST-US 11 - SIERRA RADIAL UNIVERSALWas built to meet the needs of cutting large sections in combination with blade tilting and arm rotation.All machine movements, tilting, rotation and blade feed are manually controlled by the operator.The machine's fixed zero point ensures that both rotation and tilting are always dimensionally stablewith respect to the length indicated on the measuring system.With a blade diameter of 500 mm and a motor power of 4 kW, it can cut up to 175 mm thickness an...

PARTE: 4ST-US 12 - SIERRA RADIAL UNIVERSALWas built to meet the needs of cutting large sections in combination with blade tilting and arm rotation.All machine movements, tilting, rotation and blade feed are manually controlled by the operator.The machine's fixed zero point ensures that both rotation and tilting are always dimensionally stablewith respect to the length indicated on the measuring system.With a blade diameter of 550 mm and a motor power of 4 kW, it can cut up to 200 mm thickness an...

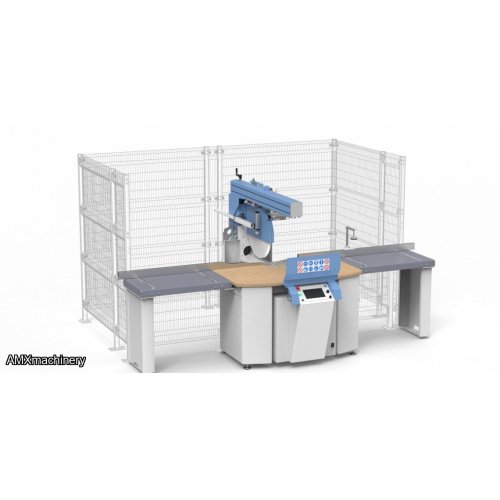

PARTE: 4ST-US 30 - SIERRA RADIAL UNIVERSALIs built to meet the needs of cutting large sections in combination with blade tilting and arm rotation.All machine movements, tilting, rotation and blade feed are electronically controlled.The machine software has a simple and intuitive interface based on a touch screen monitor for programmingand configuration, as well as being able to directly import files in .BTL format.Machining optimisation is performed by the machine control to reduce scrap and opt...

PARTE: 4ST-US 30 MX -  SIERRA RADIAL UNIVERSALWith integrated electronic stop, is designed to meet the needs of cutting large sections in combination with blade tilting and arm rotation.All machine movements, tilting, rotation, blade feed and electronic stop are electronically controlled.Electronic stop positioning via precision rack and pinion, brushless motor and planetary gearbox.The machine software has a simple and intuitive interface based on a touch screen monitor for programmingand con...

PARTE: 4ST-RS 650S - SIERRA RADIALWith its cast iron frame offers versatility, cutting precision and functionality for all different types of joinery material.Thanks to a blade diameter 350 mm and a motor power of 3 kW allows you to cutup to 100 mm thick and 600 mm wide.Technical specifications Cutting unit Blade diameter350 mmBlade rotation speed3000 rpmBlade motor powerkW 3 (HP 4)Blade feedingManualBlade inclination0° -45°Blade rotation-45° +45°Max operating pressure6-8 barExtraction ou...

PARTE: 4ST-RS 750S - SIERRA RADIALWith its cast iron frame offers versatility, cutting precision and functionality for all different types of joinery material.Thanks to a blade diameter 350 mm and a motor power of 3 kW allows you to cutup to 100 mm thick and 750 mm wide.Technical specifications Cutting unit Blade diameter350 mmBlade rotation speed3000 rpmBlade motor powerkW 3 (HP 4)Working table height900 mmBlade feedingManualBlade inclination0° -45°Blade rotation-45° +45°Max operating pre...

PARTE: 4ST-RS 900 - SIERRA RADIALWith its cast iron frame offers versatility, cutting precision and functionality for all different types of joinery material.Thanks to a blade diameter 350 mm and a motor power of 3 kW allows you to cutup to 100 mm thick and 890 mm wide.Technical specifications Cutting unit Blade diameter350 mmBlade rotation speed3000 rpmBlade motor powerkW 3 (HP 4)Working table height900 mmBlade feedingManualBlade inclination0° -45°Blade rotation-45° +45°Max operating pre...

PARTE: 4ST-RS 900 S - SIERRA RADIALWith its cast iron frame offers versatility, cutting precision and functionality for all different types of joinery material.Thanks to a blade diameter 400 mm and a motor power of 4 kW allows you to cutup to 120 mm thick and 900 mm wide.Technical specifications Cutting unit Blade diameter400 mmBlade rotation speed3000 rpmBlade motor powerkW 4 (HP 5,5)Working table height900 mmBlade feedingManualBlade inclination0° -45°Blade rotation-45° +45°Max operating ...

PARTE: 4ST-PS 45 F - SIERRA DE PENDULOFixed head, designed to offer versatility and functionality in cutting all different typesof packaging material.Thanks to a blade diameter 450 mm and a motor power of 4 kW allows you to cutup to 130 mm thick and 510 mm wide.Technical specifications Cutting unit Blade diameter450 mmBlade rotation speed2800 rpmBlade motor powerkW 4 (HP 5,5)Working table height880 mmBlade feedingManualExtraction outlets1 x Ø150 mmNet weight250 kg

PARTE: 4ST-PS 50 F - SIERRA DE PENDULOFixed head, designed to offer versatility and functionality in cutting all different typesof packaging material.Thanks to a blade diameter 500 mm and a motor power of 5.5 kW allows you to cutup to 145 mm thick and 510 mm wide.Technical specifications Cutting unit Blade diameter500 mmBlade rotation speed2800 rpmBlade motor powerkW 5 (HP 7,5)Working table height880 mmBlade feedingManualExtraction outlets1 x Ø150 mmNet weight260 kg

PARTE: 4ST-PS 50/O - SIERRA DE PENDULOWith head rotation is designed to offer versatility and functionality in cutting all different typesof packaging material.Thanks to a blade diameter 500 mm and a motor power of 5.5 kW allows you to cutup to 145 mm thick and 510 mm wide.Technical specifications Cutting unit Blade diameter500 mmBlade rotation speed2800 rpmBlade motor powerkW 5 (HP 7,5) trifaseWorking table height880 mmBlade feedingManualBlade rotation-45° 0° +60°Extraction outlets1 x Ø150...

PARTE: 12729 - VIRUTERA - COLOR BLANCO Usada - Buenas condiciones Motor Eléctrico 2 cabezas La caja tiene 30" de largo y 20" de ancho Produce como 5 yardas la hora

PARTE: 12729 - VIRUTERA - HUTTO MINI - COLOR VERDE Usada - Buenas condiciones Motor Gasolina Produce como 5 yardas la horaNota:Junto con la otra maquina en existencia:Las 2 máquinas se tienen conectadas con un conveyor que de la blanca se va a la verde Las 2 máquinas juntas hacen como 35 bolsas la hora

PARTE: 3HO-MH2324A B - ARMADORA DE PUERTASModel Choice Simplified(Single-Side): Compact footprint for workshops(Double-Side): Dual-station for high-volume outputModel（single side）（double sides）Maximum Assembling Size2470*1270*100mm 2470*1270*100mmUp-press Oil Cylinder Diameter  50*150st*4*1 50*150st*4*2Side-press Cylinder Diameter 50*150st*2*1 50*150st*2*2Front Pneumatic Cylinder 50*150st*3*1 50*150st*3*2Hydraulic Pressure  7Mpa 7MpaPneumatic Pressure 0.6-0.8Mpa 0.6-0.8MpaOi...

PARTE: 3HO-HT50T - MAQUINA DE PRENSADO FRIO
